Transom Window Operator Choice Of Finish (M-35TW)
Price: $125.00
Quantity:
Add to cart
Add to cart

Options:
Polished Brass
Antique Brass Finish
Polished Nickel Finish
Satin Nickel
Oil Rubbed Bronze Finish
96" Tall Operator in Polished Brass
96" Tall Operator in Antique Brass Finish
96" Tall Operator in Oil Rubbed Bronze Finish
Transom Window Operator Choice Of Finish (M-35TW)

M-35TW  Polished Unlacquered Brass 51" Transom Window Operator
M-DK35TW  Antique Brass Finish 51" Transom Window Operator
M-N35TW  Polished Nickel 51" Transom Window Operator
M-SN35TW  Satin Nickel 51" Transom Window Operator
M-OB35TW  Oil Rubbed Bronze Finish 51" Transom Window Operator

New!  Transom Window Operator with 96"Length in Three Finishes:

M-35TW/96  Polished Unlacquered Brass 96" Tall Transom Window Operator
M-DK35TW/96  Antique Brass Finish 96" Tall Transom Window Operator
M-OB35TW/96  Oil Rubbed Bronze Finish 96" Tall Transom Window Operator

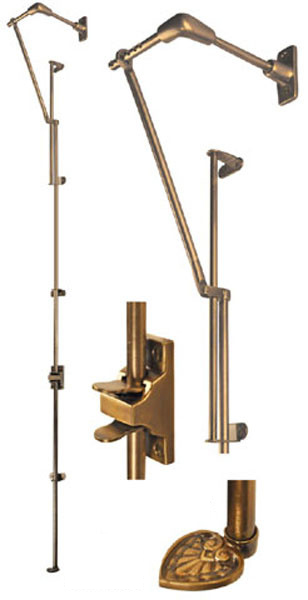

Quality high-end transom window operator.  The parts are either extruded brass or "lost wax cast" brass.

The window arm, (the part that mounts onto the window), has 5 positions of offset adjustment & can be adjusted from 2 ½" to 4 ¼" away from the operator shaft.

Details:

  • Length:  51" for the regular size operator.
  • Main shaft is 38" diameter.
  • Lock is squeeze tab with heavy duty steel spring.
  • Materials:  All parts are brass & very attractive.

Use the "Options" menu above to select yellow brass, antiqued brass, oil rubbed bronze, or nickel plated.

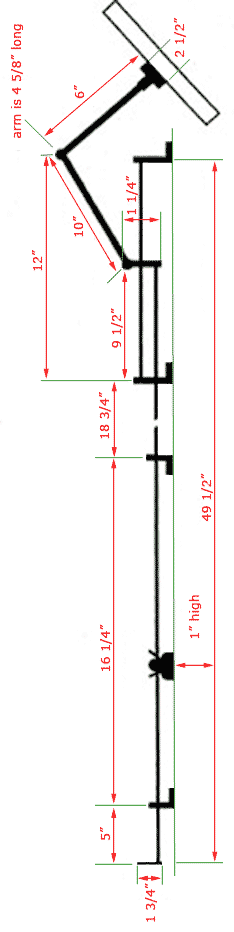

Click here to view, print, or download the Adobe PDF measurement diagram for the M-35TW

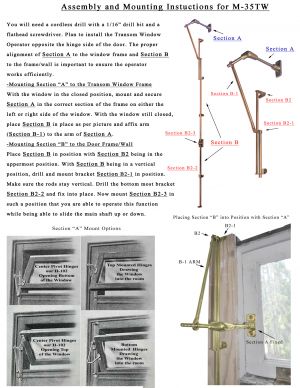

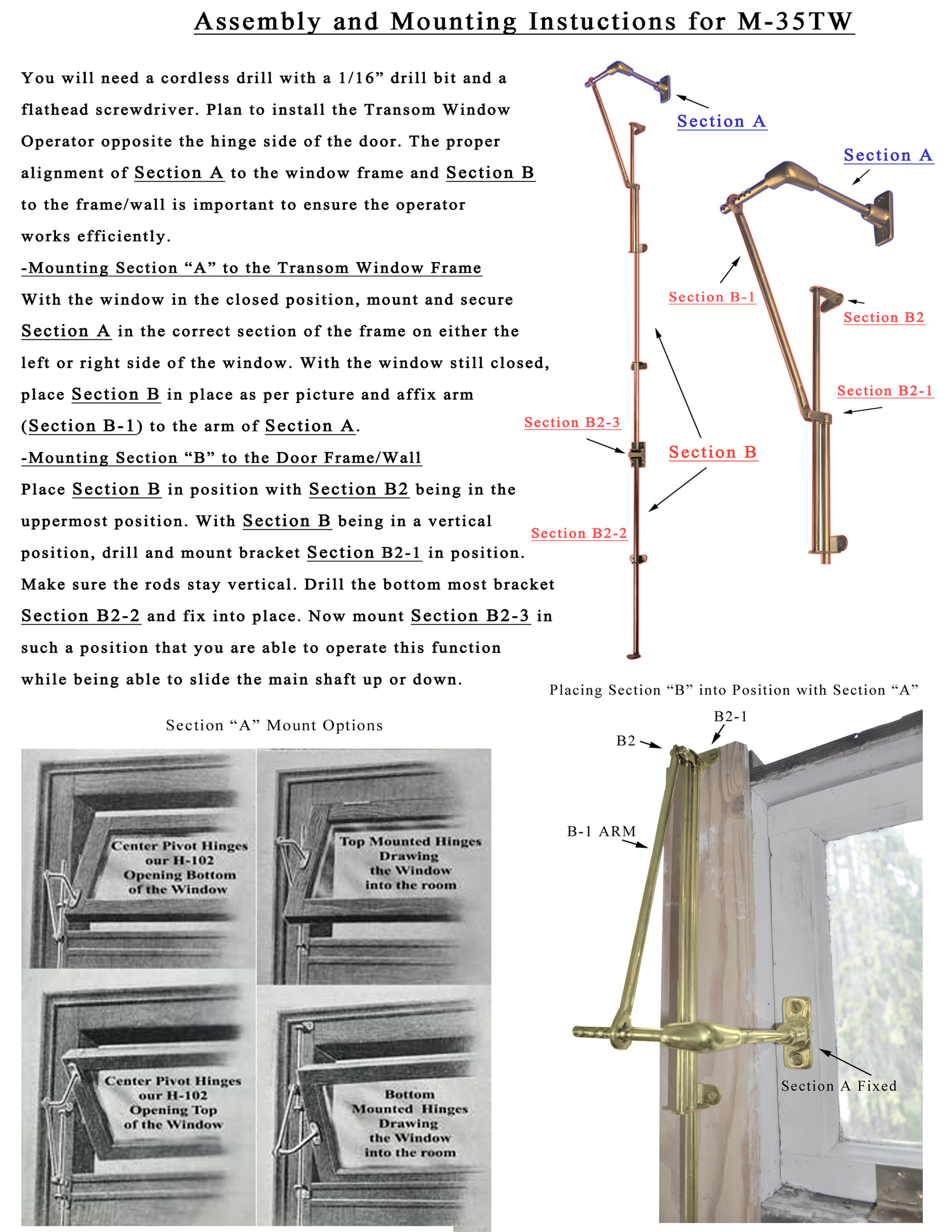

Click here to view, print or download the Transom Install Instructions

We also offer an extra-long transom window operator measuring 96" for projects requiring a taller operator.  Use the "Options" menu above for pricing on the longer transom window operator.

Related products include our transom window pivot hinges, and a window or casement stay.
