Art Deco Style Double or French Door Plate Set Entry Mortise Lockset (Z375DBS1)
Price: $1683.00

Options:

Polished Unlacquered Brass
Antique Brass Finish
Nickel Plated

Cylinder Length:

L-9CC 1" Cylinder
L-9C4 1 1/4" Cylinder
L-150S 1 1/2" Cylinder
L-175S 1 3/4" Cylinder

Set Door Handing:

Left Hand
Right Hand
Art-Deco-Double-Door-Plate-Entry-Mortise-Set-(Z375DBS1)

Move mouse over image to Zoom..

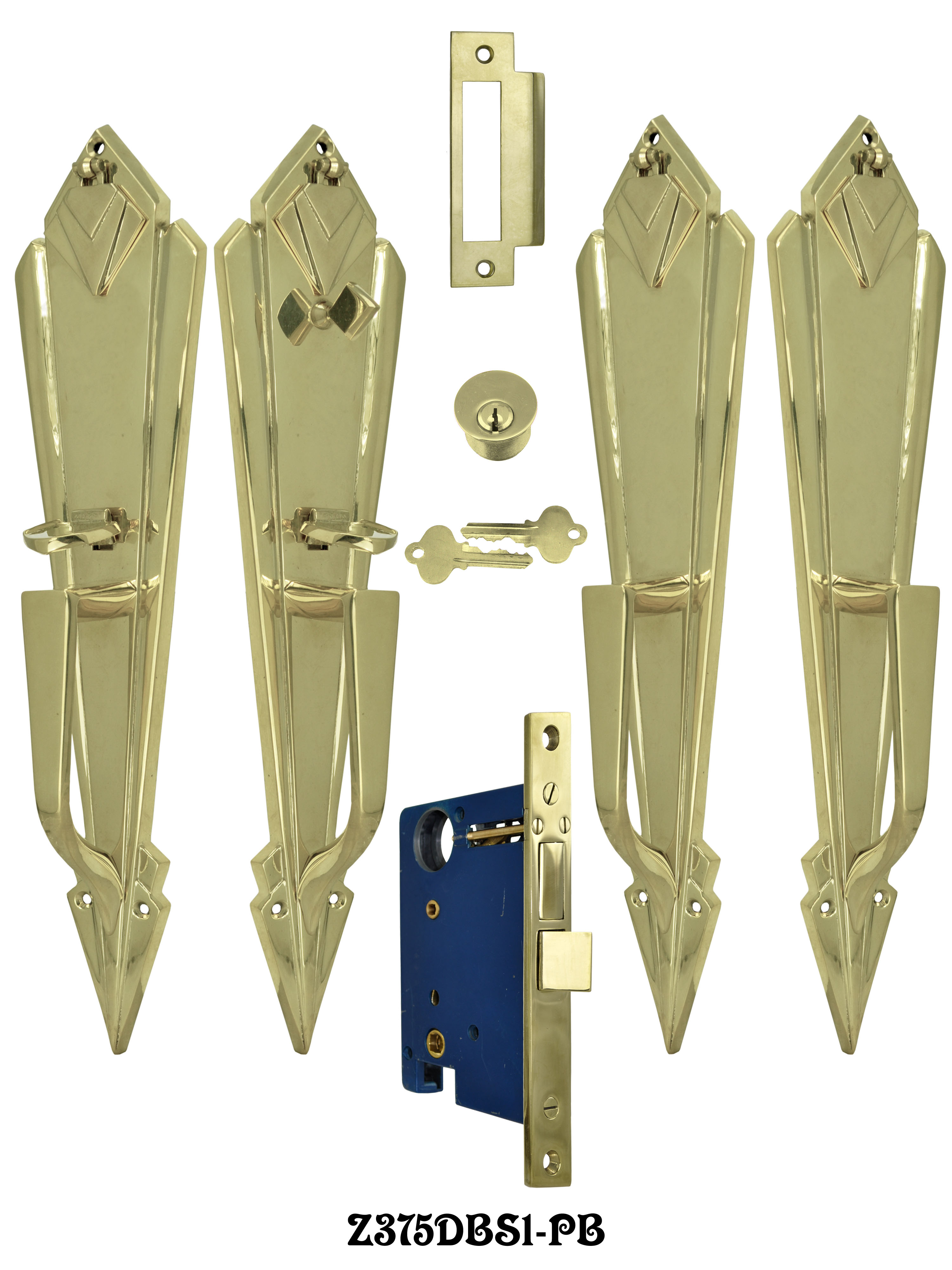

Z375DBS1-PB  Polished Unlacquered Brass Art Deco Style Double Door or French Door Entry Mortise Set {PICTURED}

Z375DBS1-DK  Antique Brass Finish Art Deco Style Double Door or French Door Entry Mortise Set

Z375DBS1-NP  Nickel Plated Art Deco Style Double Door or French Door Entry Mortise Set

Great Art Deco thumblatch door set!  The cylinder lock is protected behind a decorative cover that lifts open, located at the top of the backplate.

Available in Polished Unlacquered Brass, Antique Brass Finish, or Nickel Plated brass.

The Complete Door Set Includes:

  • One Interior Thumblatch Door Plate with Turnlatch Function
  • One Exterior Thumblatch Door Plate
  • Two "Handle Only" Dummy Door Plates
  • One Mortise Lock
  • One Cylinder Lock:  Please see our Lock Cylinder Size Chart to determine the correct cylinder length for your door.

Measurements:

  • Door Plates:  16 ½" tall x 3 ¾" wide x 2 18" deep.
  • Lock Measurements:
    • Lock body measures 5 ½" tall by 3 58" deep.  1316" thickness.
    • Backset:  2 ½", including the thickness of the face plate.
    • Lock Face:  1" wide by 7 ½" long.
    • Catch Plate:  4 78" long by 1 78".
    • Distance from the center of the cylinder receiver to the thumb latch stem is 4 ¾".
    • Distance from the center of the bolt throw hole to the center of the door knob spindle hole is 2 ½".

Please see our Lock Cylinder Size Chart to determine the correct cylinder length for your door.

Mounting screws are provided for all pieces of hardware in this set.

A similar door set for Single Entry Doors is also listed on our website.

To stabilize and secure the dummy (or inactive) side of your double doors, we offer a number of Antique Reproduction Door Security Bolts on our website.






Customers who bought this item also bought:

Art Deco Door Grille Or Speakeasy or Peephole Set - Choice Of Finish (ZLW-26DEC)
Previous1 of 2Next

Price: $147.40
Art Deco Door Plate Entry Mortise Set (Z375SET1)
Previous1 of 2Next

Price: $968.00
Art Deco Door Plate Entry Mortise Set (Z375SET1-NP)
Previous1 of 3Next

Price: $1036.00

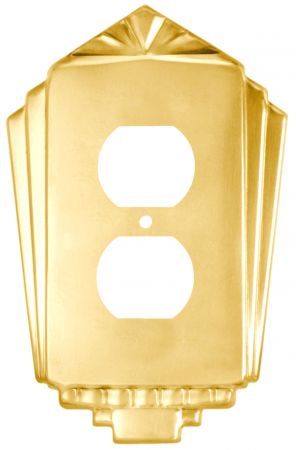

Art Deco Style Plug Outlet Cover (L-W31)

Price: $16.59

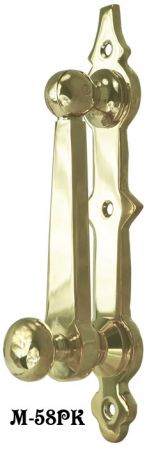

Elegant Brass Doorknocker - Choice Of Finish (M-58PK)

Price: $48.10
French Door Bolt - 12" Long Surface Bolt With Catches - Choice Of Finish (M-1312)

Price: $51.95

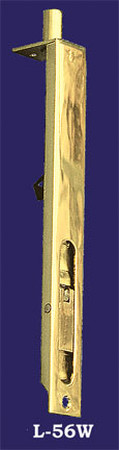

Half Mortise Slide Bolt 1" X 8" (L-56W)

Price: $29.84

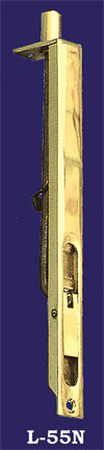

Narrow Mortise Slide Bolt 3/4" X 8" (L-55N)
