Arts & Crafts Hammered Copper Mortise Lock 2 1/2" Backset (ZC-9SP/DL)
Price: $395.00
Out of stock.
Call for availability.

Out of stock.
Call for availability.


Options:
Doorknobs on Both Sides of Door
Thumblatch/Doorknob
Two Thumblatches

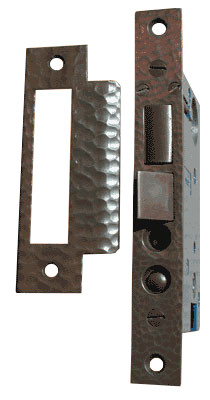

Arts & Crafts Hammered Copper Mortise Lock 2 1/2

ZC-9SP/DL Arts & Crafts Style Mortise Lock 2 1/2" Backset for when you have a THUMB LATCH TO THUMB LATCH, on both sides of the door.

This lovely Arts & Crafts style lock set has hammered copper face plate and catchplate, hammered-by-hand, with antique patina to match our Arts & Crafts hardware. The finish is dark, as shown. There are three versions of this lock to work with our Arts & Crafts style hardware.

Also available is the ZC-9SP. This lock is used on an entry door, since it has a cylinder lock, when DOORKNOB TO DOORKNOB, both sides of the door.

Please note lock cylinder (pictured) and lock spindle are sold separately. See our Lock Cylinder Size Chart to select the correct cylinder length for your door.  Our cylinder part numbers are: L-9CC (1"), L-9C4 (1 1/4"), L-150S (1 1/2"), and L-175S (1 3/4").

Lock body measures 5 1/2" tall by 3 5/8" deep, and is 13/16" thick.

Lock face is 1" wide by 7 1/2" long.

Center of the lock cylinder to the center of the door knob spindle hole is 3 3/4".

Backset is 2 1/2", including the thickness of the face plate.

Distance from the center of the bolt throw hole to the center of the door knob spindle hole is 2 1/2".

Catch plate is 4 7/8" long by 1 7/8".

Product dimension cut sheet can be found here.

The Pacific Pattern mission thumblatch door plate is , as well as our Field Pattern hammered copper Arts & Crafts thumblatch door plate .

If you have a double door, or would just like the extra bolt functionality on your single entry door, we suggest using the following popular door bolts:
