Vintage Hardware & Lighting

Solid Brass Tubular Passage Door Set (L146PSET1)
Price: $140.39

Finish Option:

Polished Unlacquered Brass
Antique Brass Finish
Nickel Plated Finish
Oil Rubbed Bronze Finish

Move mouse over image to Zoom..

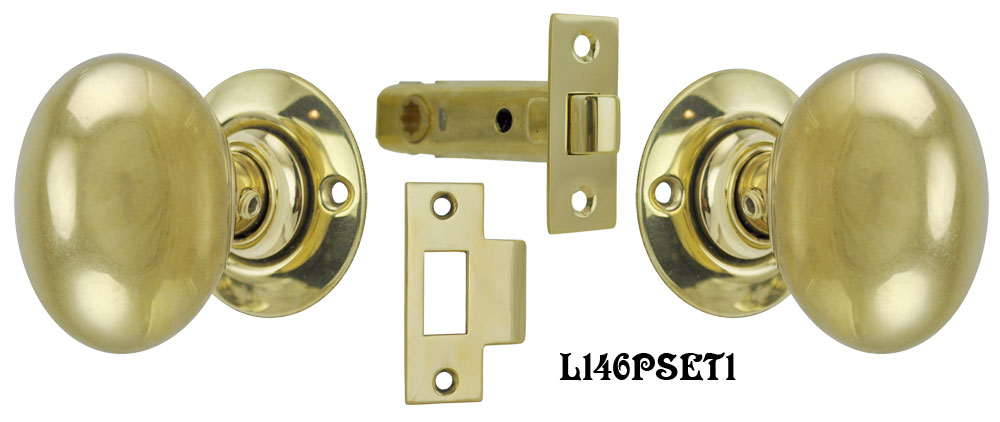

L146PSET1  Polished Unlacquered Solid Brass Tubular Passage Door Set {PICTURED}

LDK146PSET1  Antique Brass Finish Solid Brass Tubular Passage Door Set

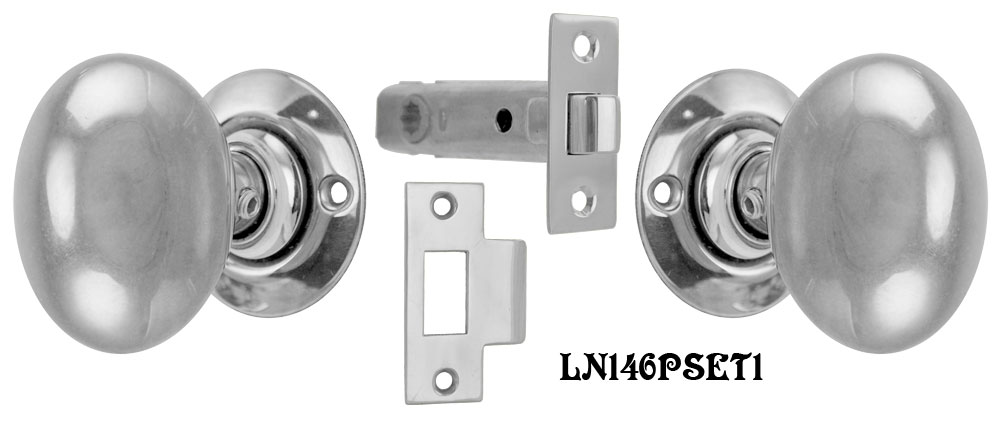

LN146PSET1  Nickel Plated Solid Brass Tubular Passage Door Set {PICTURED}

LOB146PSET1  Oil Rubbed Bronze Finish Solid Brass Tubular Passage Door Set

This is an interior non-locking passage set.

The Set Includes:

  • Two Rosettes
  • Two Doorknobs with the Connecting Spindle
  • One Tubular Passage Latch


  • Rosettes:  2 18" diameter overall.
  • Oval Doorknobs:  2 38" tall x 1 916" wide; each projects 2 38".
  • Passage Latch:
    • Backset:  2 38"
    • Latch Face:  1" x 2 ¼"
    • Catch Plate: 1" wide x 2 ¾" tall.
    • Latch can be installed by drilling a 7/8" hole, then recessing the wood for the latch face.

Mounting screws are included for each item in this set.
