Victorian Rococo Yale Pattern with Lever Handle Entry Door Set(L15SET3)
Price:$477.60
Quantity:
Add to cart
Add to cart

Choose Lever Handle:
L15SET3
L15SET4
L15SET5
Cylinder Length:
L-9CC 1" Cylinder
L-9C4 1 1/4" Cylinder
L-150S 1 1/2" Cylinder
L-175S 1 3/4" Cylinder
Set Door Handing
:
Right Hand

Left Hand

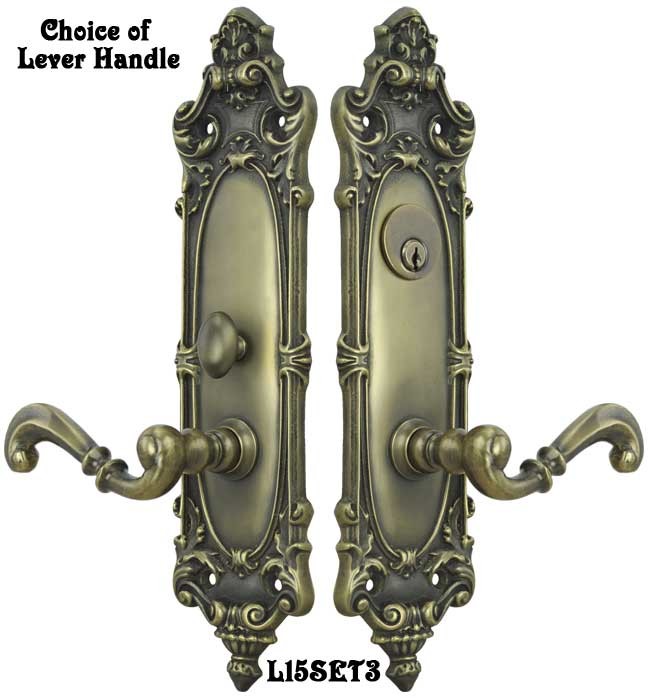

Victorian Rococo Yale Pattern with Lever Handle Entry Door Set(L15SET3)

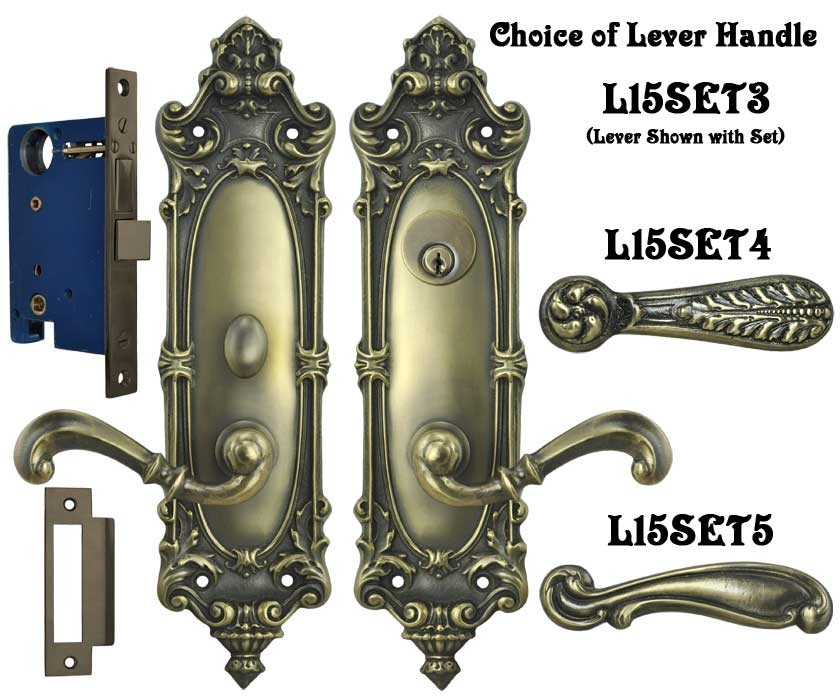

*Please See Second Photo for Lever Handle Options; Make Choice in Options Menu Above*

Victorian Rococo Yale Pattern with Lever Handle Entry Door Set

Beautiful Yale Pattern of the Rococo Revival Victorian era, complete with your choice of lever handle.  Made out of solid yellow brass with the fine details retained throughout by our lost wax casting process.

This complete door set is hand finished in our Antique Brass Finish.

The complete door set includes:

1.  One Interior Door Plate with Turnlatch Function

2.  One Exterior Door Plate

3.  One Mortise Entry Lock

4.  Two Lever Handles with Connecting Spindle

5.  One Cylinder Lock. See our Lock Cylinder Size Chart to select the correct cylinder length for your door.

Measurements:

Door Plates:  3 3/8" wide by 12 1/2" long.

Lever Handles:

SET3:  4 3/8" long; projects 2 3/8".  Diameter of base 3/4".

SET4:  3 3/4" handle length x 1 " width by 2 1/4" projection.  Diameter of base 5/8".

SET5:  4 3/8" handle length x 1 " width; 2 1/8" projection.  Diameter of base 5/8".

Lock body measures 5 1/2" tall by 3 5/8" deep.  13/16" thickness.

Lock face is 1" wide by 7 1/2" long.

Backset is 2 1/2", including the thickness of the face plate.

Distance from the center of the bolt throw hole to the center of the door knob spindle hole is 2 3/8".

Catch plate is 4 7/8" long by 1 7/8".
