Victorian Scroll Pattern Door Plate Passage Set with Locking Turnlatch (L18PTSET2)
Price: $219.79

Quantity:
Add to cart
Add to cart

Options:
Polished Unlacquered Brass
Antique Brass Finish
Oil Rubbed Bronze Finish
Victorian Scroll Pattern Door Plate Passage Set with Locking Turnlatch  (L18PTSET2)
alternate view 0alternate view 1

Victorian Scroll Pattern Tubular Door Set
with Locking Privacy Turnlatch - 2 38" Backset

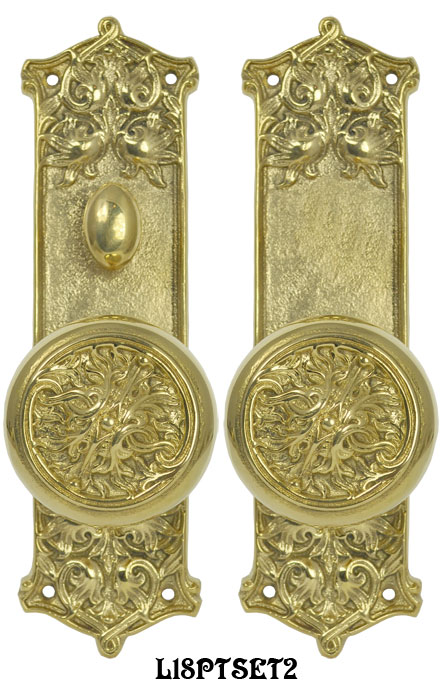

L18PTSET2-PB  Polished Unlacquered Brass Victorian Scroll Pattern Door Set with Locking Turnlatch {PICTURED}

L18PTSET2-DK  Antique Brass Finish Victorian Scroll Pattern Door Set with Locking Turnlatch

L18PTSET2-OB  Oil Rubbed Bronze Finish Victorian Scroll Pattern Door Set with Locking Turnlatch

This lovely Victorian Scroll Pattern set is cast in solid brass.

This set is an interior privacy set that locks from one side using a turnlatch.  Ideal for those who don't want to mortise out a door for a full mortise box.  Instead, this set comes with a tubular passage latch and a tubular deadbolt.

This complete door set is available in Polished Unlacquered Brass {Pictured}, or hand-finished in our Antique Brass Finish.  Also available in our matte black Oil Rubbed Bronze Finish.

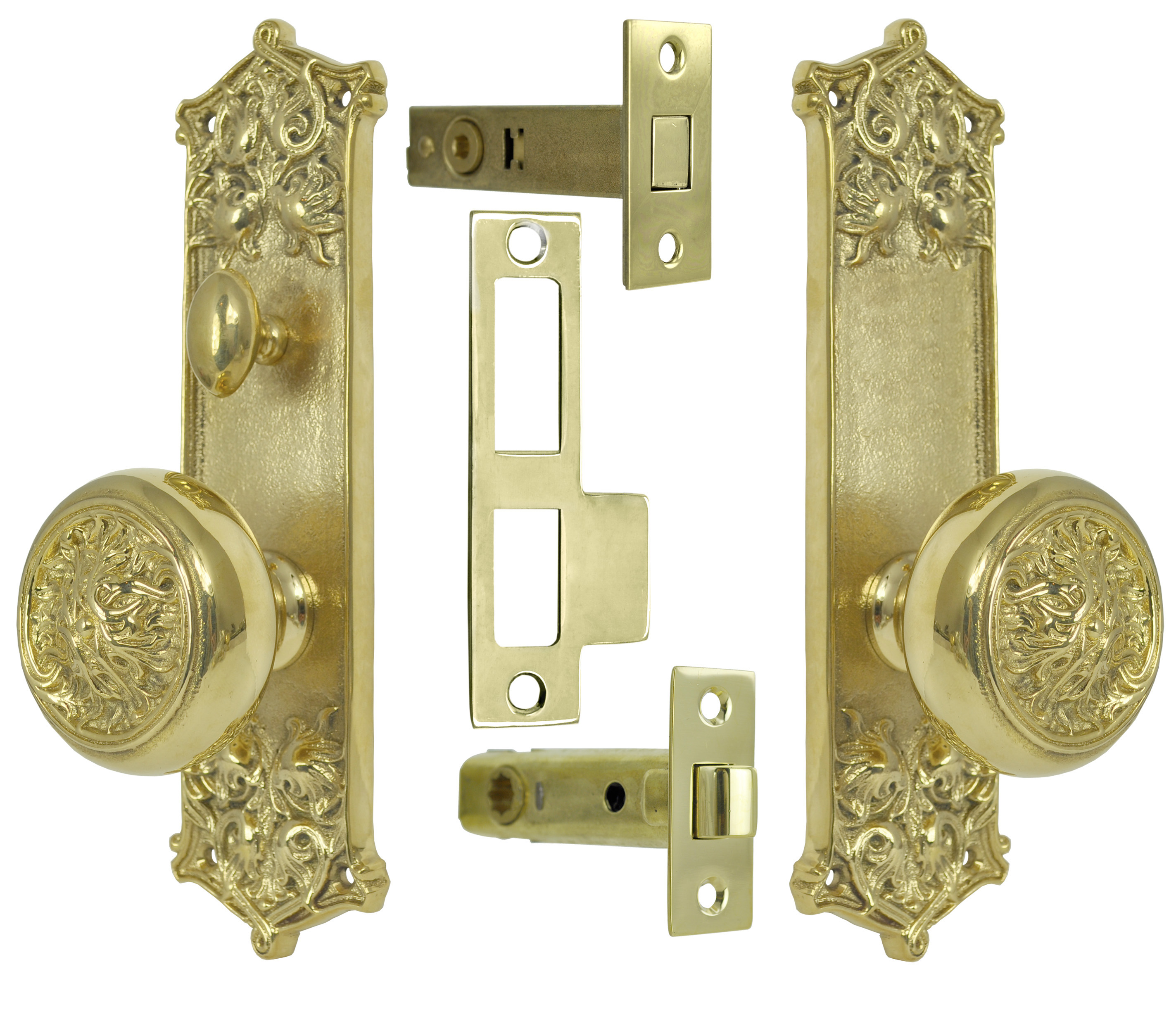

The Set Includes:

  • One Door Plate with Lower Knob Only Function
  • One Door Plate with Knob and Turnlatch Function
  • Two Doorknobs with the Connecting Spindle
  • One Tubular Passage Latch
  • One Tubular Deadbolt Latch
  • One Catchplate for Both Deadbolt and Passage Latch

Measurements:

  • Door Plates:  2 38" wide by 8 ½" tall.
  • Doorknobs:  2 ¼" diameter.  Each projects 2 ¼".
  • Passage Latch:
    • Face Plate:  1" wide x 2 ¼" tall.
    • Backset:  2 38"
    • Latch can be installed by drilling a 7/8" hole, then recessing the wood for the latch face.
  • Tubular Deadbolt:
    • Face Plate:  1 116" wide x 2 ¼" tall.
    • Case Length:  3 ¼" overall.
    • Backset:  2 38"
  • Catchplate:  4 ½" tall x 1" wide (minus tongue).

Mounting screws are included with all pieces of hardware in this set.
