Louis Style Door Plate Passage Set with Fancy Scroll Design Doorknobs and Locking Turnlatch Mortise (L19MTSET2)
Price:$255.70
Quantity:
Add to cart
Add to cart

Options:
Polished Brass with 2 ¼" Backset
Polished Brass with 2 ⅝" Backset
Antique Brass Finish with 2 ¼" Backset
Antique Brass Finish with 2 ⅝" Backset
Oil Rubbed Bronze Finish with 2 ¼" Backset
Oil Rubbed Bronze Finish with 2 ⅝" Backset
Set Door Handing
:
Right Hand

Left Hand

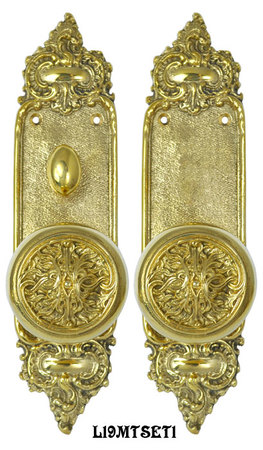

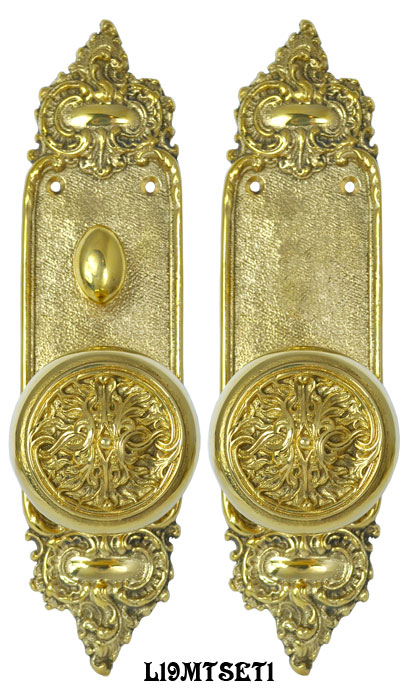

Louis Style Door Plate Passage Set with Fancy Scroll Design Doorknobs and Locking Turnlatch Mortise (L19MTSET2)

French Louis Style Interior Privacy Door Set with Fancy Scroll Design Doorknobs & Turnlatch Mortise Lock

L19MTSET2-PB1  Polished Unlacquered Brass Door Set with 2 ¼" Backset Mortise Lock
L19MTSET2-PB2  Polished Unlacquered Brass Door Set with 2 58" Backset Mortise Lock

L19MTSET2-DK1  Antique Brass Finish Door Set with 2 ¼" Backset Mortise Lock
L19MTSET2-DK2  Antique Brass Finish Door Set with 2 58" Backset Mortise Lock

L19MTSET2-OB1  Oil Rubbed Bronze Finish Door Set with 2 ¼" Backset Mortise Lock
L19MTSET2-OB2  Oil Rubbed Bronze Finish Door Set with 2 58" Backset Mortise Lock

Lovely French Louis design doorset.  Solid yellow brass, with fine details retained through lost wax casting.

The complete door set is available in Polished Unlacquered Brass (which will develop a natural patina over time, just like the original Victorian hardware), or our hand-finished, mellow brown, Antique Brass Finish (pictured).  Also available in our matte black Oil Rubbed Bronze Finish.

This Interior Mortise Privacy Set locks from one side using a turnlatch.

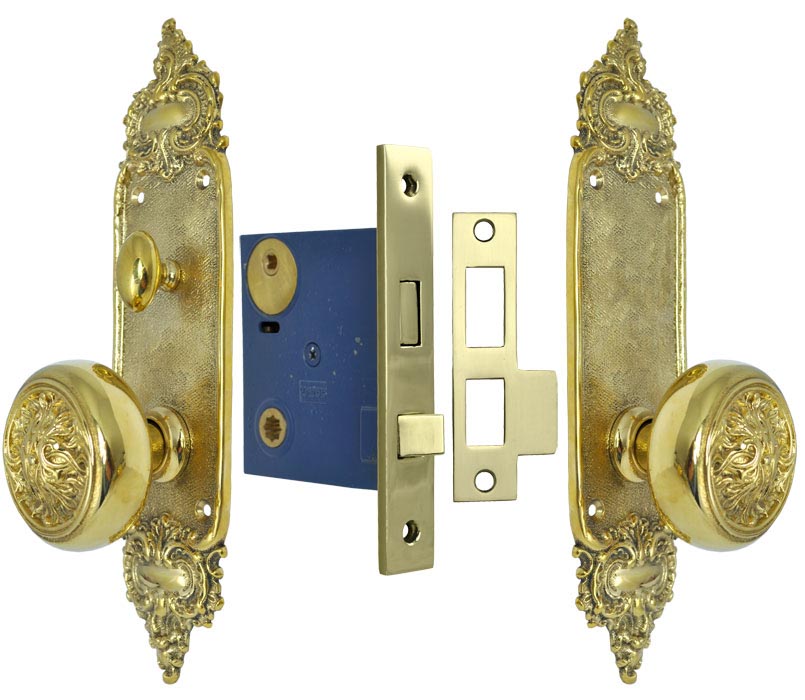

Each Set Includes:

  • 1 Door Plate with Lower Doorknob Only Function
  • 1 Door Plate with Lower Doorknob & Turnlatch Function
  • 2 Doorknobs with the Connecting Spindle
  • 1 Mortise Lock with Turnlatch Function (choice of 2 ¼" or 2 58" backset)

Measurements:

  • Door Plates:  2 ½" wide x 9 ¾" tall.
  • Doorknobs:  2 ¼" diameter; each projects 2 ¼".
  • Mortise Locks:
    • 2 ¼" Backset Lock:
      • Lock Body:  3 ¾" tall x 2 78" deep x 58" thick.
      • Faceplate:  1" wide x 6" tall; 316" thick.
      • Strike Plate:  4 ½" tall x 1" wide (plus tongue).
      • Distance from the center of the turnlatch receiver to the center of the doorknob spindle hub is 2 ½".
    • 2 58" Backset Lock:
      • Lock Body:  3 ¾" tall x 3 316" deep, and 58" thick.
      • Faceplate:  1" wide x 6" tall; 316" thick.
      • Strike Plate:  4 ½" tall x 1" wide (plus tongue).
      • Distance from the center of the turnlatch receiver to the center of the doorknob spindle hub is 2 ½".

Mounting screws for all hardware will be supplied.
