Louis Style Door Plate Passage Set with Locking Turnlatch (L19PTSET2)
Price: $225.49

Options:

Polished Unlacquered Brass
Antique Brass Finish
Oil Rubbed Bronze Finish
Louis-Style-Door-Plate-Passage-Set-with-Locking-Turnlatch-(L19PTSET2)

Move mouse over image to Zoom..

French Louis Style Plates & Scroll Design Doorknobs
Tubular Door Set with Locking Privacy Turnlatch - 2 38" Backset

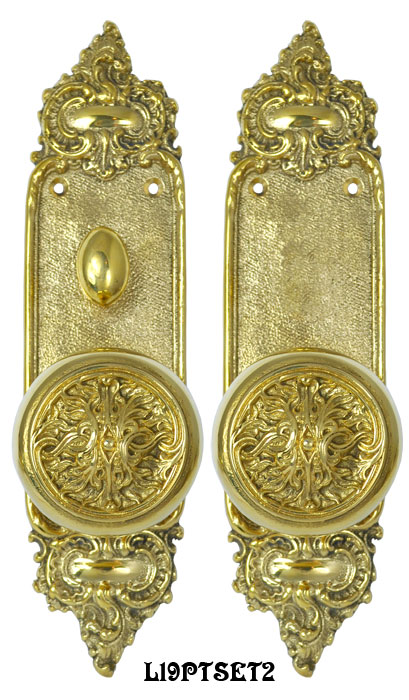

L19PTSET2-PB  Polished Unlacquered Brass French Louis Door Set with Locking Turnlatch {PICTURED}

L19PTSET2-DK  Antique Brass Finish French Louis Door Set with Locking Turnlatch

L19PTSET2-OB  Oil Rubbed Bronze Finish French Louis Pattern Door Set with Locking Turnlatch

This lovely door set has French Louis style doorplates paired with Victorian scroll design doorknobs, all cast in solid brass.

This set is an interior privacy set that locks from one side using a turnlatch.  Ideal for those who don't want to mortise out a door for a full mortise box.  Instead, this set comes with a tubular passage latch and a tubular deadbolt.

This complete door set is available in Polished Unlacquered Brass {Pictured}, or hand-finished in our Antique Brass Finish.  Also available in our matte black Oil Rubbed Bronze Finish.

The Set Includes:

  • One Door Plate with Lower Knob Only Function
  • One Door Plate with Knob and Turnlatch Function
  • Two Doorknobs with the Connecting Spindle
  • One Tubular Passage Latch
  • One Tubular Deadbolt Latch
  • One Catchplate for Both Deadbolt and Passage Latch

Measurements:

  • Door Plates:  2 ½" wide by 9 ¾" tall.
  • Doorknobs:  2 ¼" diameter.  Each projects 2 ¼".
  • Passage Latch:
    • Face Plate:  1" wide x 2 ¼" tall.
    • Backset:  2 38"
    • Latch can be installed by drilling a 7/8" hole, then recessing the wood for the latch face.
  • Tubular Deadbolt:
    • Face Plate:  1 116" wide x 2 ¼" tall.
    • Case Length:  3 ¼" overall.
    • Backset:  2 38"
  • Catchplate:  4 ½" tall x 1" wide (minus tongue).

Mounting screws are included with all pieces of hardware in this set.






Customers who bought this item also bought:

French Louis Style Door Plate Set with Scroll Design Doorknobs and Locking Keyed Mortise (L19MKKSET2)
Previous1 of 3Next

Price: $231.40

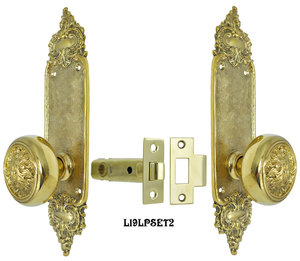

Louis Style Door Plate Low Knob Passage set (L19LPSET2)
Previous1 of 2Next

Price: $185.25

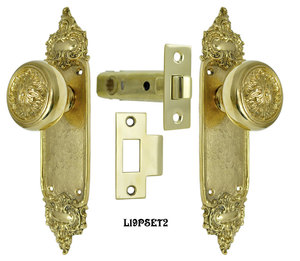

Louis Style Door Plate Passage set (L19PSET2)
