L49PTSET Modern Beaded Edge Door Plate Tubular Passage Set with Locking Turnlatch
Great Acanthus Style Door set. Available in Polished Unlacquered Brass and Antiqued Brass
This interior passage set locks from one side using a turnlatch. This set is for those who don't want to mortise out a door for a full mortise box. Instead, this set comes with a tubular passage latch and a tubular deadbolt.

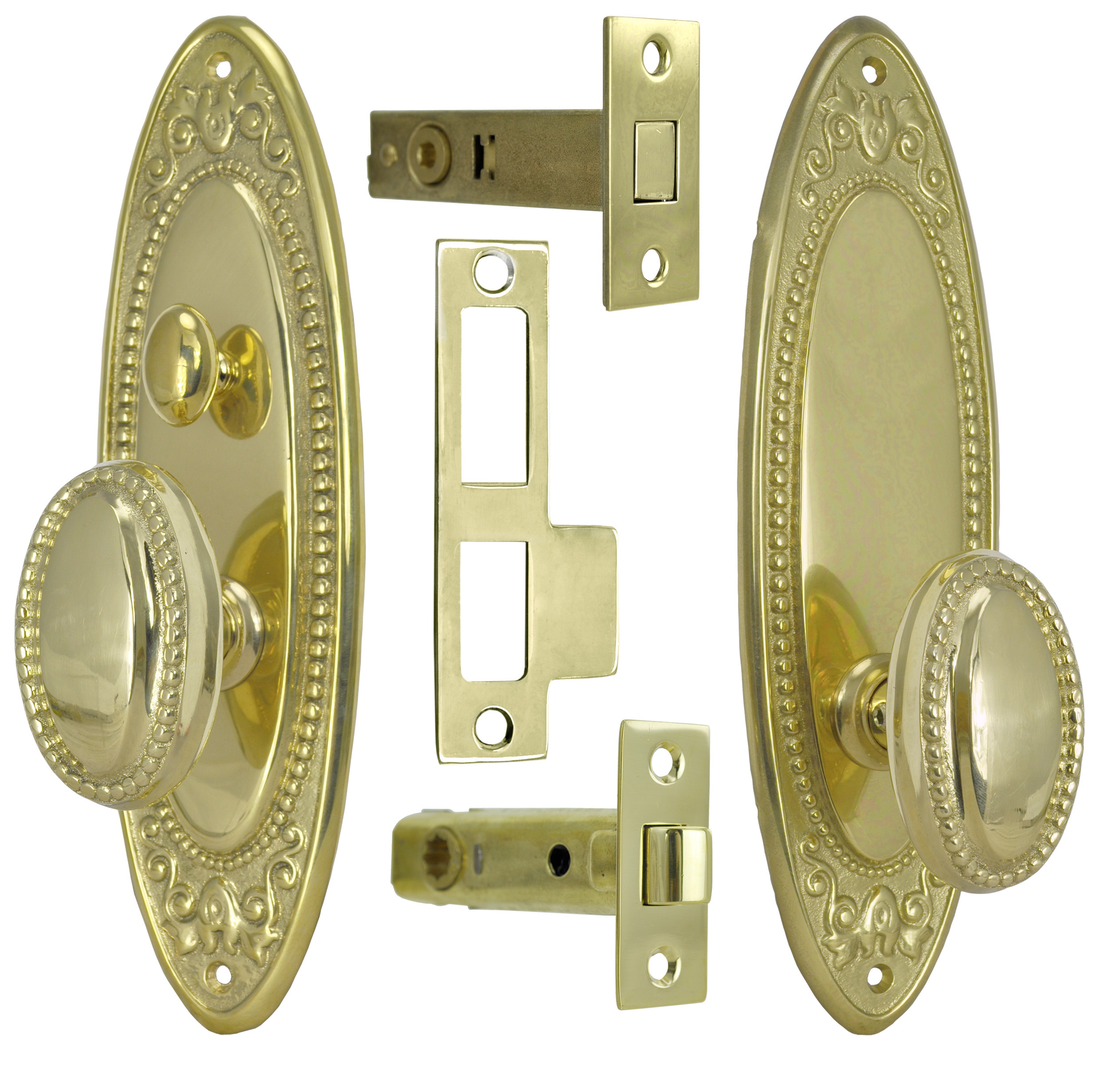

The set includes:
1. One Lower Knob Only Door Plate
2. One Turnlatch and Knob Door Plate
3. Two Doorknobs with the Connecting Spindle
4. One Tubular Passage Latch in Matching Finish
5. One Tubular Deadbolt Latch in Matching Finish
6. One Catchplate for both Deadbolt and Passage Latch
Door Plate: 9 3/4" tall by 2 7/8" wide.
Passage Latch: Backset is 2 3/8". Latch can be installed by drilling a 7/8" hole, then recessing the wood for the 1" x 2 1/4" latch face.
Tubular Deadbolt Over All Case Length: 3 1/4"; Deadbolt Face: 2 1/4" x 1 1/16"
Catchplate: 4 1/2" x 1"
