Solid Brass Eastlake Style Tubular Passage Door Set (L25PSET1)
Price:$146.25
Quantity:
Add to cart
Add to cart

Finish Option:
Polished Unlacquered Brass
Antique Brass Finish
Nickel Plated
Oil Rubbed Bronze Finish

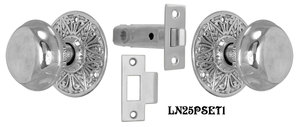

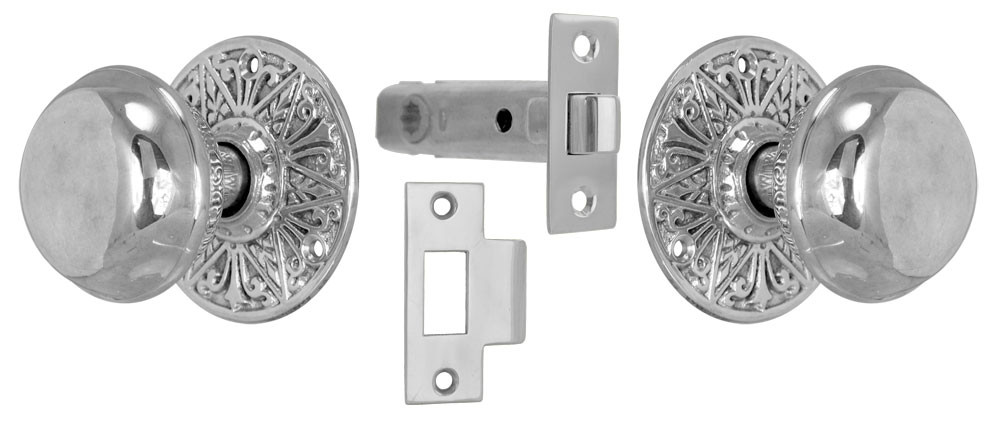

Solid Brass Eastlake Style Tubular Passage Door Set (L25PSET1)

Eastlake Style Rosettes & Classic Round Doorknobs
Tubular Passage Door Set with 2 38" Backset

L25PSET1  Polished Unlacquered Brass Eastlake Style Tubular Door Set {PICTURED}

LDK25PSET1  Antique Brass Finish Eastlake Style Tubular Door Set

LN25PSET1  Nickel Plated Eastlake Style Tubular Door Set {PICTURED}

LOB25PSET1  Oil Rubbed Brass Finish Eastlake Style Tubular Door Set

Eastlake style rosettes, cast in solid brass, joined with a pair of our round, wrought brass doorknobs.

This set is a non-locking interior passage set that comes with a tubular door latch.

Available in Polished Unlacquered Brass {Pictured}, hand-finished Antique Brass Finish, or shiny Nickel Plated {Pictured}.  Also available in our matte black Oil Rubbed Bronze Finish.

The Set Includes:

  • Two Rosettes
  • Two Doorknobs with the Connecting Spindle
  • One Tubular Passage Latch

Measurements:

  • Rosettes:  2 ¾" diameter.
  • Doorknobs:  2 ¼" diameter.  Each projects 2 ¼".
  • Passage Latch:
    • Face Plate:  1" wide x 2 ¼" tall.
    • Backset:  2 38"
    • Catch Plate:  1" wide x 2 ¾" tall.
    • Latch can be installed by drilling a 7/8" hole, then recessing the wood for the latch face.

Mounting screws are included with all pieces of hardware in this set.

*  Modern Door Fit Up Kit:  This item changes the modern ugly round holes in doors so that antique hardware can be used.  This adapter plate will work with our L-6 tubular passage latch.  Door must be a minimum of 1 1/8" thick.  Plastic sleeve slides over the latch body, and is held in position by screwing metal halves together.
