L26PSET2 Victorian Heraldic Door Plate with Pavia Lion Knob Interior Passage Set

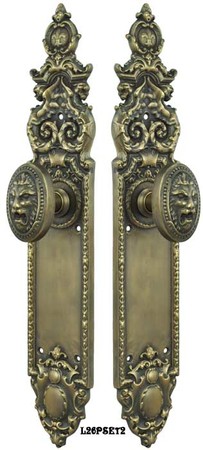

VVictorian Style Brass Heraldic Door Plate, Cast in solid brass and paired with Roaring Lion doorknob by Corbin from their Circa 1900 catalog, Called the Pavia Pattern.
This is an interior non-locking passage set.
This Complete door set is hand finished in an Antiqued Brass.
The Set Includes:
1. Two Knob Only Door Plates
2. Two Doorknobs with the connecting spindle
3. One tubular passage Latch
Door Plates: Measures 3 1/8" wide by 17" tall, Distance from the center of the doorknob hole to the center of the round bit of keyhole is 2 1/4".
Doorknobs: 2" wide by 2 7/8" long. Projects 2 3/8".
Passage Latch: Backset is 2 3/8", and catch plate is 1" x 2 3/4". Latch can be installed by drilling a 7/8" hole, then recessing the wood for the 1"x 2 1/4" latch face.
* Modern Door Fit Up Kit:This item changes the modern ugly round holes in doors so that antique hardware can be used. This adapter plate will work with our L-6 tubular passage latch. Door must be a minimum of 1 1/8" thick. Plastic sleeve slides over the latch body and is held in position by screwing metal halves together.
