Victorian Heraldic Door Plate with Large Lion Knob Set and Locking Turnlatch (L26PTSET1)
Price:$858.89
Quantity:
Add to cart
Add to cart

Options:
Antique Brass Finish
Oil Rubbed Bronze Finish
Victorian Heraldic Door Plate with Large Lion Knob Set and Locking Turnlatch (L26PTSET1)

Victorian Heraldic Door Plates & Large Lion Head Doorknobs
Tubular Door Set with Locking Privacy Turnlatch - 2 38" Backset

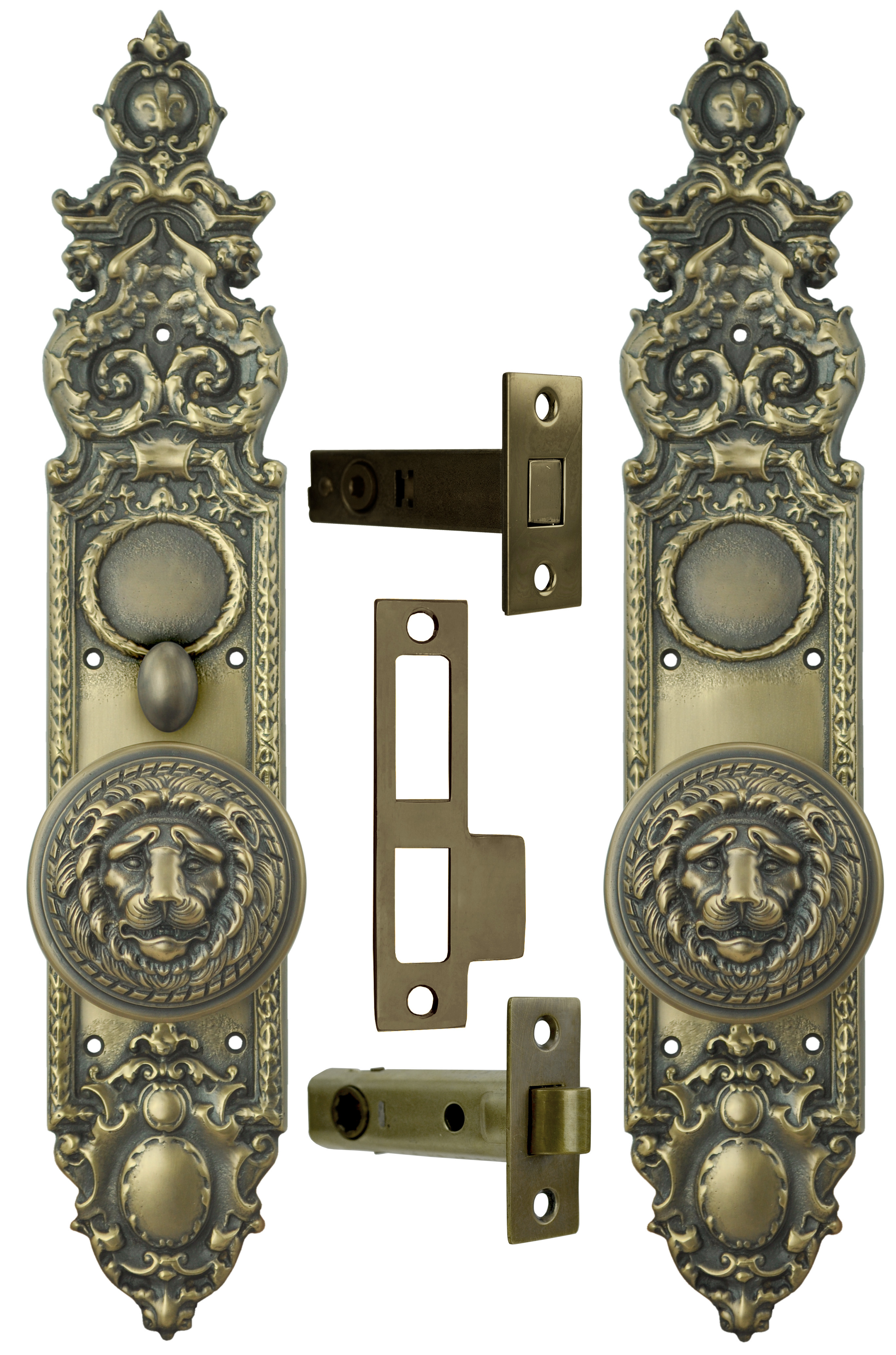

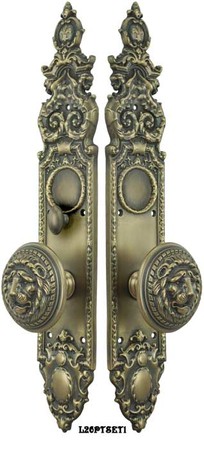

L26PTSET1-DK  Antique Brass Finish Victorian Heraldic Door Set w/ Locking Turnlatch {PICTURED}

L26PTSET1-OB  Oil Rubbed Bronze Finish Victorian Heraldic Pattern Door Set w/ Locking Turnlatch

Victorian style heraldic door plates, paired with VERY large and impressive reproduction Schlage Large Lion Head doorknobs.  Each knob weighs in at about 1 ½" pounds!  Doorplates and doorknobs are lost wax cast in solid brass.

This set is an interior privacy set that locks from one side using a turnlatch.  Ideal for those who don't want to mortise out a door for a full mortise box.  Instead, this set comes with a tubular passage latch and a tubular deadbolt.

This complete door set is available in our hand-finished Antique Brass Finish {Pictured}, or our matte black Oil Rubbed Bronze Finish.

The Set Includes:

  • One Door Plate with Lower Knob Only Function
  • One Door Plate with Knob and Turnlatch Function
  • Two Doorknobs with the Connecting Spindle
  • One Tubular Passage Latch
  • One Tubular Deadbolt Latch
  • One Catchplate for Both Deadbolt and Passage Latch

Measurements:

  • Door Plates:  3 18" wide x 17" tall.
  • Doorknobs:  3 38" diameter.  Each projects 2 78".
  • Passage Latch:
    • Face Plate:  1" wide x 2 ¼" tall.
    • Backset:  2 38"
    • Latch can be installed by drilling a 7/8" hole, then recessing the wood for the latch face.
  • Tubular Deadbolt:
    • Face Plate:  1 116" wide x 2 ¼" tall.
    • Case Length:  3 ¼" overall.
    • Backset:  2 38"
  • Catchplate:  4 ½" tall x 1" wide (minus tongue).

Mounting screws are included with all pieces of hardware in this set.
