Modern Beaded Edge Door Plate Set with Locking Turnlatch Mortise (L49MTSET)
Price: $267.72
Quantity:
Add to cart
Add to cart

Finish Option:
Polished Brass with 2 " Backset Mortise Lock
Polished Brass with 2 ⅝" Backset Mortise Lock
Antique Brass Finish with 2 " Backset Mortise Lock
Antique Brass Finish with 2 ⅝" Backset Mortise Lock
Nickel Finish with 2 " Backset Mortise Lock
Nickel Finish with 2 ⅝" Backset Mortise Lock
Oil Rubbed Bronze Finish with 2 " Backset Mortise Lock
Oil Rubbed Bronze Finish with 2 ⅝" Backset Mortise Lock
Set Door Handing:
Left Hand
Right Hand
Modern Beaded Edge Door Plate Set with Locking Turnlatch Mortise (L49MTSET)

Beaded Edge Arched Design Interior Privacy Door Set
with Turnlatch Mortise Lock

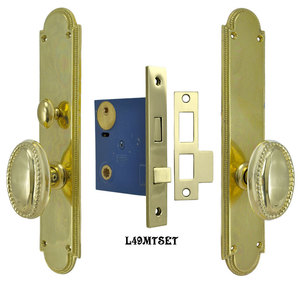

L49MTSET-PB1  Polished Unlacquered Brass Door Set with 2 ¼" Backset Mortise Lock
L49MTSET-PB2  Polished Unlacquered Brass Door Set with 2 58" Backset Mortise Lock

L49MTSET-DK1  Antique Brass Finish Door Set with 2 ¼" Backset Mortise Lock
L49MTSET-DK2  Antique Brass Finish Door Set with 2 58" Backset Mortise Lock

L49MTSET-NP1  Nickel Plated Door Set with 2 ¼" Backset Mortise Lock
L49MTSET-NP2  Nickel Plated Door Set with 2 58" Backset Mortise Lock

L49MTSET-OB1  Oil Rubbed Bronze Finish Door Set with 2 ¼" Backset Mortise Lock
L49MTSET-OB2  Oil Rubbed Bronze Finish Door Set with 2 58" Backset Mortise Lock

Nice classic arched doorplate set, complete with oval beaded edge doorknobs and turnlatch mortise lock.  The simplicity of this design would complement a range of décors, from Art Deco to Contemporary.

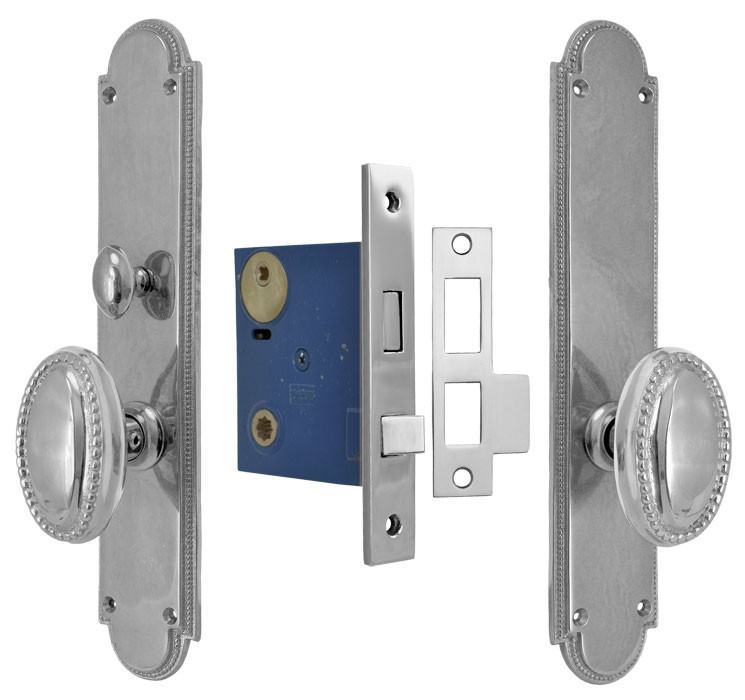

The complete door set is available in Polished Unlacquered Brass (which will develop a natural patina over time), or our hand-finished, mellow brown, Antique Brass Finish.  Also available in Nickel Plated (pictured), or our matte black Oil Rubbed Bronze Finish.

This Interior Mortise Privacy Set locks from one side using a turnlatch.

Each Set Includes:

  • 1 Door Plate with Lower Doorknob Only Function
  • 1 Door Plate with Lower Doorknob & Turnlatch Function
  • 2 Doorknobs with the Connecting Spindle
  • 1 Mortise Lock with Turnlatch Function (choice of 2 ¼" or 2 58" backset)

Measurements:

  • Door Plates:  2" wide x 10 ½" tall.
  • Doorknobs:  2 ¾" tall x 1 ¾" wide; projects 2 ¼".
  • Mortise Locks:
    • 2 ¼" Backset Lock:
      • Lock Body:  3 ¾" tall x 2 78" deep x 58" thick.
      • Faceplate:  1" wide x 6" tall; 316" thick.
      • Strike Plate:  4 ½" tall x 1" wide (plus tongue).
      • Distance from the center of the turnlatch receiver to the center of the doorknob spindle hub is 2 ½".
    • 2 58" Backset Lock:
      • Lock Body:  3 ¾" tall x 3 316" deep, and 58" thick.
      • Faceplate:  1" wide x 6" tall; 316" thick.
      • Strike Plate:  4 ½" tall x 1" wide (plus tongue).
      • Distance from the center of the turnlatch receiver to the center of the doorknob spindle hub is 2 ½".

Mounting screws for all hardware will be supplied.
