Modern Beaded Edge Door Plate Tubular Passage Set with Locking Turnlatch (L49PTSET)
Price: $237.52

Finish Option:

Polished Unlacquered Brass
Antique Brass Finish
Nickel Plated
Oil Rubbed Bronze Finish
Modern-Beaded-Edge-Door-Plate-Tubular-Passage-Set-with-Locking-Turnlatch-(L49PTSET)

Move mouse over image to Zoom..

Beaded Edge Arched Design
Locking Privacy Tubular Door Set - 2 38" Backset

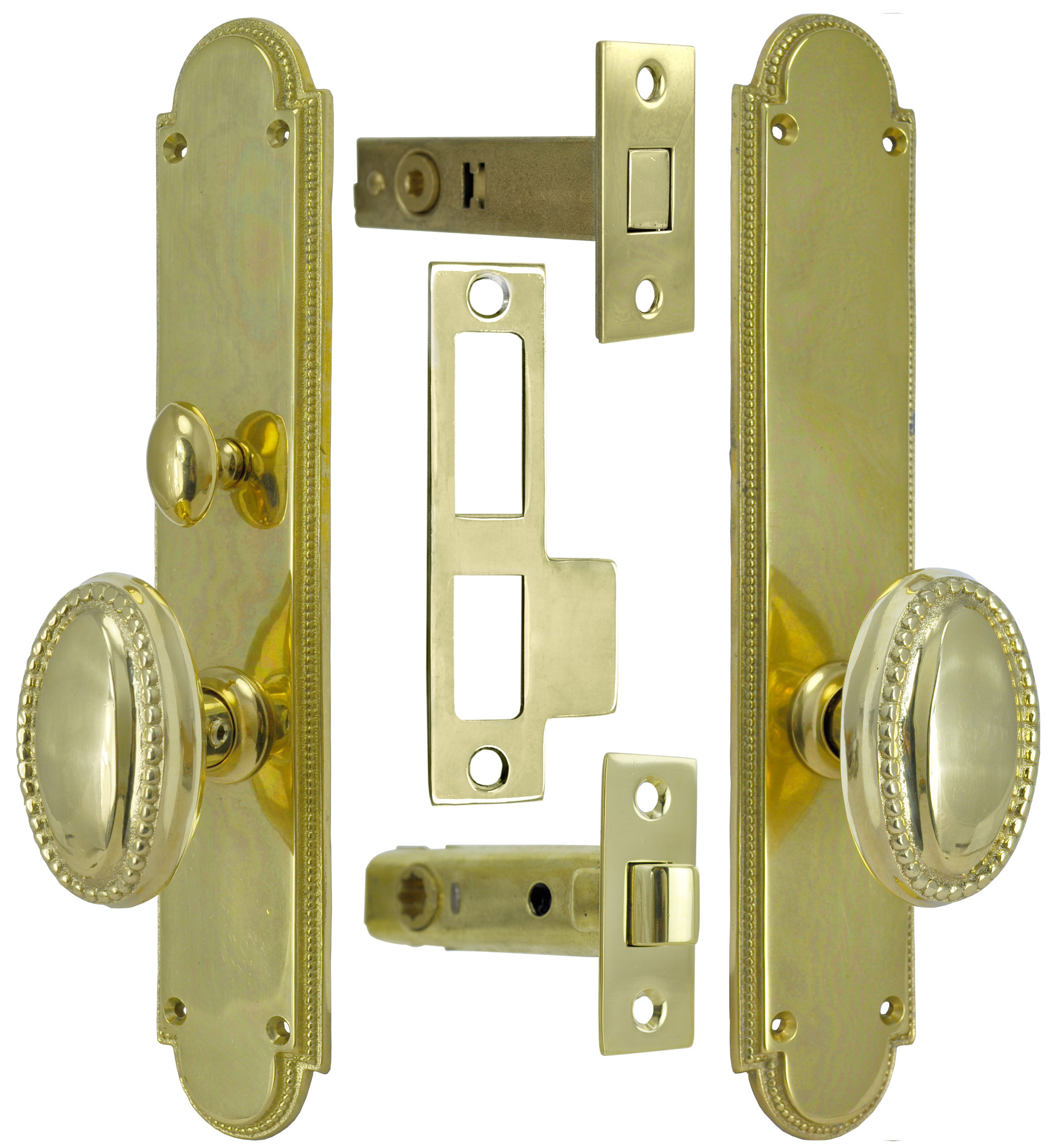

L49PTSET-PB  Polished Unlacquered Brass Tubular Door Set with 2 38" Backset {PICTURED}

L49PTSET-DK  Antique Brass Finish Tubular Door Set with 2 38" Backset

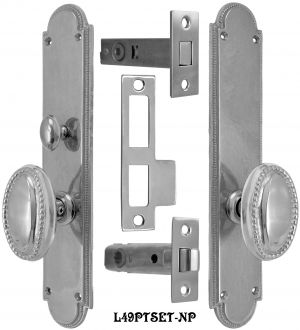

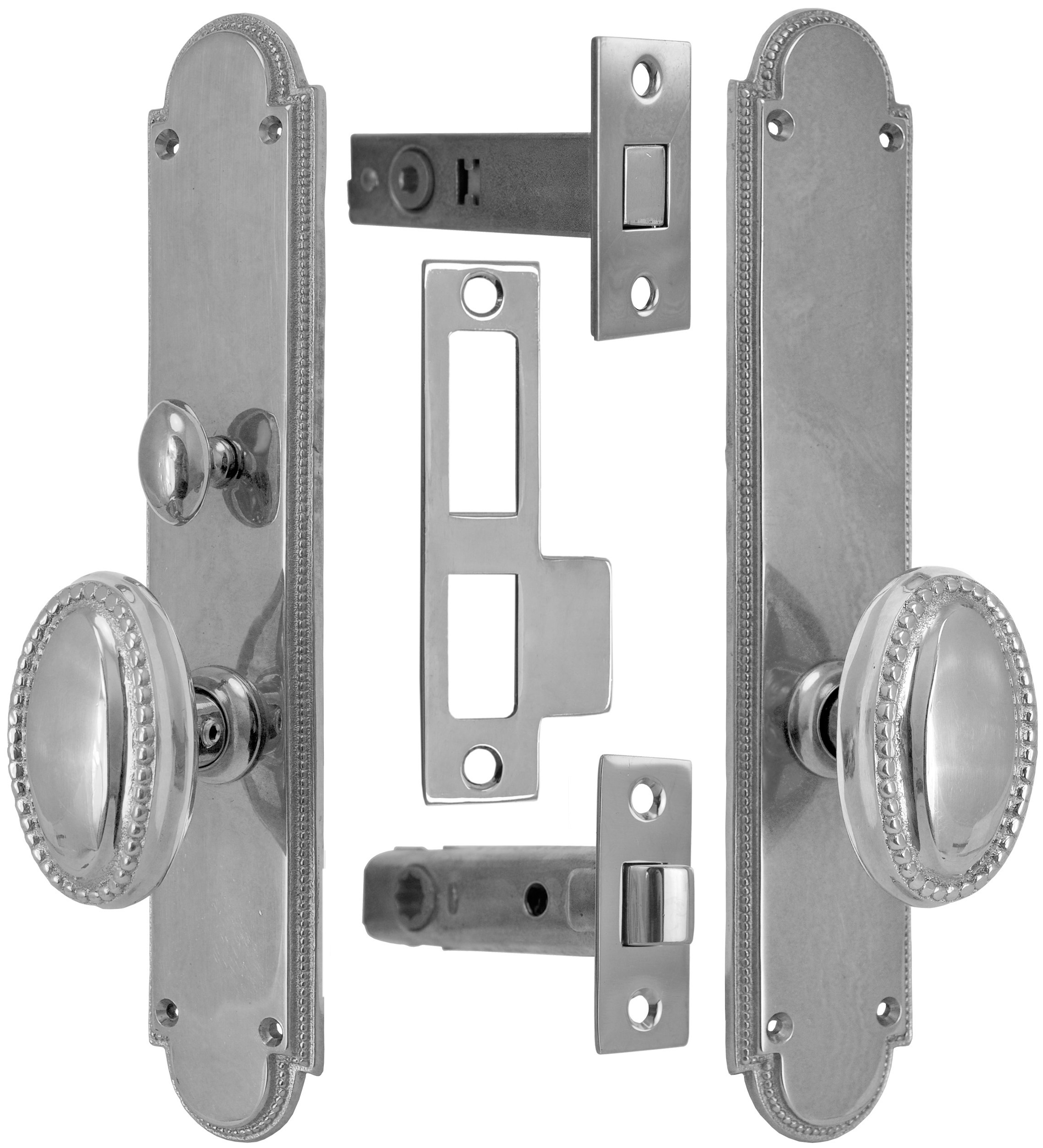

L49PTSET-NP  Nickel Plated Tubular Door Set with 2 38" Backset {PICTURED}

L24PTSET-OB  Oil Rubbed Bronze Finish Tubular Door Set with 2 38" Backset

Nice classic arched doorplate set, complete with oval beaded edge doorknobs and tubular lock & latch.  The simplicity of this design would complement a range of décors, from Art Deco to Contemporary.

The complete door set is available in Polished Unlacquered Brass (which will develop a natural patina over time), or our hand-finished, mellow brown, Antique Brass Finish.  Also available in Nickel Plated {Pictured}, or our matte black Oil Rubbed Bronze Finish.

This is an interior tubular privacy set which locks from one side using a turnlatch.

Each Set Includes:

  • 1 Doorplate with Lower Knob Only Function
  • 1 Doorplate with Turnlatch Function
  • 2 Doorknobs with the Connecting Spindle
  • 1 Tubular Passage Latch
  • 1 Tubular Deadbolt Latch
  • 1 Catchplate for Both Deadbolt and Passage Latch

Measurements:

  • Door Plates:  2" wide x 10 ½" tall.
  • Doorknobs:  2 ¾" tall x 1 ¾" wide; each projects 2 ¼".
  • Passage Latch:
    • Backset:  2 38"
    • Catch Plate:  1" x 2 ¾"
    • Latch can be installed by drilling a 78" hole, then recessing the wood for the 1"x 2 ¼" latch face.
  • Deadbolt:
    • Backset:  2 38"
    • Case:  3 ¼" long x 1316" tall x 916" deep.
    • Backset:  2 38"
    • Deadbolt Face:  2 ¼" x 1 116"
  • Catchplate:  4 ½" tall x 1" wide (minus tongue).

Mounting screws are included for each piece of hardware in this set.
