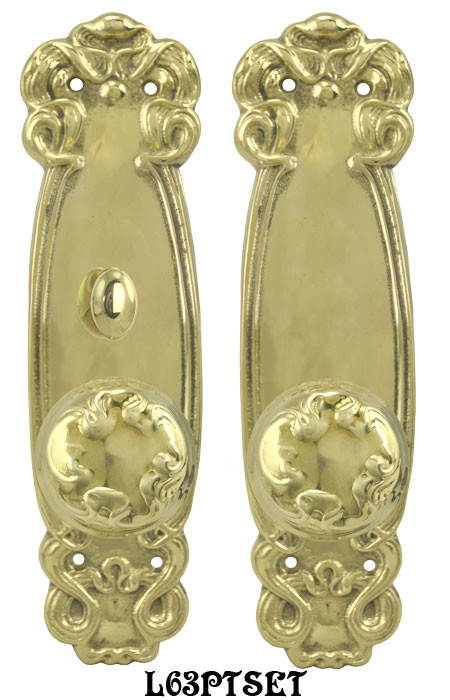

L63PSET Art Nouveau Door Plate Passage set with Locking Turnlatch in polished brass
L63PSETDK Art Nouveau Door Plate Passage set with Locking Turnlatchantiqued brass
This lovely Art Nouveau Series is all solid cast brass. Art Nouveau was popular from the late 1800's through Edwardian times of the early 1900's. Graceful, flowing lines that highlighted the beauty of nature distinguish the style.
This interior passage set, locks from one side using a Turnlatch. This set is for those who don't want to mortise out a door for a full mortise box. Instead this set comes with a tubular passage and a tubular deadbolt.

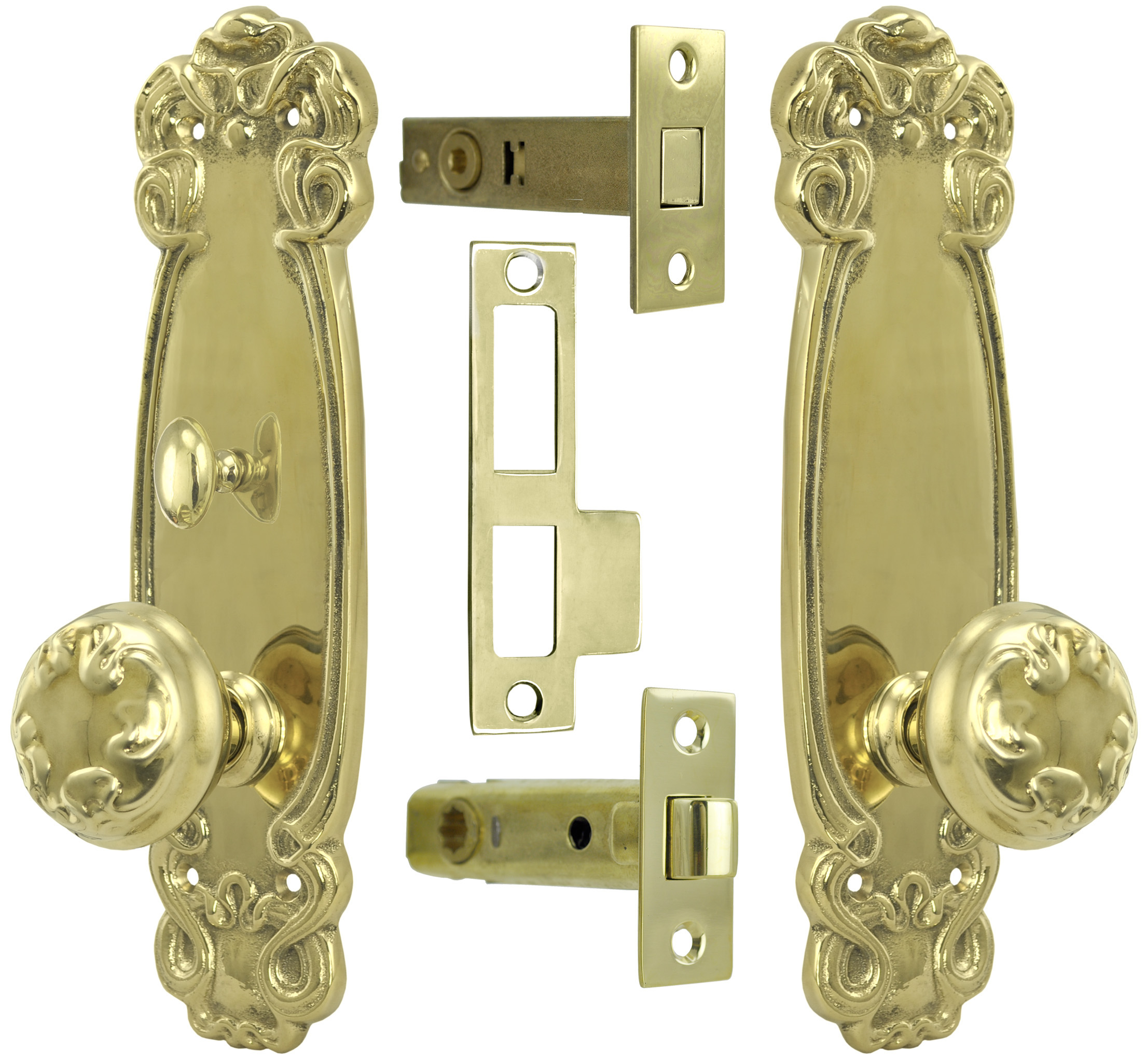

The Set Includes:
1. One Lower knob only Door Plate
2. One turnlatch and knob door plate
3. Two Doorknobs with the connecting spindle
4. One Tubular Passage Latch
5. One Tubular Deadbolt Latch
6. One Catchplate for both Deadbolt and Passage Latch
Door Plates: Measures 2 3/4" wide by 10" tall, Distance from the turnlatch stem to the center of the doorknob receiver is 2 1/2".
Passage Latch: Backset is 2 3/8". Latch can be installed by drilling a 7/8" hole, then recessing the wood for the 1"x 2 1/4" latch face.
Tubular Deadbolt Over All case length: 3 1/4"; Backset: 2 3/8";
Deadbolt Face: 2 1/4" x 1 1/16"
Catchplate: 4 1/2" x 1"
