Art Nouveau Door Plate Passage Set with Locking Turnlatch (L63PTSET4)
Price: $524.99
Quantity:
Add to cart
Add to cart

Options:
Antique Brass Finish
Oil Rubbed Bronze Finish
Two-Tone Black & Brass Finish
Art Nouveau Door Plate Passage Set with Locking Turnlatch  (L63PTSET4)

Art Nouveau Door Plates with Asian Lady Doorknobs
Interior Privacy Tubular Lock Set - 2 38" Backset

L63PTSET4-DK  Antique Brass Finish Tubular Door Set with 2 38" Backset

L63PTSET4-OB  Oil Rubbed Bronze Finish Tubular Door Set with 2 38" Backset

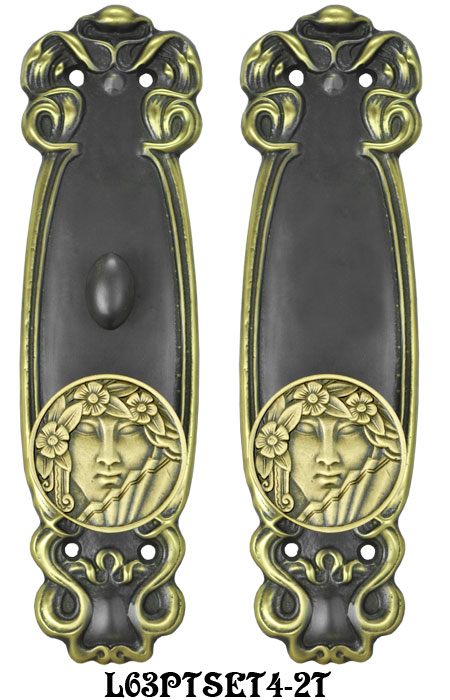

L63PTSET4-2T  Two-Tone Black & Brass Finish Tubular Door Set w/ 2 38" Backset {PICTURED}

This lovely Art Nouveau Series is all solid cast brass.  Art Nouveau was popular from the late 1800's through the Edwardian times in the early 1900's.  Graceful, flowing lines that highlighted the beauty of nature distinguish the style.

This complete set comes with a pair of Asian motif lady doorknobs.  In our opinion, for true spirit of the Art Nouveau period, there cannot be a finer doorknob anywhere.  The antique original is marked "Russwin", formerly R&E, the famous Russell & Erwin manufacturers.  We assume that the originals were custom made, not a stock item.  The Morris influence is strong in this design.

This interior tubular privacy set locks from one side using a turnlatch.  This set is for those who don't want to mortise out a door for a full mortise box lock.  Instead, this set comes with a tubular passage latch and a tubular deadbolt.

The complete door set is available in our hand-finished, mellow brown, Antique Brass Finish, or our matte black Oil Rubbed Bronze Finish.  Also available in our bold Two-Tone Black & Brass Finish {PICTURED}.

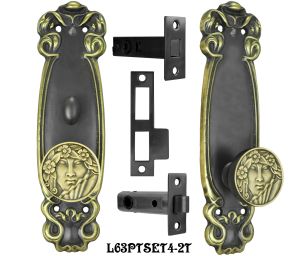

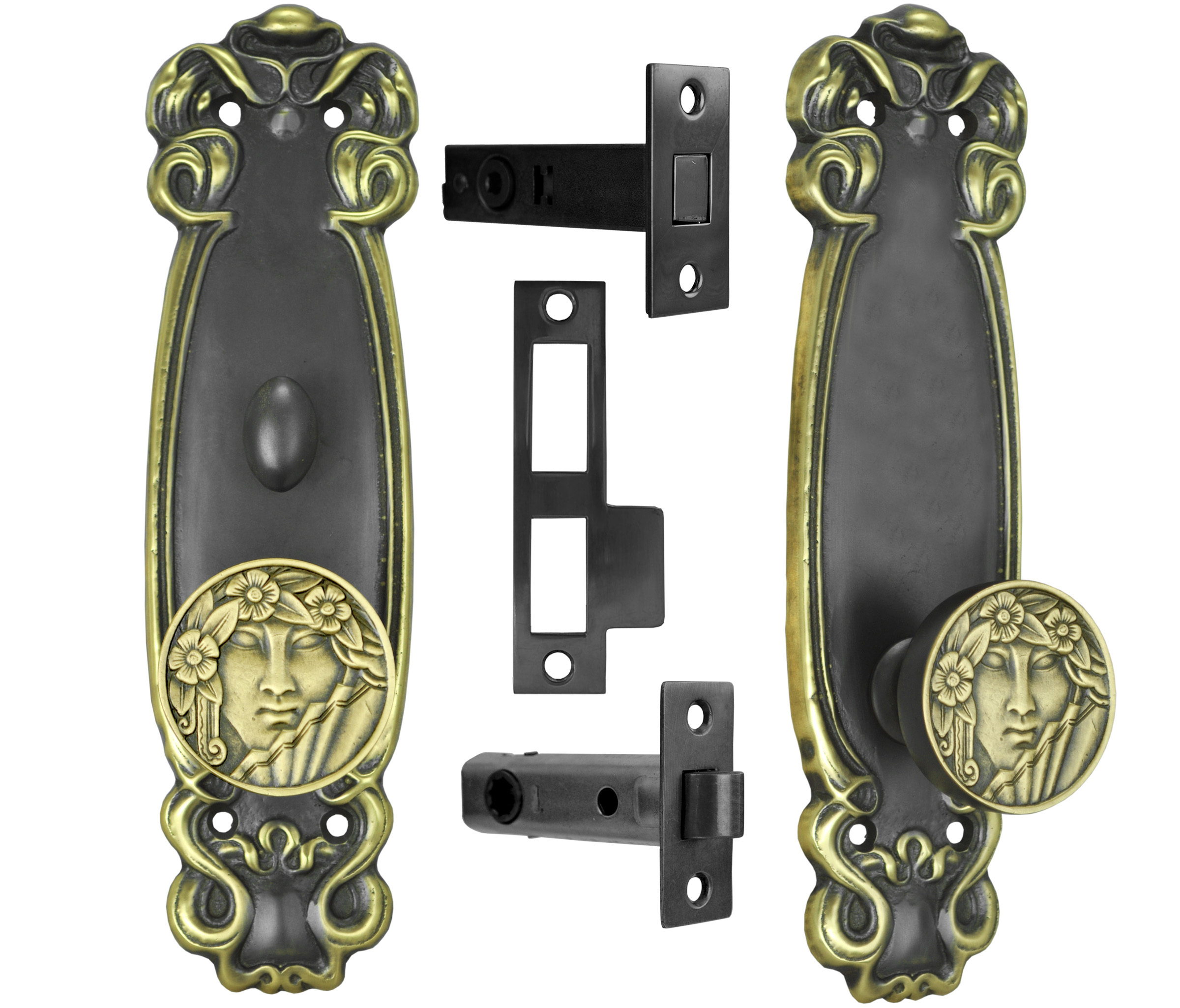

Each Set Includes:

  • 1 Doorplate with Lower Knob Only Function
  • 1 Doorplate with Turnlatch Function
  • 2 Doorknobs with the Connecting Spindle
  • 1 Tubular Passage Latch
  • 1 Tubular Deadbolt Latch
  • 1 Catchplate for Both Deadbolt and Passage Latch

Measurements:

  • Doorplates:  2 ¾" wide x 10" tall.
  • Doorknobs:  2 ¼" diameter; each projects 1 ¾".
  • Passage Latch:
    • Backset:  2 38"
    • Latch Face:  1" x 2 ¼"
    • Latch can be installed by drilling a 78" hole, then recessing the wood for the 1"x 2 ¼" latch face.
  • Deadbolt:
    • Backset:  2 38"
    • Case:  3 ¼" long x 1316" tall x 916" deep.
    • Deadbolt Face:  2 ¼" x 1 116"
  • Catchplate:  4 ½" tall x 1" wide (minus tongue).

Mounting screws are included for each piece of hardware in this set.
