French Door Passage Set (L69PSET3)
Price: $100.45

Move mouse over image to Zoom..

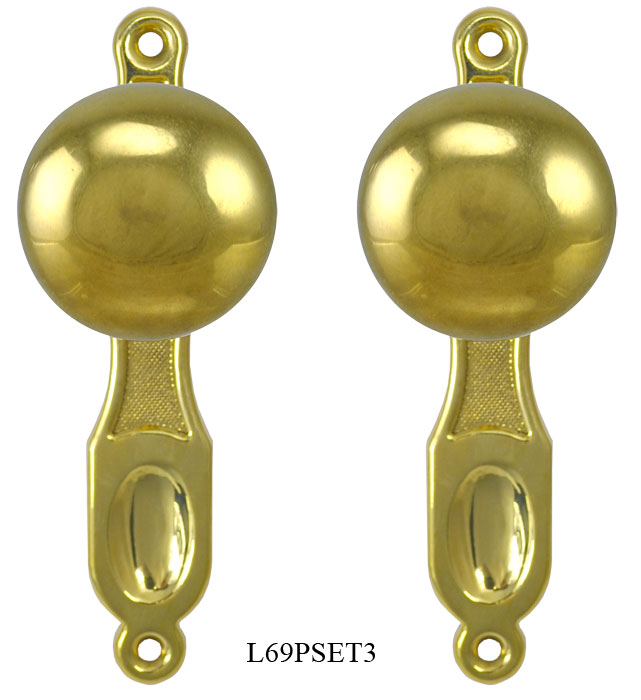

L69PSET3 French Door Tubular Passage set

This interior Non-Locking Tubular passage set,

The Set Includes:

1. Two Knob Only Door Plate

2. Two Doorknobs with the connecting spindle

4. One tubular passage latch


Door>Plate size is 1 1/4" wide by 5" tall.

4" tall x 1 1/2" wide.  Tongue (bolt) is 1/2" thick, and protudes 3/8".

Latch: Backset is 2 3/8", and catchplate is 1" x 2 3/4". Latch can be installed by drilling a 7/8" hole, then recessing the wood for the 1"x 2 1/4" latch face.


Knob: 1 3/4" by 1 3/4"tall
