Narrow Backset French Door Set (L71MKKSET3)
Price: $161.10


Polished Unlacquered Brass
Antique Brass Finish
Oil Rubbed Bronze Finish

Set Door Handing:

Left Hand
Right Hand

Move mouse over image to Zoom..

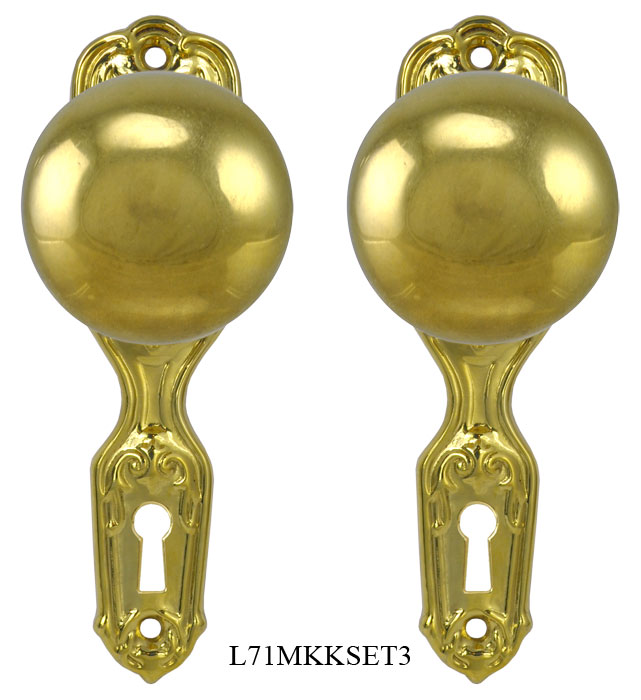

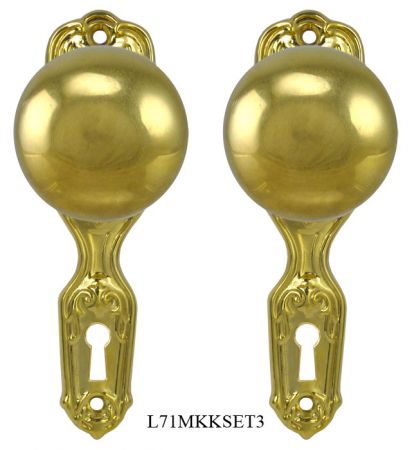

Narrow 1" Backset French Door Set with Classic Plain Doorknobs

L71MKKSET3-PB  Polished Unlacquered Brass Door Set with Narrow 1" Backset Mortise Lock

L71MKKSET3-DK  Antique Brass Finish Door Set with Narrow 1" Backset Mortise Lock

L71MKKSET3-OB  Oil Rubbed Bronze Finish Door Set with Narrow 1" Backset Mortise Lock

A lovely, very narrow backset set.  Perfect for narrow stile doors with glass windows.

Very cute, wrought solid brass doorplates, paired with traditional plain brass doorknobs.

This is an interior mortise passage set which locks from both sides using a skeleton key.

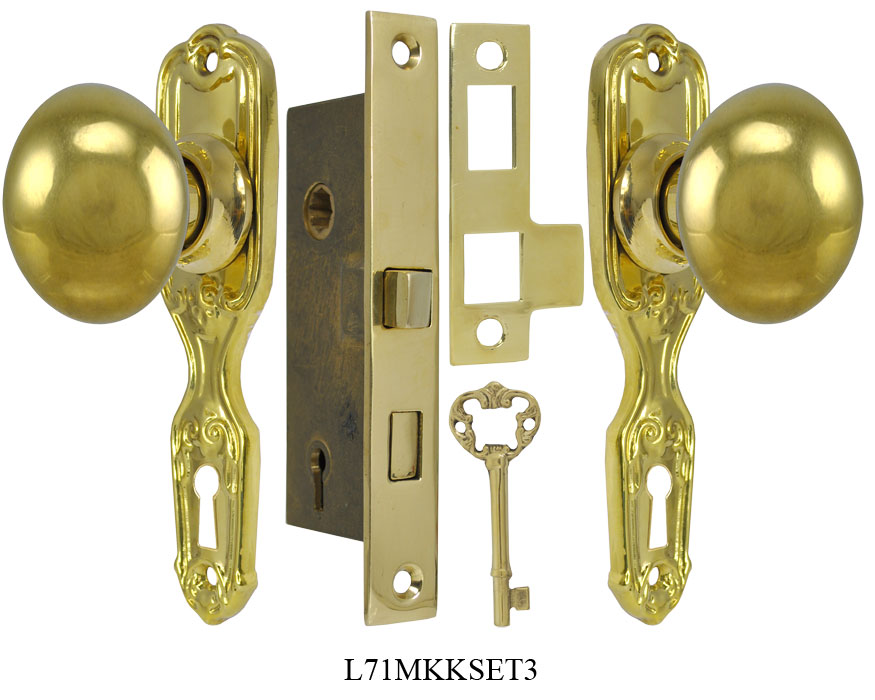

Each Set Includes:

  • 2 Doorplates with Knob & Keyhole Function
  • 2 Doorknobs with the Connecting Spindle
  • 1 Mortise Lock with 1 Skeleton Key


  • Doorplates:  1 ¼" wide x 4 ¾" tall.
  • Doorknobs:  1 ¾" diameter; each projects 1 ¾".
  • Mortise Lock:
    • Lock Body:  4" tall x 1 ½" wide x ½" thick.
    • Faceplate:  5 ¼" tall x ¾" wide x 18" thick.
    • Strike Plate:  Strike Plate:  3" tall x ¾" wide, minus the tongue.
      The strike plate tongue measures ½" wide x ¾" tall.
    • Distance from the center of the doorknob receiver to the center of the round keyhole bit is 2 ¼".

Mounting screws are included with the hardware for this set.
