Art Deco or Arts and Crafts Style Door Plate Set w/ Locking Turnlatch (L73MTSET)
Price: $238.50

Options:

Polished Unlacquered Brass with 2 " Backset Mortise Lock
Polished Unlacquered Brass with 2 ⅝" Backset Mortise Lock
Antique Brass Finish with 2 " Backset Mortise Lock
Antique Brass Finish with 2 ⅝" Backset Mortise Lock
Nickel Plated with 2 " Backset Mortise Lock
Nickel Plated with 2 ⅝" Backset Mortise Lock
Oil Rubbed Bronze Finish with 2 " Backset Mortise Lock
Oil Rubbed Bronze Finish with 2 ⅝" Backset Mortise Lock
2 Tone Black & Brass Finish with 2 " Backset Mortise Lock
2 Tone Black & Brass Finish with 2 ⅝" Backset Mortise Lock

Set Door Handing:

Left Hand
Right Hand
Art-Deco-or-Arts-and-Crafts-Style-Door-Plate-Set-w/-Locking-Turnlatch-(L73MTSET)

Move mouse over image to Zoom..

Art Deco or Arts & Crafts Style Door Plates and Knobs
Complete Set with Privacy Turnlatch Mortise Lock

L73MTSET-PB1  Polished Unlacquered Brass Door Set with 2 ¼" Backset Mortise Lock
L73MTSET-PB2  Polished Unlacquered Brass Door Set with 2 58" Backset Mortise Lock

L73MTSET-DK1  Antique Brass Finish Door Set with 2 ¼" Backset Mortise Lock
L73MTSET-DK2  Antique Brass Finish Door Set with 2 58" Backset Mortise Lock

L73MTSET-NP1  Nickel Plated Door Set with 2 ¼" Backset Mortise Lock
L73MTSET-NP2  Nickel Plated Door Set with 2 58" Backset Mortise Lock

L73MTSET-OB1  Oil Rubbed Bronze Finish Door Set with 2 ¼" Backset Mortise Lock
L73MTSET-OB2  Oil Rubbed Bronze Finish Door Set with 2 58" Backset Mortise Lock

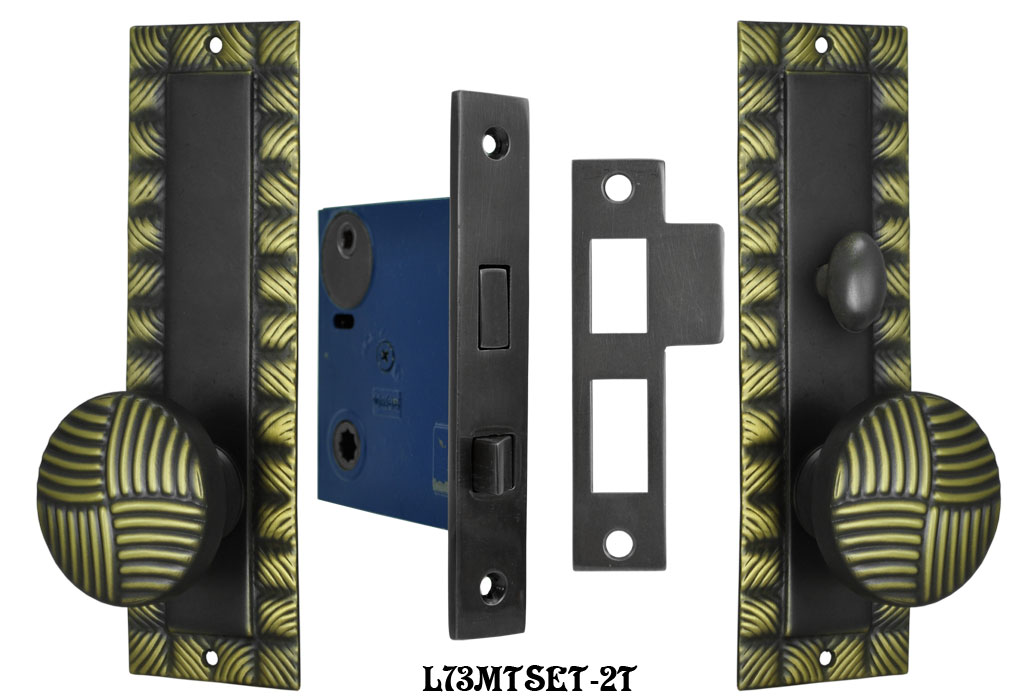

L73MTSET-2T1  2 Tone Black & Brass Finish Door Set with 2 ¼" Backset Mortise Lock (Pictured)
L73MTSET-2T2  2 Tone Black & Brass Finish Door Set with 2 58" Backset Mortise Lock (Pictured)

This lovely Art Deco Series is all solid brass.  Picture this door set in a home built between 1920 - 1945.  Much simpler than Victorian, yet not quite Streamline Modern Art Deco.  This design would also be at home in Craftsman or Arts and Crafts décors, too!

Available in Polished Unlacquered Brass, mellow brown Antique Brass Finish, silver-tone Nickel Plated, or our matte black Oil Rubbed Bronze Finish.  Also available in the pictured black and brass 2 Tone Finish.

This interior mortise privacy set locks from one side only using a turnlatch.

Each Set Includes:

  • One Door Plate with Doorknob & Turnlatch Function
  • One Door Plate with Lower Doorknob Only Function
  • Two Doorknobs with the Connecting Spindle
  • One Mortise Lock with Turnlatch Function (choice of 2 ¼" or 2 58" backset)

Measurements:

  • Doorplates:  7" tall x 2 ¼" wide.
  • Doorknobs:  2 ¼" diameter; each projects 2 ¼".
  • Mortise Locks:
    • 2 ¼" Backset Lock:
      • Lock Body:  3 ¾" tall x 2 78" deep x 58" thick.
      • Faceplate:  1" wide x 6" tall; 316" thick.
      • Strike Plate:  4 ½" tall x 1" wide (plus tongue).
      • Distance from the center of the turnlatch receiver to the center of the doorknob spindle hub is 2 ½".
    • 2 58" Backset Lock:
      • Lock Body:  3 ¾" tall x 3 316" deep, and 58" thick.
      • Faceplate:  1" wide x 6" tall; 316" thick.
      • Strike Plate:  4 ½" tall x 1" wide (plus tongue).
      • Distance from the center of the turnlatch receiver to the center of the doorknob spindle hub is 2 ½".

Mounting screws for all hardware will be supplied.
