Narrow Lock Set with Lever Handles for Small Backset Doors (L79SET-1PB)
Price:$229.51
Quantity:
Add to cart
Add to cart

Finishes:
Polished Unlacquered Brass
Antique Brass Finish
Oil Rubbed Bronze
Set Door Handing
:
Right Hand

Left Hand
Narrow Lock Set with Lever Handles for Small Backset Doors (L79SET-1PB)

L79SET-1PB  Polished Unlacquered Brass Narrow Lock Set with Lever Handles

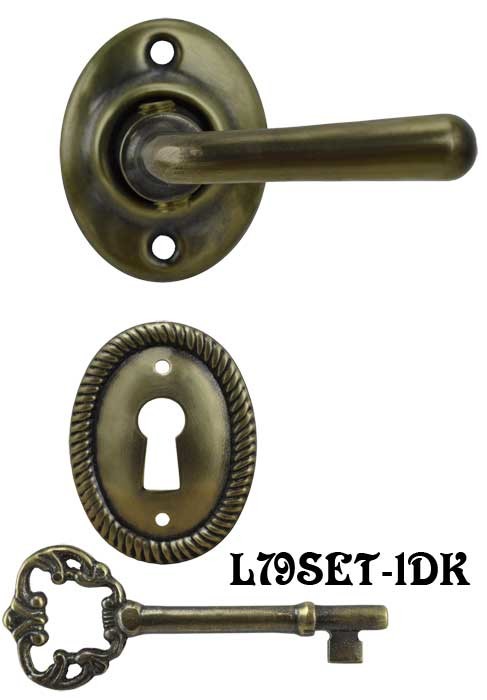

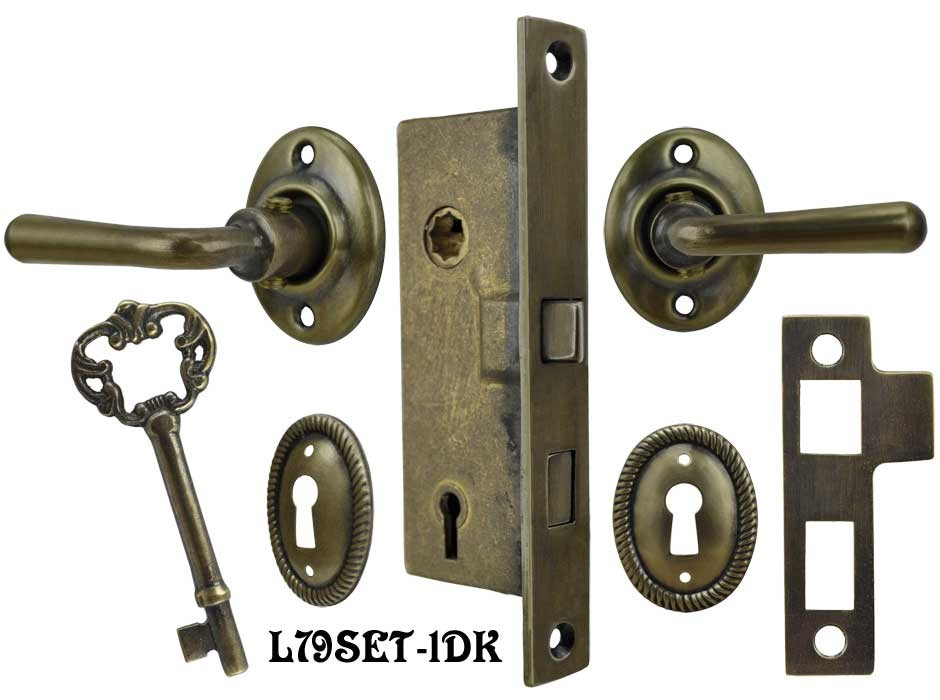

L79SET-1DK  Antique Brass Finish Narrow Lock Set with Lever Handles (Pictured)

L79SET-1OB  Oil Rubbed Bronze Finish Narrow Lock Set with Lever Handles

This lock set is made for narrow doors that don't have enough room for standard backset locks.

With a 1" backset, you can use this lock set with doors that have trim or glass that keep you from using standard backset locks.

Set uses a skeleton key lock for a vintage charm.

This lock set includes:

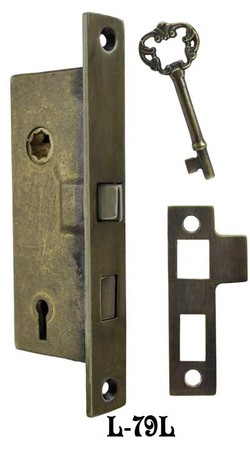

  • One narrow 1" back set lock with skeleton key function.
  • Two small doorknob rosettes.
  • Two small lever handles with connecting spindle.
  • Two keyhole escutcheons.

Measurements:

  • Lock Measurements:
    • Lock Case:  4" tall x 1 ½" wide.  ½" thick.
    • Center-to-Center:  2 ¼"
    • Lock Face:  5 ¼" tall x ¾" wide.
    • Catch Plate:  3" tall x ¾" wide, less the tongue.
  • Rosettes:
    • 1 ¾" tall x 1 38" wide.
  • Levers:
    •   1 ¾" long.  Protrudes 1 38".
  • Spindle:
    • Normal 3/8" thread doorknob spindle, with a length of 4 ½".  Diameter is ¼"; 16 threads per inch.
  • Keyholes:
    • 1 ½" tall x 1 18" wide.

Mounting screws are included with the hardware for this set.



These products are related to this one.

Narrow Lockset with Knobs for Small Backset Doors (L79SET-2)
PREV1 of 3NEXT

Price: $234.13
Oval Rope Border Vertical Keyhole Escutcheon (E-2B)

Price: $9.50

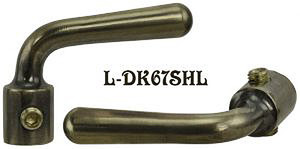

Screen Door Lever Handle (L-67SHL)
