Contemporary Solid Brass Door Plate Passage Set (L80PSET)
Price: $133.45
Quantity:
Add to cart
Add to cart

Finishes:
Polished Unlacquered Brass (L-80KO + L-80KO + L-6)
Antique Brass Finish (L-DK80KO + L-DK80KO + L-DK6)
Nickel Plated (L-N80KO + L-N80KO + L-N6)

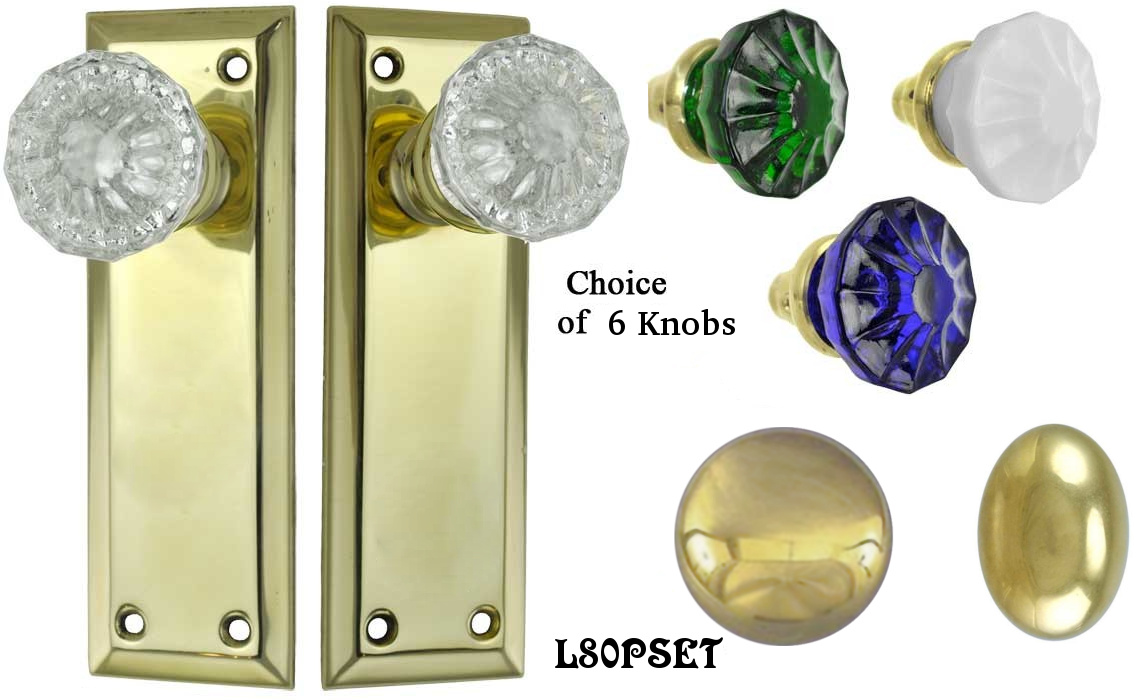

Doorknob Options:
Clear Glass Knobs (L-82K)
Blue Glass Knobs (L-119KB)
Green Glass Knobs (L-120KG)
White Glass Knobs (L-127KW)
Round Brass Knobs (L-103K)
Oval Brass Knobs (L-105K)
Extra:
Add L-100-1 Modern Door Fit Up Kit

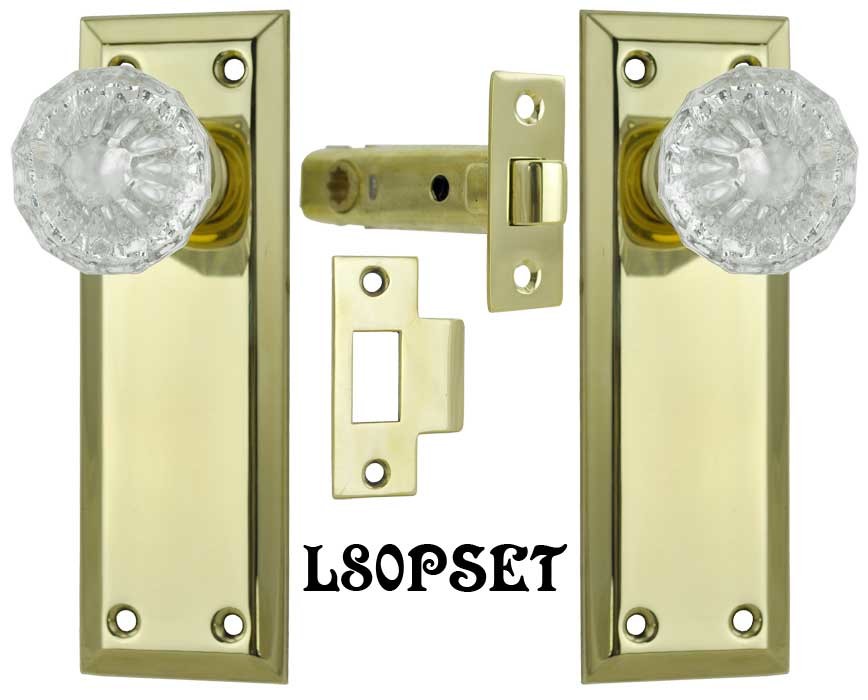

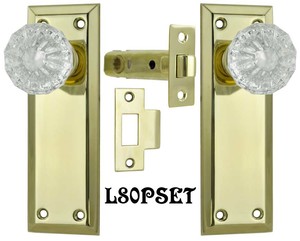

Contemporary Solid Brass Door Plate Passage Set  (L80PSET)

Classic 7" Tall Wrought Backplates Tubular Door Set
with Choice of Doorknobs - 2 38" Backset

L80PSET  Clear Glass Doorknobs with 7" Tall Wrought Doorplates Passage Door Set

L80PSET2  Blue Glass Doorknobs with 7" Tall Wrought Doorplates Passage Door Set

L80PSET3  Green Glass Doorknobs with 7" Tall Wrought Doorplates Passage Door Set

L80PSET4  White Glass Doorknobs with 7" Tall Wrought Doorplates Passage Door Set

L80PSET5  Round Brass Doorknobs with 7" Tall Wrought Doorplates Passage Door Set

L80PSET6  Oval Brass Doorknobs with 7" Tall Wrought Doorplates Passage Door Set

This is an interior non-locking passage set.

Each Set Includes:

  • Two Door Plates with "Knob Only" Function
  • Two Doorknobs with the Connecting Spindle
  • One Tubular Passage Latch

Measurements:

  • Door Plates:  2 ¼" wide x 7" tall.
  • Doorknobs:
    • Glass Doorknobs:  2" diameter; each projects 2 38".
    • Round Brass Doorknobs:  2 ¼" diameter; each projects 2 ¼".
    • Oval Brass Doorknobs:  2 38" tall by 1 916" wide; each projects 2 38".
  • Passage Latch:
    • Face Plate:  1" wide x 2 ¼" tall.
    • Backset:  2 38"
    • Catch Plate:  1" wide x 2 ¾" tall.
    • Latch can be installed by drilling a 7/8" hole, then recessing the wood for the latch face.

Mounting screws are included with all pieces of hardware in this set.

*  Modern Door Fit Up Kit:  This item changes the modern ugly round holes in doors so that antique hardware can be used.  This adapter plate will work with our L-6 tubular passage latch.  Door must be a minimum of 1 1/8" thick.  Plastic sleeve slides over the latch body, and is held in position by screwing metal halves together.
