Contemporary French Lever Solid Brass Door Plate Entry Set (L80SET7)
Price: $340.50
Quantity:
Add to cart
Add to cart

Finishes:
Polished Unlacquered Brass
Antique Brass Finish
Oil Rubbed Bronze Finish
Cylinder Length:
L-9CC 1" Cylinder
L-9C4 1 1/4" Cylinder
L-150S 1 1/2" Cylinder
L-175S 1 3/4" Cylinder
Set Door Handing:
Left Hand
Right Hand
Contemporary French Lever Solid Brass Door Plate Entry Set (L80SET7)

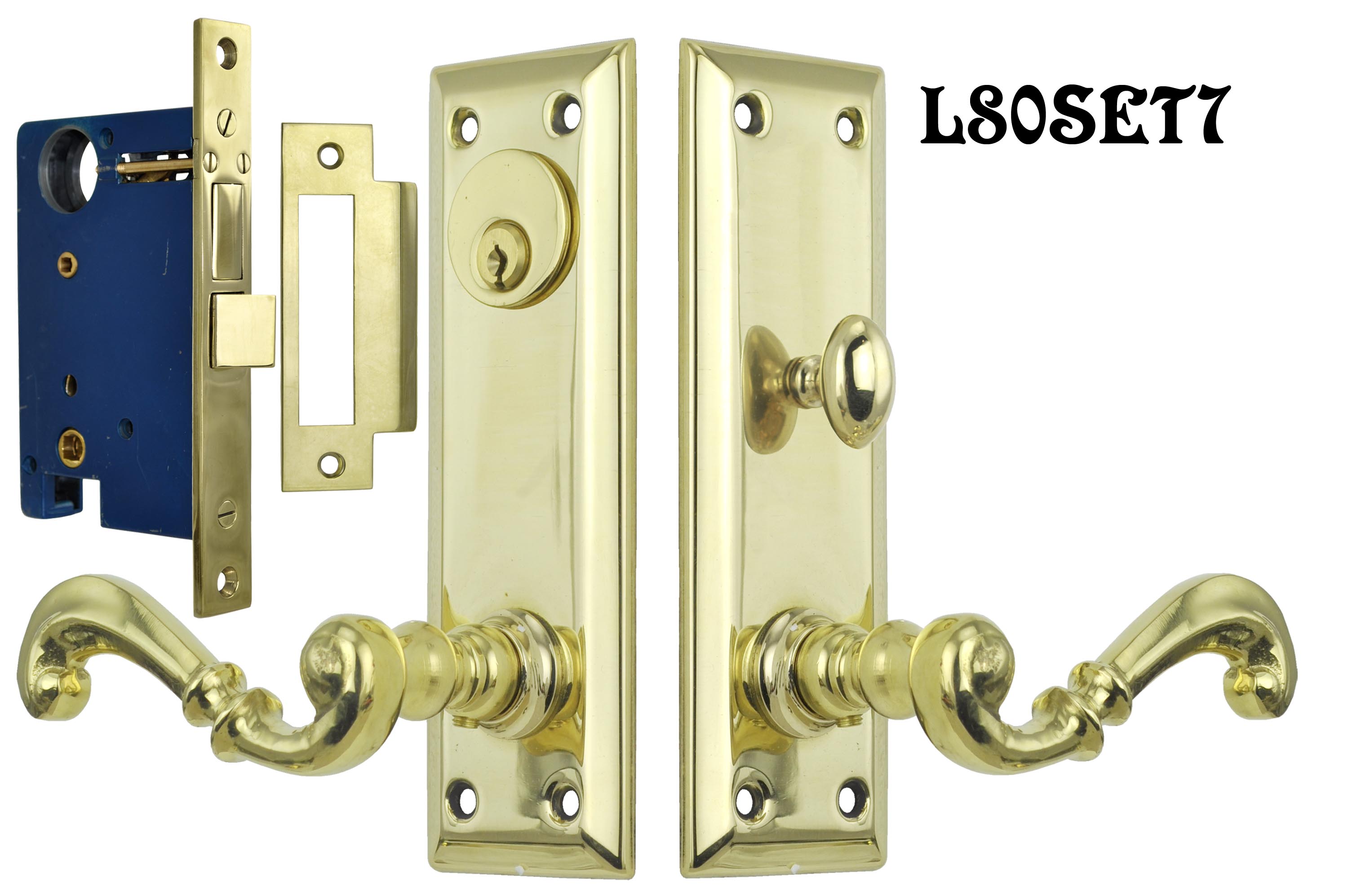

L80SET7-PB  Polished Unlacquered Solid Brass Door Plate Entry Set {PICTURED}

L80SET7-DK  Antique Brass Finish Solid Brass Door Plate Entry Set

L80SET7-OB  Oil Rubbed Bronze Finish Solid Brass Door Plate Entry Set

This complete door set is paired with our classic scroll design French lever handles.

The complete door set includes:

  • One Exterior Door Plate
  • One Interior Door Plate with Turnlatch Function
  • One Entry Mortise Lock
  • Two Lever Handles with the Connecting Spindle
  • One Cylinder Lock

Measurements:

  • Door Plates:  2 ¼" wide x 7" tall overall.
  • Lever Handles:  4 38" long; each projects 2 38".
  • Mortise Lock:
    • Backset:  2 ½", including the thickness of the face plate.
    • Lock Body:  5 ½" tall by 3 58" deep.  Thickness is 1316".
    • Lock Face:  7 ½" tall x 1" wide.
    • Catch Plate:  4 78" long by 1 78" wide.
    • Measurement from the center of the cylinder hole to the center of the doorknob spindle hole is 3 ¾".
    • Distance from the center of the bolt throw hole to the center of the door knob spindle hole is 2 38".

Mounting screws are included for each item in this doorset.
