Victorian Rococo Yale Pattern with Gothic Knob Set with Locking Turnlatch (L15PTSET2)
Price: $281.99
Quantity:
Add to cart
Add to cart

Options:
Polished Unlacquered Brass
Antique Brass Finish
Oil Rubbed Bronze Finish
Victorian Rococo Yale Pattern with Gothic Knob Set with Locking Turnlatch (L15PTSET2)

Rococo Yale Pattern Gothic Knob Tubular Door Set
with Locking Privacy Turnlatch - 2 38" Backset

L15PTSET2-PB  Polished Unlacquered Brass Victorian Rococo Yale Pattern Door Set with Locking Turnlatch

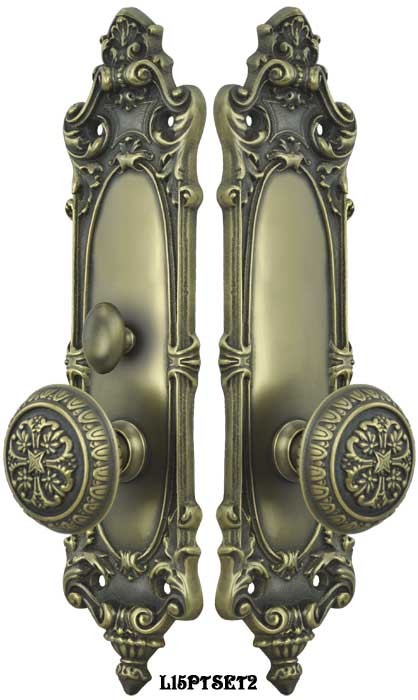

L15PTSET2-DK  Antique Brass Finish Victorian Rococo Yale Pattern Door Set with Locking Turnlatch {PICTURED}

L15PTSET2-OB  Oil Rubbed Bronze Finish Victorian Rococo Yale Pattern Door Set with Locking Turnlatch

Beautiful Yale Pattern of the Rococo Revival Victorian era, paired with well-detailed Gothic doorknobs.  Solid yellow brass with fine details retained through lost wax casting.

This interior privacy set locks from one side using a turnlatch.  This set is ideal for those who don't want to mortise out a door for a full mortise box.  Instead, this set comes with a tubular passage latch and a tubular deadbolt.

This complete door set is available in Polished Unlacquered Brass, or hand-finished in our Antique Brass Finish {Pictured}.  Also available in our matte black Oil Rubbed Bronze Finish.

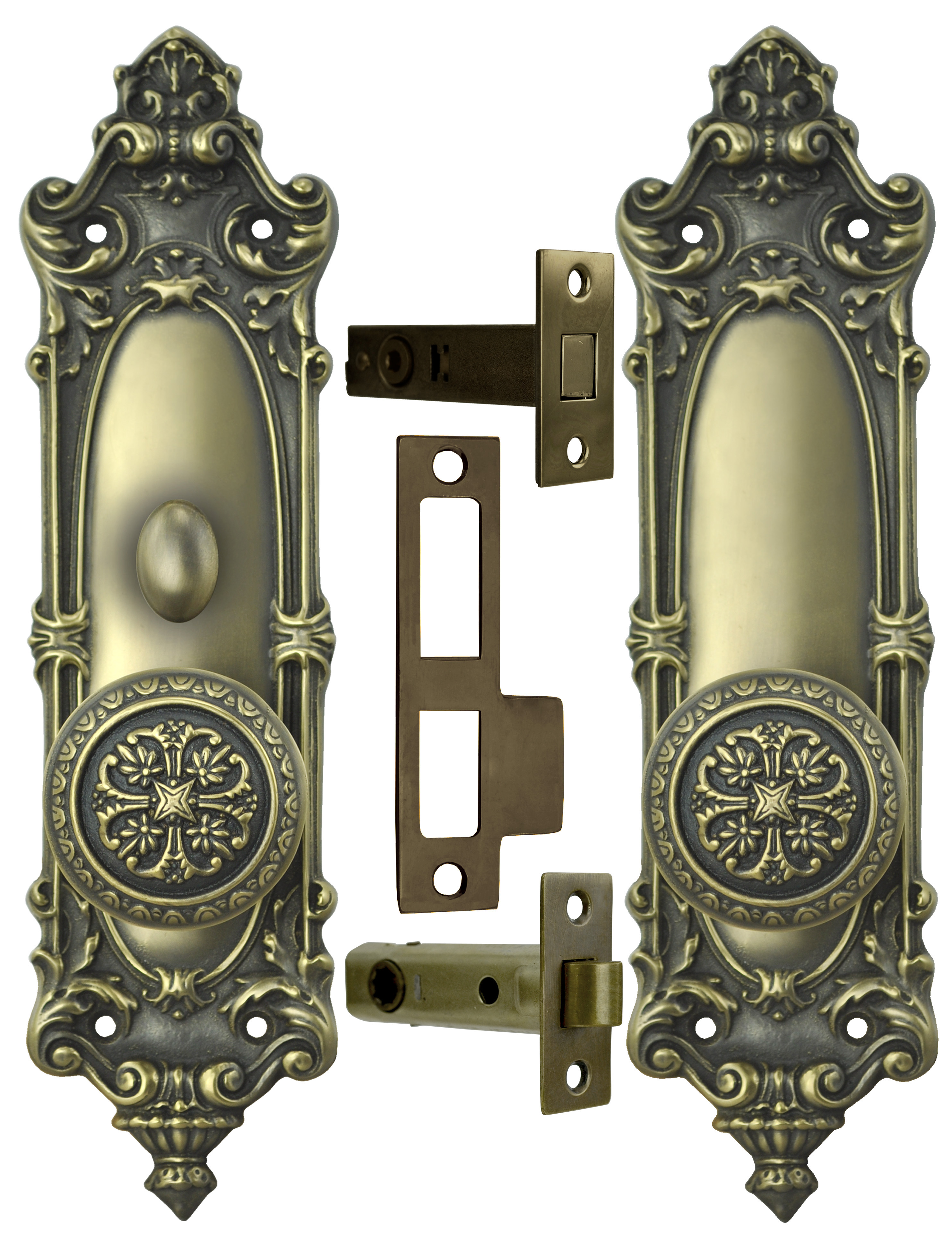

The Set Includes:

  • One Door Plate with Lower Knob Only Function
  • One Door Plate with Knob and Turnlatch Function
  • Two Doorknobs with the Connecting Spindle
  • One Tubular Passage Latch
  • One Tubular Deadbolt Latch
  • One Catchplate for Both Deadbolt and Passage Latch

Measurements:

  • Door Plates:  3 38" wide by 12 ½" tall.
  • Doorknobs:  2 ¼" diameter.  Each projects 2 ¼".
  • Passage Latch:
    • Face Plate:  1" wide x 2 ¼" tall.
    • Backset:  2 38"
    • Latch can be installed by drilling a 7/8" hole, then recessing the wood for the latch face.
  • Tubular Deadbolt:
    • Face Plate:  1 116" wide x 2 ¼" tall.
    • Case Length:  3 ¼" overall.
    • Backset:  2 38"
  • Catchplate:  4 ½" tall x 1" wide (minus tongue).

Mounting screws are included with all pieces of hardware in this set.
