Roaring Lion Door Plate Passage Set with Locking Turnlatch (Z189PTSET1)
Price: $835.89

Options:

Antique Brass Finish
Oil Rubbed Bronze Finish
Roaring-Lion-Door-Plate-Passage-Set-with-Locking-Turnlatch-(Z189PTSET1)

Move mouse over image to Zoom..

Victorian Pavia Roaring Lion Tubular Door Set
with Locking Privacy Turnlatch - 2 38" Backset

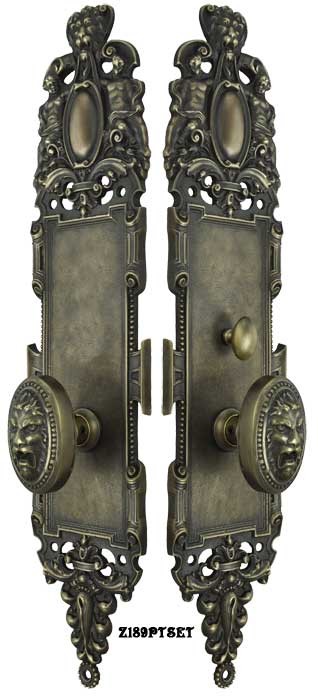

Z189PTSET1-DK  Antique Brass Finish Victorian Roaring Lion Pavia Doorset {PICTURED}

Z189PTSET1-OB  Oil Rubbed Bronze Finish Victorian Roaring Lion Pavia Doorset

VERY impressive!  This is a reproduction from the "Pavia" pattern roaring lion doorknob backplate by P.F. Corbin, which can be seen in their Circa 1900 catalog.  This impressive backplate has two full-figured cherubs flanking a lion's head.  The design is very classical Roman.  Door plates and knobs are cast in solid brass.

This set is an interior privacy set that locks from one side using a turnlatch.  Ideal for those who don't want to mortise out a door for a full mortise box.  Instead, this set comes with a tubular passage latch and a tubular deadbolt.

This complete door set is available in our hand-finished Antique Brass Finish {Pictured}, or our matte black Oil Rubbed Bronze Finish.

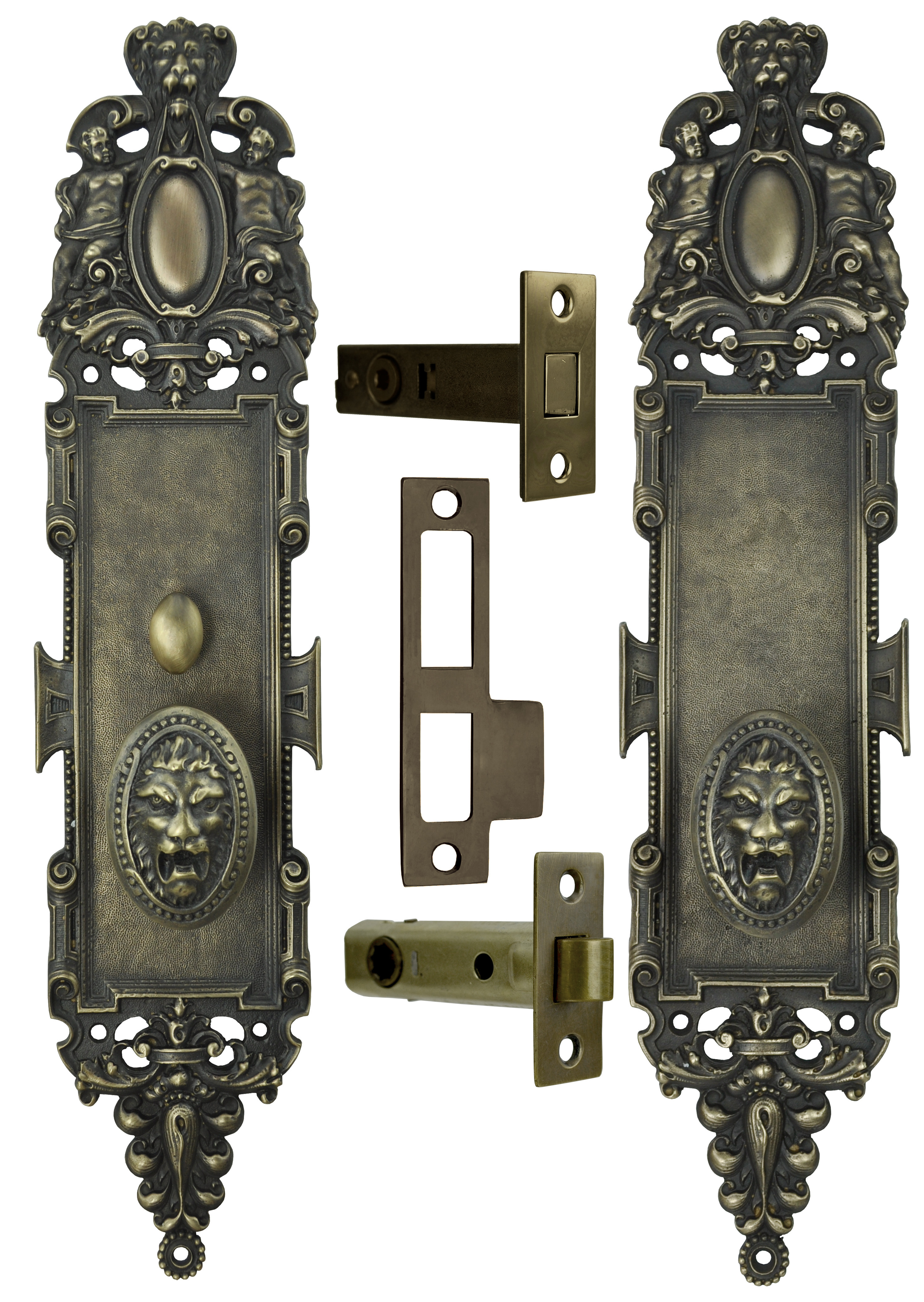

The Set Includes:

  • One Door Plate with Lower Knob Only Function
  • One Door Plate with Knob and Turnlatch Function
  • Two Doorknobs with the Connecting Spindle
  • One Tubular Passage Latch
  • One Tubular Deadbolt Latch
  • One Catchplate for Both Deadbolt and Passage Latch

Measurements:

  • Door Plates:  4" wide x 18" tall.
  • Doorknobs:  2" wide by 2 78" tall; each projects 2 38".
  • Passage Latch:
    • Face Plate:  1" wide x 2 ¼" tall.
    • Backset:  2 38"
    • Latch can be installed by drilling a 7/8" hole, then recessing the wood for the latch face.
  • Tubular Deadbolt:
    • Face Plate:  1 116" wide x 2 ¼" tall.
    • Case Length:  3 ¼" overall.
    • Backset:  2 38"
  • Catchplate:  4 ½" tall x 1" wide (minus tongue).

Mounting screws are included with all pieces of hardware in this set.
