Art Nouveau Style Lady Face Door Set with Locking Turnlatch Mortise (Z205MTSET)
Price: $838.50
Quantity:
Add to cart
Add to cart

Options:
Antique Brass Finish with 2 " Backset Mortise Lock
Antique Brass Finish with 2 ⅝" Backset Mortise Lock
Oil Rubbed Bronze Finish with 2 " Backset Mortise Lock
Oil Rubbed Bronze Finish with 2 ⅝" Backset Mortise Lock
Two-Tone Black & Brass Finish with 2 " Backset Mortise Lock
Two-Tone Black & Brass Finish with 2 ⅝" Backset Mortise Lock
Set Door Handing:
Left Hand
Right Hand
Art Nouveau Style Lady Face Door Set with Locking Turnlatch Mortise (Z205MTSET)

Art Nouveau Asian Lady Motif Replica Privacy Door Set
with Turnlatch Mortise Lock

Z205MTSET-DK1  Antique Brass Finish Door Set with 2 ¼" Backset Mortise Lock {PICTURED}
Z205MTSET-DK2  Antique Brass Finish Door Set with 2 58" Backset Mortise Lock {PICTURED}

Z205MTSET-OB1  Oil Rubbed Bronze Finish Door Set with 2 ¼" Backset Mortise Lock
Z205MTSET-OB2  Oil Rubbed Bronze Finish Door Set with 2 58" Backset Mortise Lock

Z205MTSET-2T1  Two-Tone Black & Brass Finish Door Set with 2 ¼" Backset Mortise Lock
Z205MTSET-2T2  Two-Tone Black & Brass Finish Door Set with 2 58" Backset Mortise Lock

More a work of art than a simple doorknobs and backplates.  The antique original is marked "Russwin" (formerly R&E), the famous Russell & Erwin manufacturers.  We assume that the originals were custom made, not a stock item.  The Morris influence is strong in this design.

This Interior Mortise Privacy Set locks from one side using a turnlatch.

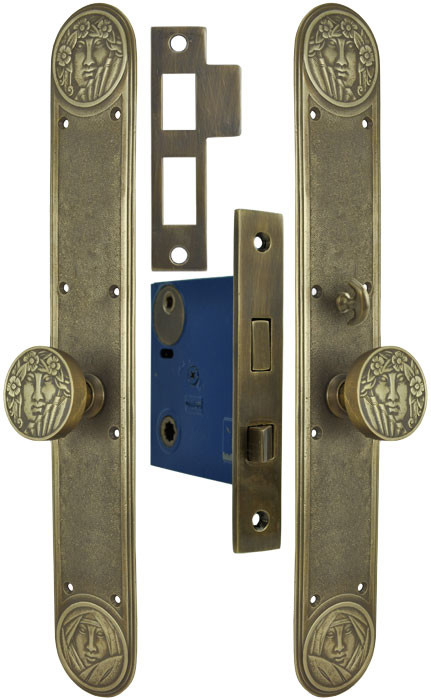

Each Set Includes:

  • 1 Door Plate with Lower Doorknob Only Function
  • 1 Door Plate with Lower Doorknob & Turnlatch Function
  • 2 Doorknobs with the Connecting Spindle
  • 1 Mortise Lock with Turnlatch Function (choice of 2 ¼" or 2 58" backset)

Measurements:

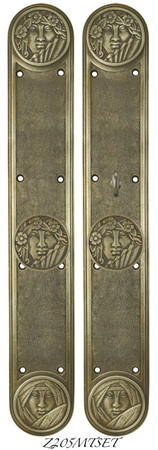

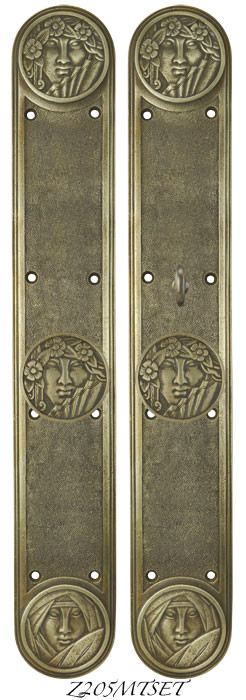

  • Door Plates:  2 58" wide by 17 38" long.
  • Doorknobs:  2 ¼" diameter; each projects 1 ¾".
  • Mortise Locks:
    • 2 ¼" Backset Lock:
      • Lock Body:  3 ¾" tall x 2 78" deep x 58" thick.
      • Faceplate:  1" wide x 6" tall; 316" thick.
      • Strike Plate:  4 ½" tall x 1" wide (plus tongue).
      • Distance from the center of the turnlatch receiver to the center of the doorknob spindle hub is 2 ½".
    • 2 58" Backset Lock:
      • Lock Body:  3 ¾" tall x 3 316" deep, and 58" thick.
      • Faceplate:  1" wide x 6" tall; 316" thick.
      • Strike Plate:  4 ½" tall x 1" wide (plus tongue).
      • Distance from the center of the turnlatch receiver to the center of the doorknob spindle hub is 2 ½".

Mounting screws are included for each piece of hardware in this set.
