Gothic Byzantine Door Plates Set with Turnlatch Mortise (Z230MTSET)
Price: $800.00
Quantity:
Add to cart
Add to cart

Options:
Antique Brass Finish with 2 " Backset
Antique Brass Finish with 2 ⅝" Backset
Oil Rubbed Bronze Finish with 2 " Backset
Oil Rubbed Bronze Finish with 2 ⅝" Backset
Set Door Handing:
Left Hand
Right Hand

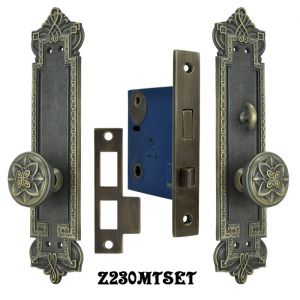

Gothic Byzantine Door Plates Set with Turnlatch Mortise (Z230MTSET)

Gothic Byzantine Interior Privacy Doorset
with Amiens Design Doorknobs and Turnlatch Mortise Lock

Z230MTSET-DK1  Antique Brass Finish with 2 ¼" Backset Mortise Lock
Z230MTSET-DK2  Antique Brass Finish with 2 58" Backset Mortise Lock

Z230MTSET-OB1  Oil Rubbed Bronze Finish with 2 ¼" Backset Mortise Lock
Z230MTSET-OB2  Oil Rubbed Bronze Finish with 2 58" Backset Mortise Lock

Excellent quality lost-wax cast brass Byzantine Gothic door plate set with superb detail!  This set is supplied with our beautiful Amiens design doorknobs for a complete presentation.

This door set is hand finished in a choice of our Antique Brass Finish (pictured) or our matte black Oil Rubbed Bronze Finish.

The interior mortise privacy set locks from one side only using a turnlatch operator.

The Complete Set Includes:

  • One Door Plate with Doorknob & Turnlatch Function
  • One Door Plate with Lower Doorknob Only Function
  • Two Doorknobs with the Connecting Spindle
  • One Mortise Lock with Turnlatch Function (choice of 2 ¼" or 2 58" backset)

Measurements:

  • Door Plates:  2 ¾" wide x 12 38" tall.
  • Doorknobs:  2 38" diameter; each projects 2 18".
  • Mortise Locks:
    • 2 ¼" Backset Lock:
      • Lock Body:  3 ¾" tall x 2 78" deep x 58" thick.
      • Faceplate:  1" wide x 6" tall; 316" thick.
      • Strike Plate:  4 ½" tall x 1" wide (plus tongue).
      • Distance from the center of the turnlatch receiver to the center of the doorknob spindle hub is 2 ½".
    • 2 58" Backset Lock:
      • Lock Body:  3 ¾" tall x 3 316" deep, and 58" thick.
      • Faceplate:  1" wide x 6" tall; 316" thick.
      • Strike Plate:  4 ½" tall x 1" wide (plus tongue).
      • Distance from the center of the turnlatch receiver to the center of the doorknob spindle hub is 2 ½".

Mounting screws for all hardware will be supplied.
