Gothic Byzantine Complete Entry Set (Z230SET)
Price: $991.00
Quantity:
Add to cart
Add to cart

Cylinder Length:
L-9CC 1" Cylinder
L-9C4 1 1/4" Cylinder
L-150S 1 1/2" Cylinder
L-175S 1 3/4" Cylinder
Set Door Handing:
Left Hand
Right Hand

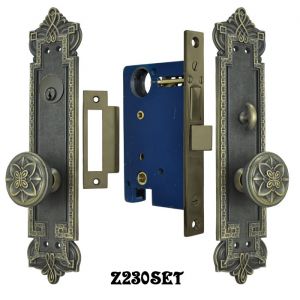

Gothic Byzantine Complete Entry Set (Z230SET)

Z230SET  Gothic Byzantine Complete Entry Set

Excellent quality lost-wax cast brass Byzantine Gothic door plate Entry Set has superb detail. Made of solid brass, then hand darkened to an antique finish, and lacquered to preserve its color.

The complete set includes:

1.  One Interior Door Plate with Turnlatch

2.  One Exterior Door Plate

3.  One Entry Mortise Lock

4.  Two Doorknobs with Connecting Spindle

5.  One Cylinder Lock.. See our Lock Cylinder Size Chart to select the correct cylinder length for your door.

Measurements:

Door>Plates:  Measures 12 3/8" tall by 2 3/4" wide.; distance from the center of the doorknob receiver hole to the center of the round bit of keyhole is 2 1/4".

Doorknobs:  2 3/8"diameter and 2 1/8" tall.

Mortise lock:  Lock body measurement is 5 1/2" tall x 3 5/8" deep; 13/16" thick.  The faceplate measures 1" wide by 7 1/2" tall.

The backset is 2 1/2", including the thickness of the faceplate; the distance from the center of the bolt throw hole to the center of the door knob spindle hub is 2 3/8".  Catch plate is 4 7/8" long by 1 7/8" wide.  Mounting screws are included.
