Victorian Amiens Gothic Door Plates Set with Locking Keyed Mortise Lock (Z260MKKSET)
Price: $820.00
Quantity:
Add to cart
Add to cart

Options:
Antique Brass Finish with 2 " Backset
Antique Brass Finish with 2 ⅝" Backset
Oil Rubbed Bronze Finish with 2 " Backset
Oil Rubbed Bronze Finish with 2 ⅝" Backset
Set Door Handing:
Left Hand
Right Hand

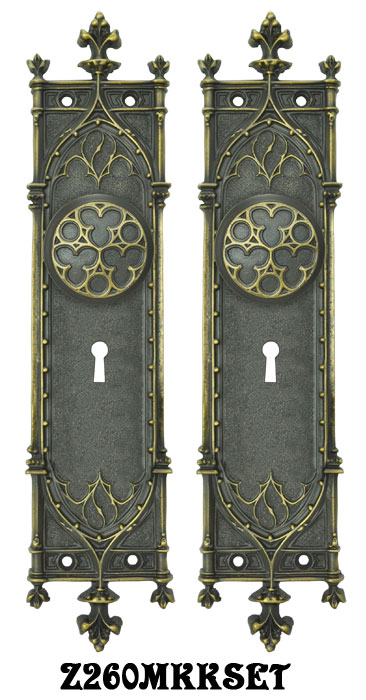

Victorian Amiens Gothic Door Plates Set with Locking Keyed Mortise Lock (Z260MKKSET)

Replica Gothic Amiens Doorset
with Amiens Design Doorknobs and Skeleton Keyed Mortise Lock

Z260MKKSET-DK1  Antique Brass Finish with 2 ¼" Backset Mortise Lock
Z260MKKSET-DK2  Antique Brass Finish with 2 58" Backset Mortise Lock

Z260MKKSET-OB1  Oil Rubbed Bronze Finish with 2 ¼" Backset Mortise Lock
Z260MKKSET-OB2  Oil Rubbed Bronze Finish with 2 58" Backset Mortise Lock

Amiens was a church and town in France famous for its Gothic Architecture.  Excellent quality lost-wax cast brass door plate set with superb detail!  This set is supplied with our beautiful Amiens design doorknobs for a complete presentation.

This door set is hand finished in a choice of our Antique Brass Finish (pictured) or our matte black Oil Rubbed Bronze Finish.

The interior mortise passage set locks from both sides using a skeleton key.

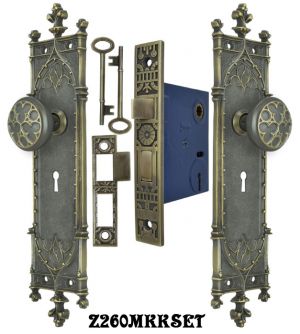

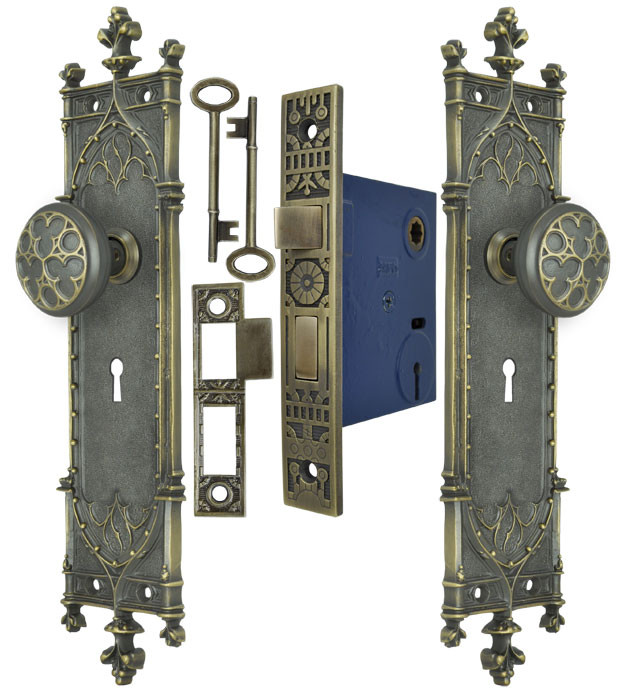

The Complete Set Includes:

  • Two Door Plates with Doorknob & Keyhole Function
  • Two Doorknobs with the Connecting Spindle
  • One Mortise Lock with 2 Skeleton Keys (choice of 2 ¼" or 2 58" backset)

Measurements:

  • Door Plates:  3" wide x 13 58" tall.
  • Doorknobs:  2 18" diameter; each projects 2 14".
  • Mortise Locks:
    • 2 ¼" Backset Lock:
      • Lock Body:  3 ¾" tall x 2 78" deep x 58" thick.
      • Faceplate:  1" wide x 6" tall; 316" thick.
      • Strike Plate:  4 ½" tall x 1" wide (plus tongue).
      • Distance from the center of the doorknob receiver to the center of the round keyhole bit is 2 ¼".
    • 2 58" Backset Lock:
      • Lock Body:  3 ¾" tall x 3 316" deep, and 58" thick.
      • Faceplate:  1" wide x 6" tall; 316" thick.
      • Strike Plate:  4 ½" tall x 1" wide (plus tongue).
      • Distance from the center of the doorknob receiver to the center of the round keyhole bit is 2 ¼".

Mounting screws for the hardware are included with each set.
