Gothic Amiens Interior Passage Set with Locking Turnlatch (Z260PTSET)
Price: $810.00

Options:

Antique Brass Finish
Oil Rubbed Bronze Finish
Gothic-Amiens-Interior-Passage-Set-with-Locking-Turnlatch-(Z260PTSET)

Move mouse over image to Zoom..

Victorian Gothic Tubular Door Set
with Locking Privacy Turnlatch - 2 38" Backset

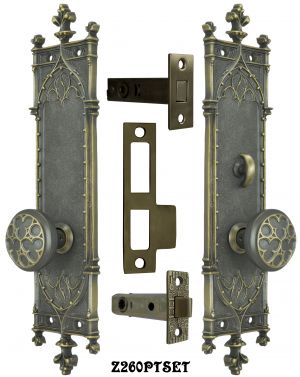

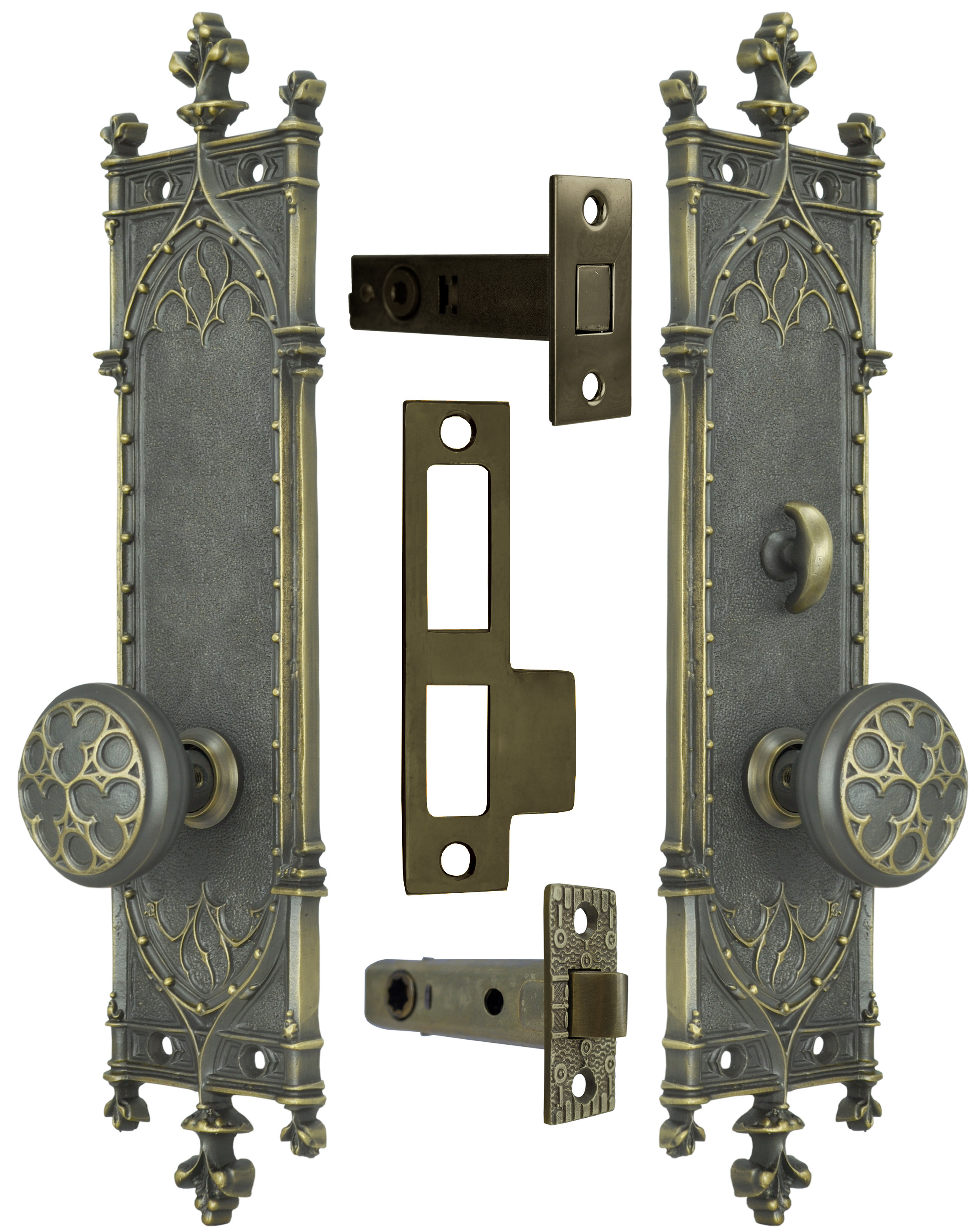

Z260PTSET-DK  Antique Brass Finish Gothic Amiens Interior Locking Passage Set {PICTURED}

Z260PTSET-OB  Oil Rubbed Bronze Finish Gothic Amiens Interior Locking Passage Set

Cast in solid brass, using the Lost Wax casting method to preserve the details of the original. Amiens was a church and town in France famous for its Gothic architecture.

This set is an interior privacy set that locks from one side using a turnlatch.  Ideal for those who don't want to mortise out a door for a full mortise box.  Instead, this set comes with a tubular passage latch and a tubular deadbolt.

This complete door set is available in our hand-finished Antique Brass Finish {Pictured}, or our matte black Oil Rubbed Bronze Finish.

The Set Includes:

  • One Door Plate with Lower Knob Only Function
  • One Door Plate with Knob and Turnlatch Function
  • Two Doorknobs with the Connecting Spindle
  • One Tubular Passage Latch
  • One Tubular Deadbolt Latch
  • One Catchplate for Both Deadbolt and Passage Latch

Measurements:

  • Door Plates:  3" wide x 13 58" tall.
  • Doorknobs:  2 18" diameter; each projects 2 ¼".
  • Passage Latch:
    • Face Plate:  1" wide x 2 ¼" tall.
    • Backset:  2 38"
    • Latch can be installed by drilling a 7/8" hole, then recessing the wood for the latch face.
  • Tubular Deadbolt:
    • Face Plate:  1 116" wide x 2 ¼" tall.
    • Case Length:  3 ¼" overall.
    • Backset:  2 38"
  • Catchplate:  4 ½" tall x 1" wide (minus tongue).

Mounting screws are included with all pieces of hardware in this set.
