Large Gothic Amiens Interior Passage Door Set (Z270LPSET)
Price: $806.00

Options:

Antique Brass Finish
Oil Rubbed Bronze Finish

Extra:

Add L-100-1 Modern Door Fit Up Kit
Large-Gothic-Amiens-Interior-Passage-Door-Set-(Z270LPSET)

Move mouse over image to Zoom..

Tall Gothic Amiens Interior Passage Latch Doorset
with Lower Knob Position - 2 38" Backset

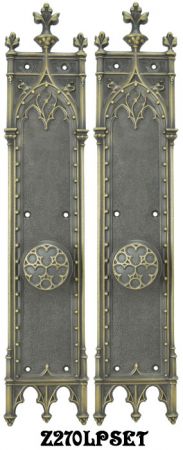

Z270LPSET-DK  Antique Brass Finish 18 58" Tall Gothic Amiens Tubular Door Set {PICTURED}

Z270LPSET-OB  Oil Rubbed Bronze Finish 18 58" Tall Gothic Amiens Tubular Door Set

Amiens was a church and town in France famous for its Gothic Architecture.  Excellent quality lost-wax cast brass door plate set with superb detail!  This set is supplied with our beautiful Amiens design doorknobs for a complete presentation.

This door set is hand finished in a choice of our Antique Brass Finish (pictured) or our matte black Oil Rubbed Bronze Finish.

This is a non-locking interior passage latch set.

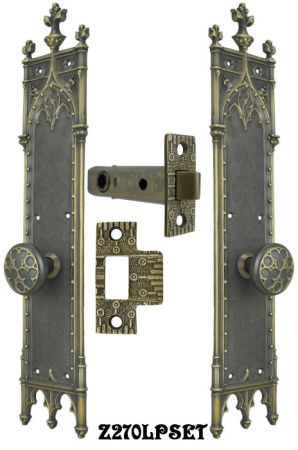

The Complete Set Includes:

  • Two Door Plates with Low Doorknob Only Function
  • Two Doorknobs with the Connecting Spindle
  • One Tubular Passage Latch with Catchplate

Measurements:

  • Door Plates:  3 58" wide x 18 58" tall.
  • Doorknobs:  2 18" diameter; each projects 2 ¼".
  • Passage Latch:
    • Face Plate:  1" wide x 2 ¼" tall.
    • Backset:  2 38"
    • Latch can be installed by drilling a 7/8" hole, then recessing the wood for the latch face.

Mounting screws for the hardware are included with each set.

*  Modern Door Fit Up Kit:  This item changes the modern ugly round holes in doors so that antique hardware can be used.  This adapter plate will work with our L-6 tubular passage latch.  Door must be a minimum of 1 1/8" thick.  Plastic sleeve slides over the latch body, and is held in position by screwing metal halves together.
