Large Victorian Amiens Gothic Door Plates Set with Locking Keyed Mortise Lock (Z270MKSET)
Price: $840.00
Quantity:
Add to cart
Add to cart

Options:
Antique Brass Finish with 2 1/4" Backset
Antique Brass Finish with 2 5/8" Backset
Oil Rubbed Bronze Finish with 2 1/4" Backset
Oil Rubbed Bronze Finish with 2 5/8" Backset
Set Door Handing:
Left Hand
Right Hand
Large Victorian Amiens Gothic Door Plates Set with Locking Keyed Mortise Lock (Z270MKSET)

Interior Privacy Tall Gothic Amiens Doorset
with Amiens Design Doorknobs and Skeleton Keyed Mortise Lock

Z270MKSET-DK1  Antique Brass Finish with 2 ¼" Backset Mortise Lock
Z270MKSET-DK2  Antique Brass Finish with 2 58" Backset Mortise Lock

Z270MKSET-OB1  Oil Rubbed Bronze Finish with 2 ¼" Backset Mortise Lock
Z270MKSET-OB2  Oil Rubbed Bronze Finish with 2 58" Backset Mortise Lock

Amiens was a church and town in France famous for its Gothic Architecture.

Excellent quality lost-wax cast brass door plate set with superb detail!  This set is supplied with our beautiful Amiens design doorknobs for a complete presentation.

This door set is hand finished in a choice of our Antique Brass Finish (pictured) or our matte black Oil Rubbed Bronze Finish.

The interior mortise privacy set locks from one side only using a skeleton key.

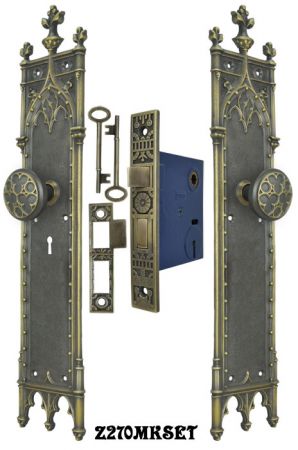

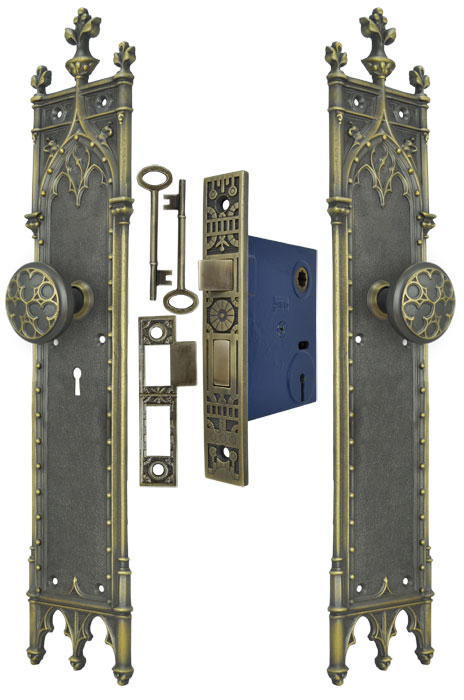

The Complete Set Includes:

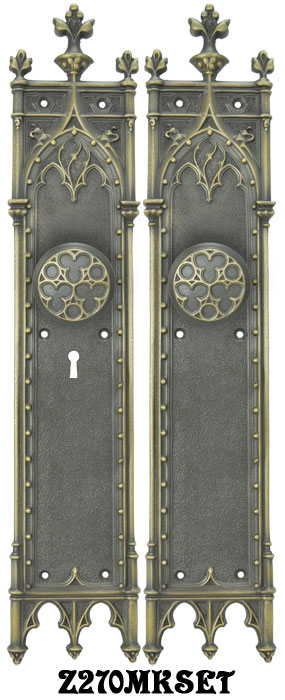

  • One Door Plate with Doorknob & Keyhole Function
  • One Doorplate with Knob Only Function
  • Two Doorknobs with the Connecting Spindle
  • One Mortise Lock with 2 Skeleton Keys (choice of 2 ¼" or 2 58" backset)

Measurements:

  • Door Plates:  3 58" wide x 18 58" tall.
  • Doorknobs:  2 18" diameter; each projects 2 14".
  • Mortise Locks:
    • 2 ¼" Backset Lock:
      • Lock Body:  3 ¾" tall x 2 78" deep x 58" thick.
      • Faceplate:  1" wide x 6" tall; 316" thick.
      • Strike Plate:  4 ½" tall x 1" wide (plus tongue).
      • Distance from the center of the doorknob receiver to the center of the round keyhole bit is 2 ¼".
    • 2 58" Backset Lock:
      • Lock Body:  3 ¾" tall x 3 316" deep, and 58" thick.
      • Faceplate:  1" wide x 6" tall; 316" thick.
      • Strike Plate:  4 ½" tall x 1" wide (plus tongue).
      • Distance from the center of the doorknob receiver to the center of the round keyhole bit is 2 ¼".

Mounting screws for the hardware are included with each set.
