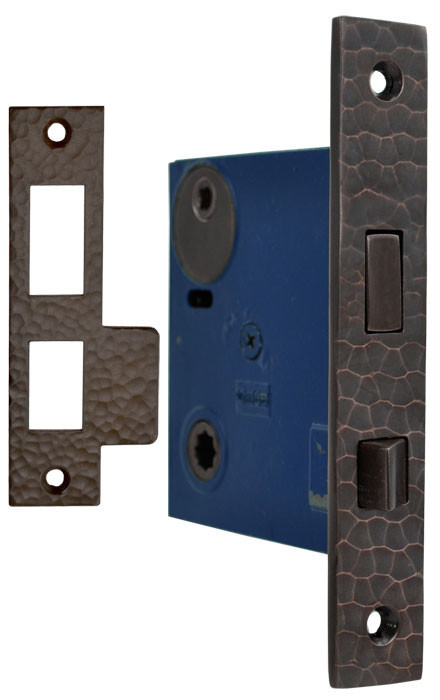

ZC-299TL Lock Reproduction Hammered Copper 2 5/8" Backset - Choice of Function with Turnlatch Function
This is an Arts & Crafts lock to match with the ZC-series door plates. Faceplate and catch are carved from a solid block of copper, then hammered by hand. Lock operation works like silk.
The faceplate is 6" long by 1" wide. The lock body is 3 3/4" long by about 3" wide (excluding the lip of the faceplate). The lock body is 5/8" thick. Backset is 2 5/8".
Catchplate is 4 1/2" long by 1" wide (excluding the catchplate tongue).
ZC-299TL Mortile Lock with Turnlatch Function. The distance from the doorknob receiver to the turnlatch receiver is 2 1/2". Turnlatch is not included. Please look at our selection of copper door plates with turnlatch knob included, to finish your Arts & Crafts door. An example of the matching door plate is ZC-19TL . We have three suites of hammered copper design: plain, Field Pattern, and Pacific Pattern. Look for the "TL" suffix to identify turnlatch door plates.
For this same lock with a 2 1/4" backset, please look at ZC-400TL
