Lock Reproduction Copper Face 2 1/4" Backset Mortise Lock for Arts & Crafts or Mission Style

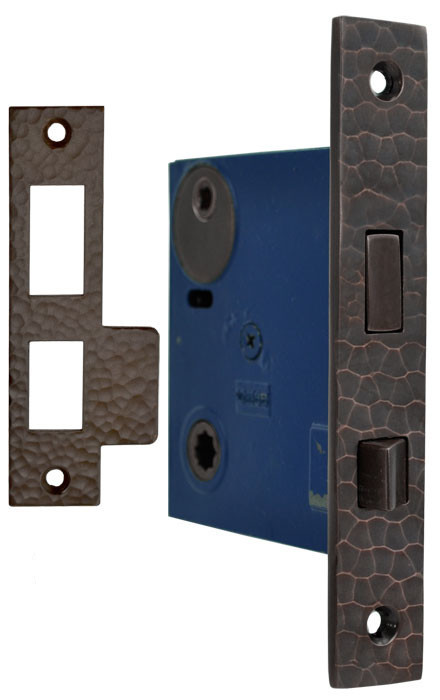

This is an Arts & Crafts lock to match with the ZC-series door plates. Faceplate and catch are carved from a solid block of copper, then hammered by hand. Lock operation works like silk.
ZC-400TL - Mortise with turnlatch function. Center to center distance from the doorknob receiver to the turnlatch receiver is 2 1/2". Turnlatch is not included, please see our collection of door plates with built in turnlatch knob, such as ZC-19TL . We offer all three Arts & Crafts pattern door plates with a turnlatch option. Look for the "TL" suffix to identify turnlatch door plates.
The faceplate is 6" long by 1" wide. The lock body is 3 3/4" long by about 3" wide (excluding the lip of the faceplate). The lock body is 5/8" thick.
Backset is 2 1/4".
Catchplate is 4 1/2" long by 1" wide (excluding the catchplate tongue).
For a lock with a 2 5/8" backset, please look at ZC-299TL
