Arts & Crafts Entry Thumblatch Hammered Double Door Plate Set (ZC103DBS1)
Price: $1674.50

Cylinder Length:

L-9CC 1" Cylinder
L-9C4 1 1/4" Cylinder
L-150S 1 1/2" Cylinder
L-175S 1 3/4" Cylinder

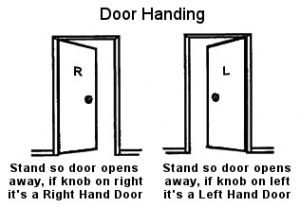

Set Door Handing:

Left Hand
Right Hand

Move mouse over image to Zoom..

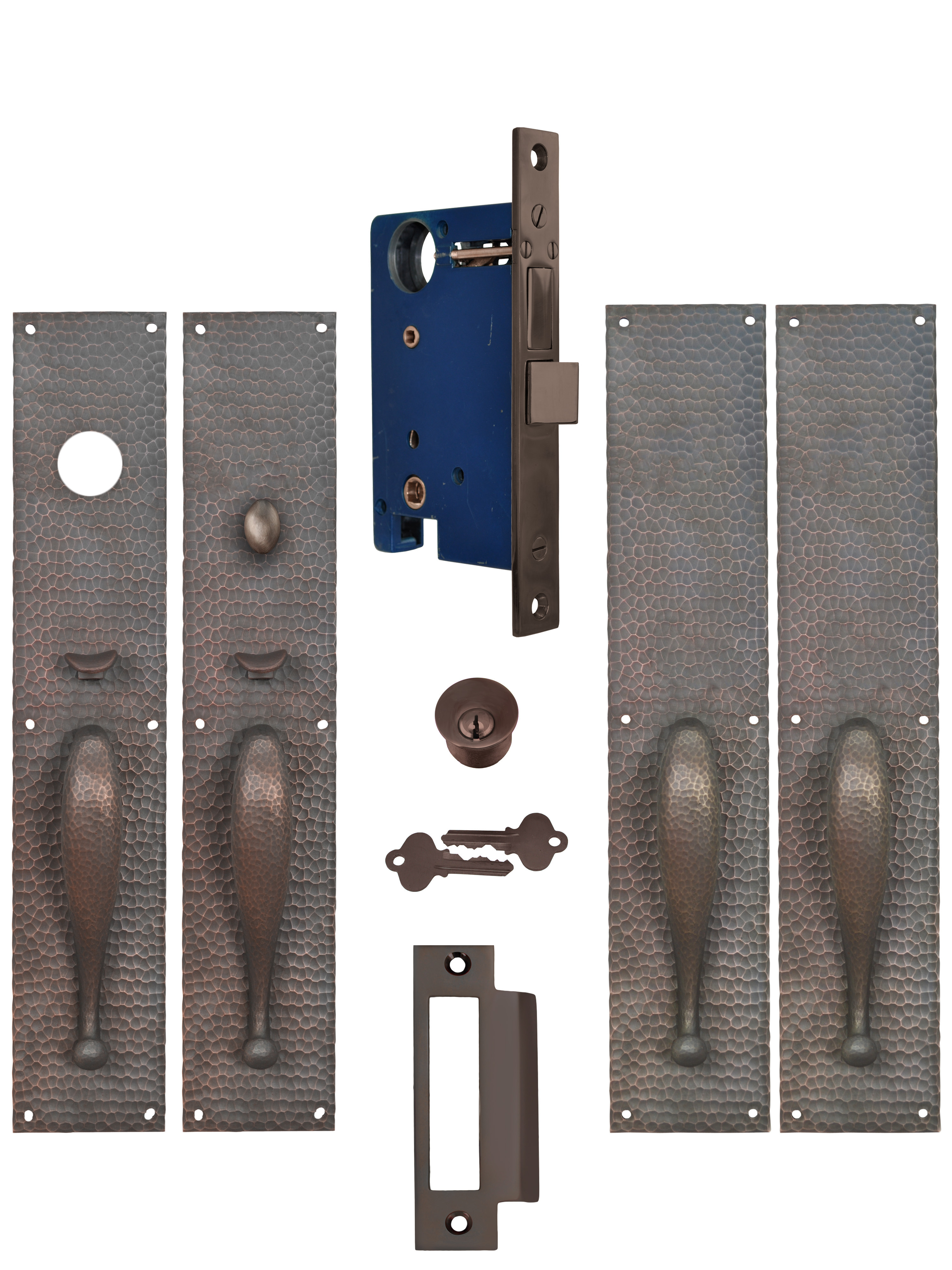

ZC103DBS1 Arts & Crafts Hammered Copper Thumblatch Entry Double Door Plate Set

We don't mean just an arts & crafts style; Each door plate is created by skilled craftsmen from sheet copper using hundreds of blows. We put a darkened patina finish for a great Arts & Crafts or Mission look.

The complete double door set includes:

  1. Interior Door Plate
  2. Exterior Door Plate
  3. Interior Dummy Door Plate
  4. Exterior Dummy Door Plate
  5. Mortise Lock
  6. Cylinder Lock. See our Lock Cylinder Size Chart to select the correct cylinder length for your door.

Backplates Measures 19" high by 3 1/2" wide by.

The distance from the center of the cylinder hole to the thumb latch bolt is 4 3/4".

Lock body measures 5 1/2" tall by 3 5/8" deep. 13/16" thickness.

Lock face is 1" wide by 7 1/2" long.

Backset is 2 1/2", including the thickness of the face plate.

Distance from the center of the bolt throw hole to the center of the door knob spindle hole is 2 1/2".

Catch plate is 4 7/8" long by 1 7/8".
