Arts & Crafts Entry Thumblatch to Knob Hammered Double Door Set (ZC103DBS2)
Price: $1323.00

Cylinder Length:

L-9CC 1" Cylinder
L-9C4 1 1/4" Cylinder
L-150S 1 1/2" Cylinder
L-175S 1 3/4" Cylinder

Set Door Handing:

Left Hand
Right Hand
Arts-and-Crafts-Entry-Thumblatch-to-Knob-Hammered-Double-Door-Set-(ZC103DBS2)

Move mouse over image to Zoom..

ZC103DBS2  Arts & Crafts Hammered Copper Thumblatch to Doorknob Entry Double Door Plate Set

We don't mean just any Arts & Crafts style!  Each door plate is created by skilled craftsmen from sheet copper using hundreds of blows.  We apply a darkened patina finish for a great Arts & Crafts or Mission look.

This beautiful set of door hardware features our knob to thumblatch option, so the doorknobs sit on the interior of your double doors and the thumblatch doorplates sit on the exterior.

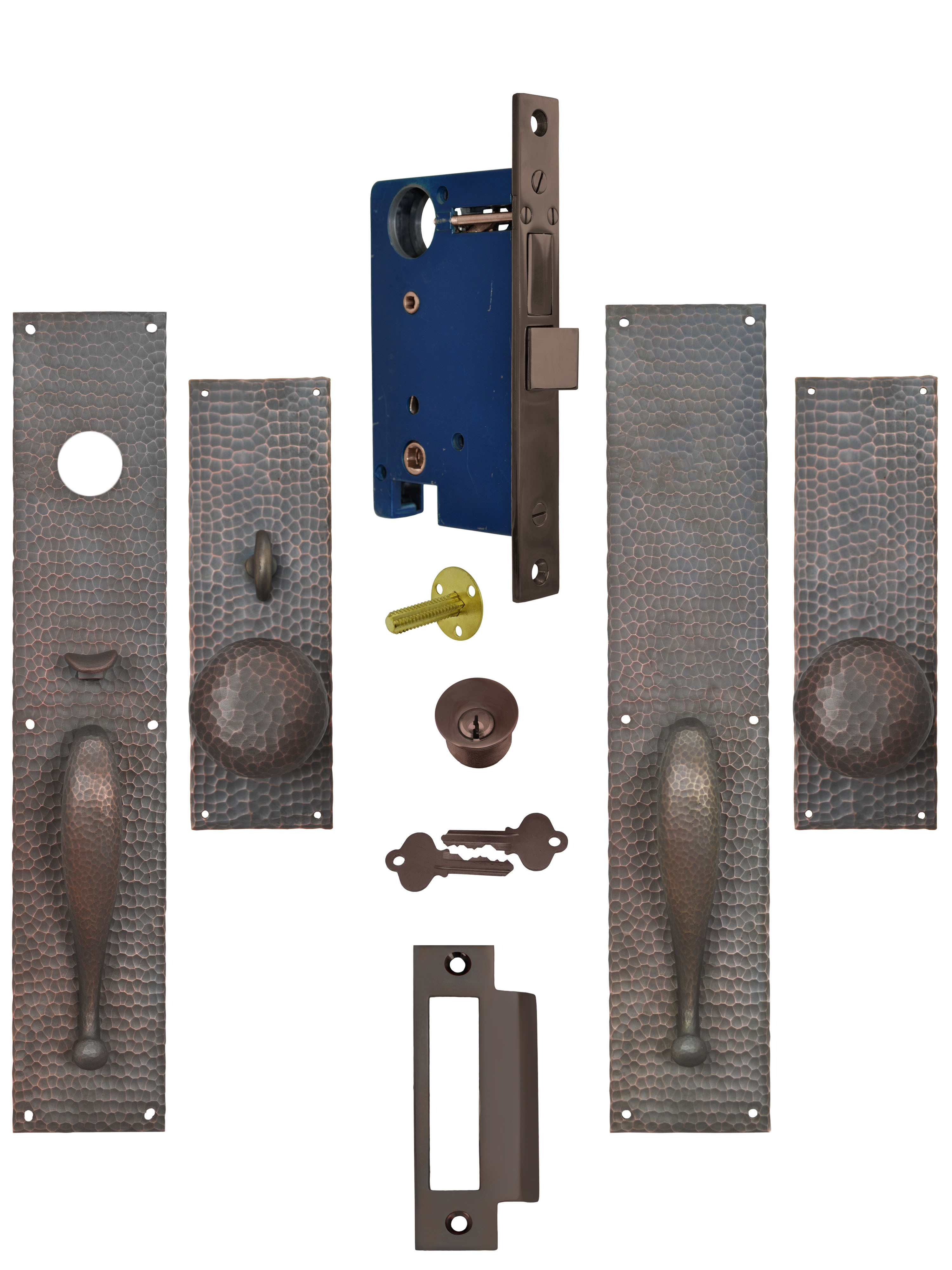

The complete double door set includes:

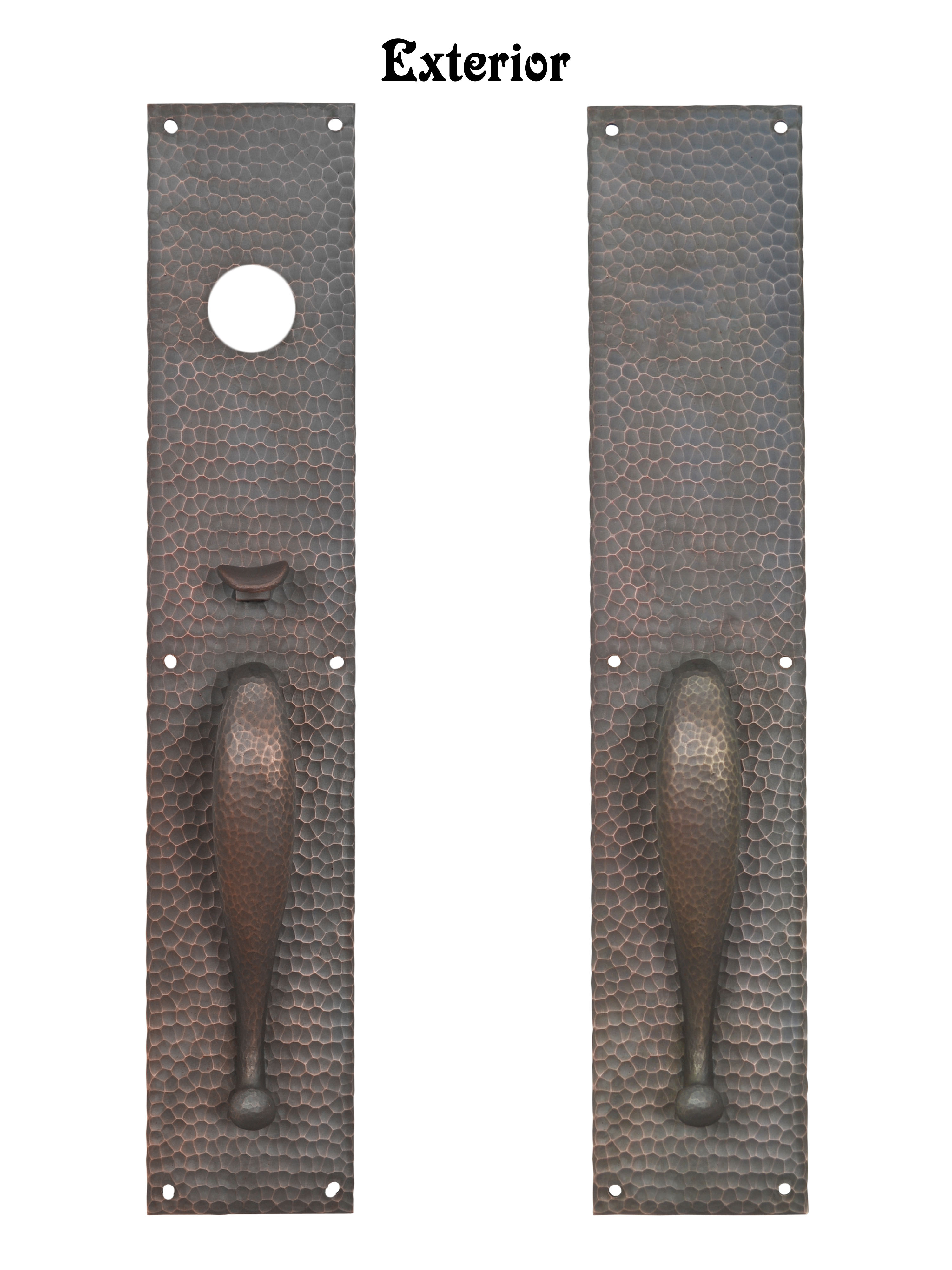

  • Exterior:
    • One Thumblatch Entry Door Plate
    • One "Handle Only" Dummy Door Plate

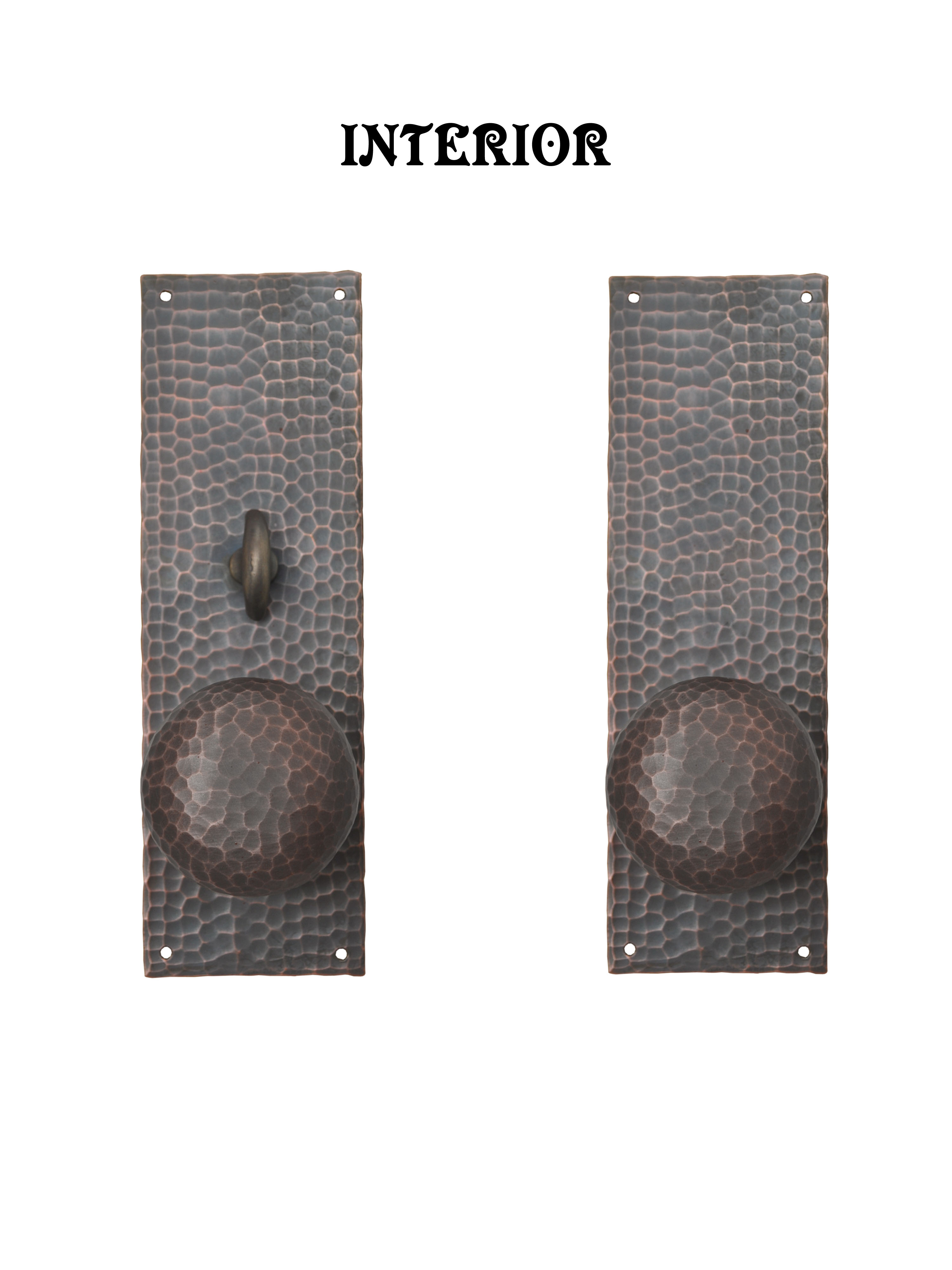

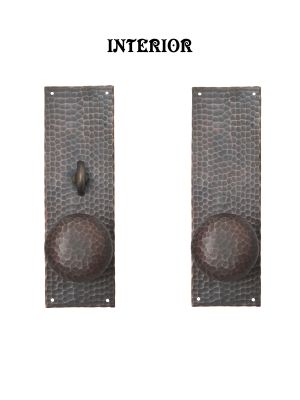

  • Interior:
    • One Doorknob Plate with Turnlatch Function
    • One Dummy Door Plate with "Low Knob Only" Function
    • Two Arts & Crafts Doorknobs
    • One Active Side Doorknob Half Spindle
    • One Passive Side Doorknob Dummy Spindle
  • Also Included:
    • One Mortise Lock
    • One Cylinder Lock

Measurements:

  • Exterior Doorplates:  19" tall x 3 ½" wide.
  • Interior Doorplates:  8" tall x 2 ½" wide.
  • Doorknobs:  2 38" diameter; each projects 2 ¼".
  • Lock Measurements:
    • Lock body measures 5 ½" tall by 3 58" deep.  1316" thickness.
    • Backset:  2 ½", including the thickness of the face plate.
    • Lock Face:  1" wide by 7 ½" long.
    • Catch Plate:  4 78" long by 1 78".
    • Distance from the center of the cylinder receiver to the thumb latch stem is 4 ¾".
    • Distance from the center of the bolt throw hole to the center of the door knob spindle hole is 2 ½".

Mounting screws are included for each piece of hardware in this set.
