P&F Corbin Toulon Plate Double Door Entry Set 22 1/4" Tall (ZLW201DBS)
Price: $1420.00


Polished Unlacquered Brass
Antique Brass Finish
Oil Rubbed Bronze Finish

Cylinder Length:

L-9CC 1" Cylinder
L-9C4 1 1/4" Cylinder
L-150S 1 1/2" Cylinder
L-175S 1 3/4" Cylinder

Set Door Handing:

Left Hand
Right Hand

Move mouse over image to Zoom..

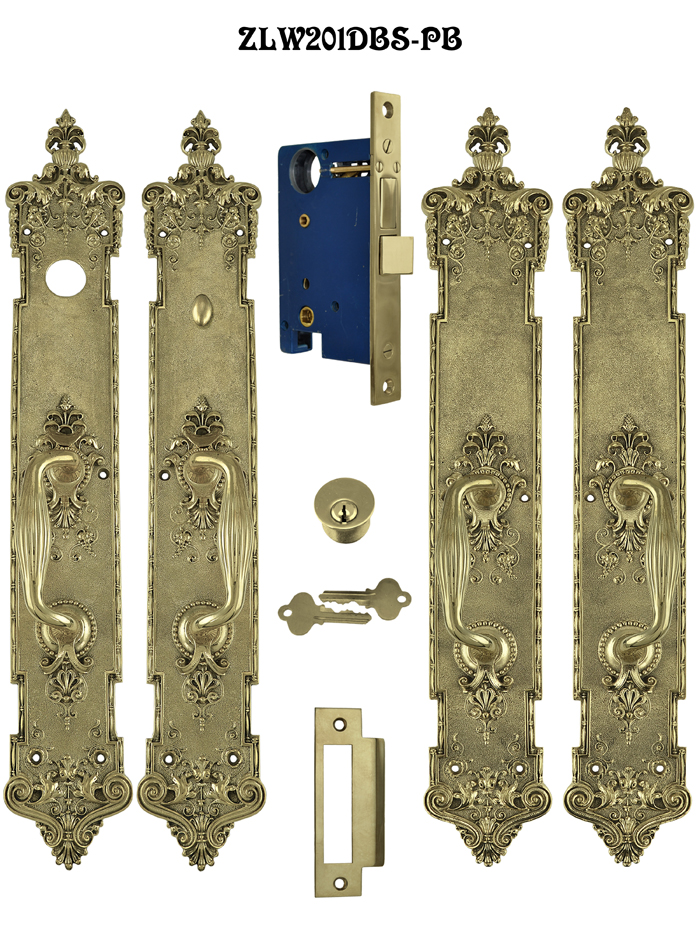

ZLW201DBS-PB  Polished Unlacquered Brass P&F Corbin Toulon Double Door Plate Entry Set 22 ¼" Tall {PICTURED}

ZLW201DBS-DK  Antique Brass Finish P&F Corbin Toulon Double Door Plate Entry Set 22 ¼" Tall

ZLW201DBS-OB  Oil Rubbed Bronze Finish P&F Corbin Toulon Double Door Plate Entry Set 22 ¼" Tall

Here is an outstanding double door entrance plate set from the Corbin catalog for 1905. Naturally, they made this before this time, but this is just the first reference we could find. Corbin gave this plate style the name "Toulon Design," which is of the French Renaissance school of design.

This is a Complete Entry Door Set for double or French-type entry doors.

The Set Includes:

  • One Interior Door Plate with Turnlatch Function
  • One Exterior Door Plate
  • Two "Handle Only" Dummy Door Plates
  • One Mortise Lock
  • One Cylinder Lock


  • Doorplates:  3 ½" wide by 22 ¼" tall.
  • Entry Mortise Lock:
    • Lock Body:  5 ½" tall x 3 58" deep.  1316" thickness.
    • Backset:  2 ½", including the thickness of the face plate.
    • Distance from the center of the bolt throw hole to the center of the door knob spindle hole is 2 ½".
    • Distance from the center of the cylinder receiver to the thumb latch stem is 4 ¾".
    • Lock Face:  1" wide by 7 ½" tall.
    • Catch Plate:  4 78" long by 1 78".

Please see our Lock Cylinder Size Chart to determine the correct cylinder length for your door.

Mounting screws are provided for all pieces of hardware in this set.

To stabilize and secure the dummy (or inactive) side of your double doors, we offer a number of Antique Reproduction Door Security Bolts on our website.



Customers who bought this item also bought:

French Door Bolt - 12" Long Door Bolt With Catches (M-1412)
Previous1 of 2Next

Price: $68.15
French Door Bolt - 12" Long Surface Bolt With Catches - Choice Of Finish (M-1312)

Price: $51.95
French Door Bolt - Lost Wax Cast French DoorBolt (ZLW-163FB)
Previous1 of 2Next

Price: $195.00
Half Mortise Slide Bolt 1" X 8" (L-56W)

Price: $29.84
Narrow Mortise Slide Bolt 3/4" X 8" (L-55N)

Price: $25.94
P&F Corbin Toulon Door Plate Entry Set 22 1/4" Tall (ZLW201SET)
Previous1 of 2Next

Price: $830.00

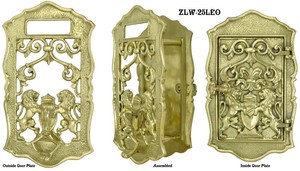

Rampart Lions Speakeasy Set With Doorknocker or Peephole (ZLW-25LEO)
