Victorian-Inspired Lion Head Thumb Latch Entry Door Set with Locking Mortise (ZLW202SET)
Price: $1,270.00
Quantity:
Add to cart
Add to cart

Options:
Polished Brass (ZLW-202TL + L-9SP/DL + L-9CC + L-23 + L-30A)
Antique Brass Finish (ZLW-DK202TL + L-DK9SP/DL + L-DK9CC + L-DK23 + L-DK30A)
Oil-Rubbed Bronze Finish (ZLW-OB202TL + L-OB9SP/DL + L-OB9CC + L-OB23 + L-OB30A)
Cylinder Length:
L-9CC 1" Cylinder
L-9C4 1 1/4" Cylinder
L-150S 1 1/2" Cylinder
L-175S 1 3/4" Cylinder
Set Door Handing:
Left Hand
Right Hand
Victorian-Inspired Lion Head Thumb Latch Entry Door Set with Locking Mortise (ZLW202SET)



ZLW202SET-PB Polished Brass Victorian-Inspired Lion Head Thumb Latch Entry Door Set with Locking Mortise

ZLW202SET-DK Antique Brass Finish Victorian-Inspired Lion Head Thumb Latch Entry Door Set with Locking Mortise

ZLW202SET-OB Oil-Rubbed Bronze Victorian-Inspired Lion Head Thumb Latch Entry Door Set with Locking Mortise

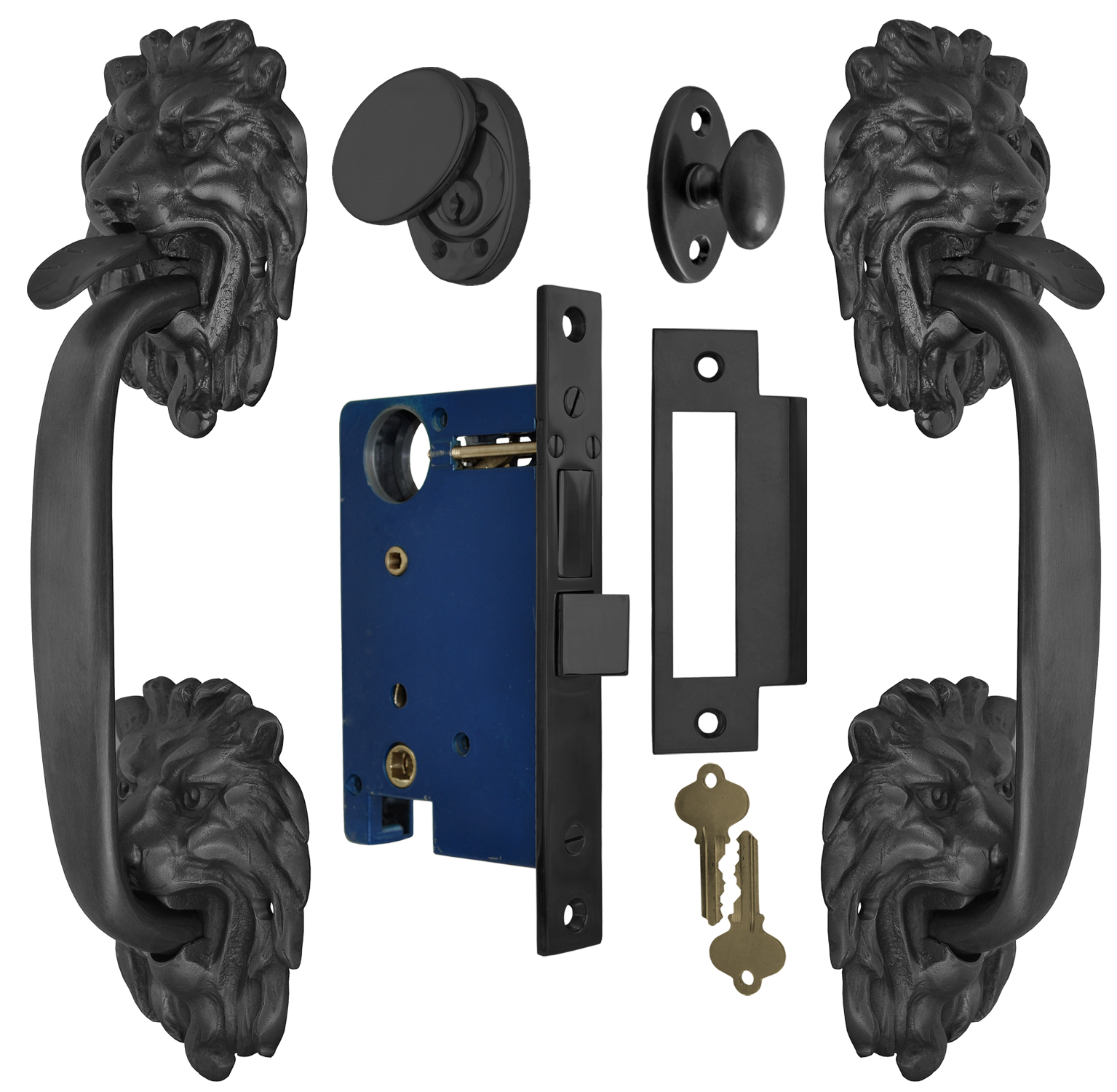

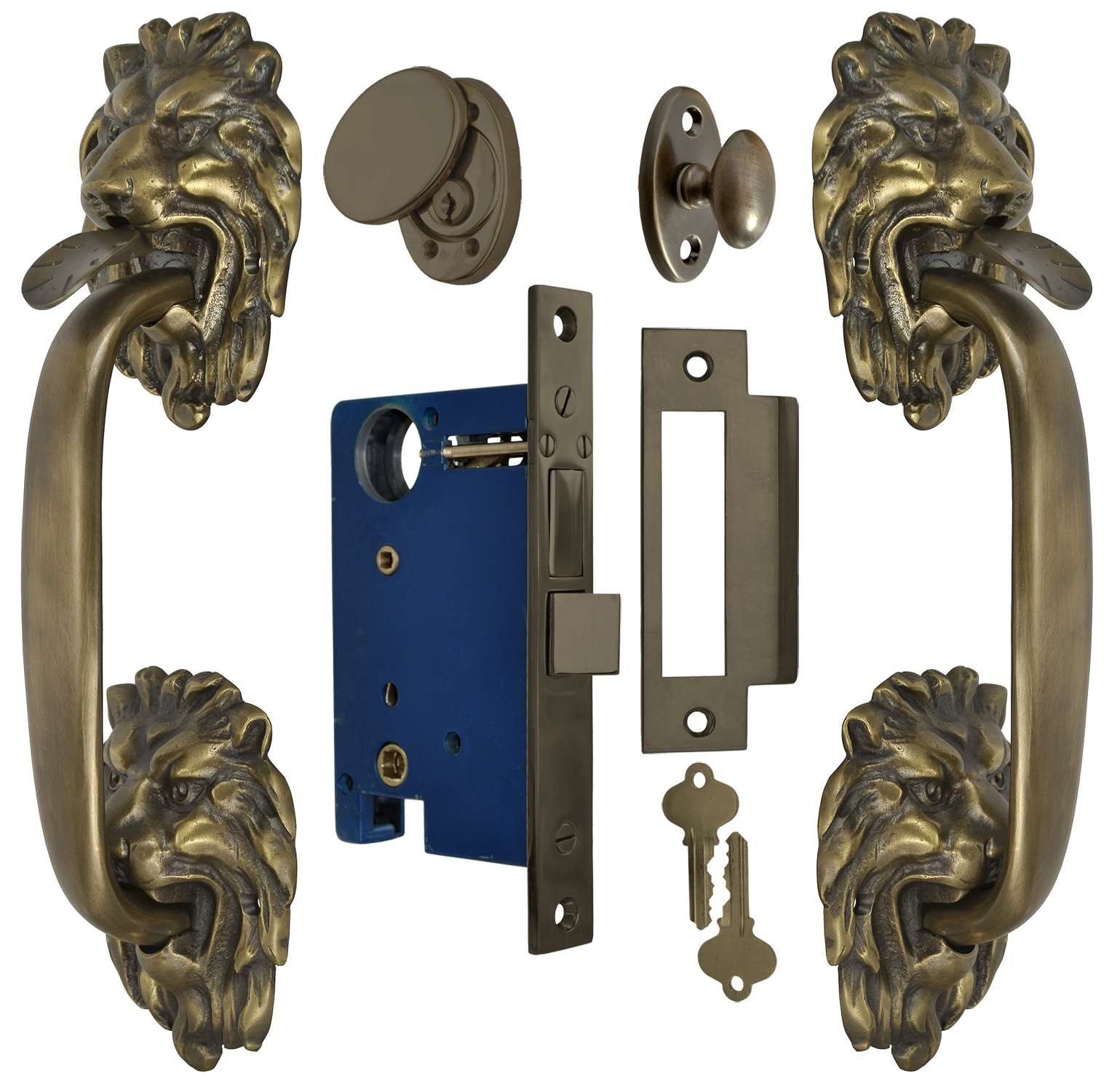

This complete door set comes in three finishes: Polished Brass, an aged Antique Brass Finish, or our matte black Oil-Rubbed Bronze Finish.

The complete door set includes:

  • Two Lion Head Thumb Latch Door Handles
  • One Mortise Lock Set
  • One Cylinder Lock (with Keys)
  • One Cylinder Lock Cover Plate
  • One Turn Latch Knob

Measurements:

  • Door Handles:  13 3/4" high by 4 1/4" wide by 2 1/2" deep.
  • Lock Cylinder Cover Plate:  2 1/2" high by 1 3/4" wide.
  • Turn Latch Knob:  Knob is 1 1/8" high by 3/4" wide. Backplate is 2" high by 1 1/8" wide.
  • Mortise Lock:
    • Lock Body:  5 ½" tall by 3 58" deep.  1316" thickness.
    • Backset:  2 ½", including the thickness of the face plate.
    • Lock Face:  1" wide by 7 ½" long.
    • Catch Plate is 4 78" long by 1 78".
    • Distance from the center of the cylinder receiver to the thumb latch stem is 4 ¾".
    • Distance from the center of the bolt throw hole to the center of the door knob spindle hole is 2 ½".

Please see our Lock Cylinder Size Chart to determine the correct cylinder length for your door.

Mounting screws are provided for all pieces of hardware in this set.
