Victorian Amiens Gothic Locking Mortise Entry Door Set 22 3/4" Tall (ZLW275SET)
Price: $1095.00

Options:

Antique Brass Finish
Oil Rubbed Bronze Finish

Cylinder Length:

L-9CC 1" Cylinder
L-9C4 1 1/4" Cylinder
L-150S 1 1/2" Cylinder
L-175S 1 3/4" Cylinder

Set Door Handing:

Left Hand
Right Hand
Victorian-Amiens-Gothic-Locking-Mortise-Entry-Door-Set-22-3/4

Move mouse over image to Zoom..

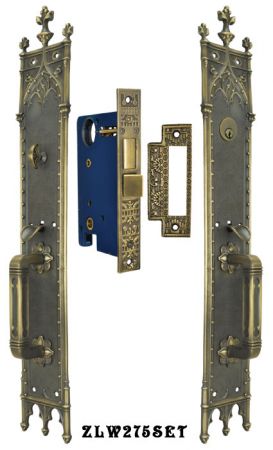

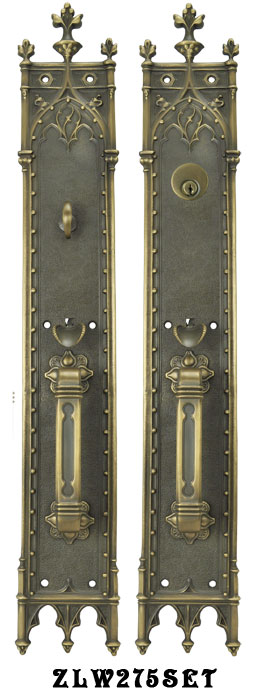

ZLW275SET-DK Victorian Gothic Style Amiens Large Entry Door Set In Antique Brass Finish {PICTURED}

ZLW275SET-OB Victorian Gothic Style Amiens Large Entry Door Set In Oil Rubbed Bronze Finish

An outstanding large thumb latch door plate entry set...the largest of our Amiens series.

Amiens, France was a region famous for its Gothic architecture.  These American hardware antiques were reproduced using Lost Wax casting for the finest details, then finished with an Antique Brass Finish similar to bronze.

The complete door set includes:

  • One Interior Door Plate with Turnlatch Function
  • One Exterior Door Plate
  • One Mortise Lock
  • One Cylinder Lock

Measurements:

  • Door Plates:  3 58" wide by 22 ¾" tall.
  • Lock Measurements:
    • Lock body measures 5 ½" tall by 3 58" deep.  1316" thickness.
    • Backset:  2 ½", including the thickness of the face plate.
    • Lock Face:  1" wide by 7 ½" long.
    • Catch Plate:  4 78" long by 1 78".
    • Distance from the center of the cylinder receiver to the thumb latch stem is 4 ¾".
    • Distance from the center of the bolt throw hole to the center of the door knob spindle hole is 2 ½".

Please see our Lock Cylinder Size Chart to determine the correct cylinder length for your door.

Mounting screws are provided for all pieces of hardware in this set.
