Art Nouveau Pierced Entry Double or French Door Set Locking Mortise (ZLW300DBS)
Price: $1436.00


Antique Brass Finish
Oil Rubbed Bronze Finish

Cylinder Length:

L-9CC 1" Cylinder
L-9C4 1 1/4" Cylinder
L-150S 1 1/2" Cylinder
L-175S 1 3/4" Cylinder

Set Door Handing:

Left Hand
Right Hand

Move mouse over image to Zoom..

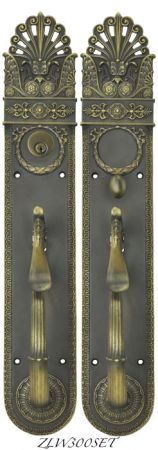

ZLW300DBS-DK  Antique Brass Finish Art Nouveau Style Pierced Yale Entry Door Set for French or Double Doors {PICTURED}

ZLW300DBS-OB  Oil Rubbed Bronze Finish Art Nouveau Style Pierced Yale Entry Door Set for French or Double Doors

Scarce reproduction entrance door plates made by Sargent, circa 1900.  Very nice idea incorporating the thumb latch into the handle design.

Lost Wax cast brass, darkened and lacquered.  Available in our hand-finished Antique Brass Finish or matte black Oil Rubbed Bronze Finish.

While the cylinder hole looks off-center, once a cylinder is installed, the heaviness of the top (cylinder plus thin wreath) is balanced by the thicker wreath at the bottom.

This is an Exterior Entry Set with Cylinder Lock for Double or French Doors.

The complete door set includes:

  • One Interior Door Plate with Turnlatch Function
  • One Exterior Door Plate
  • Two "Handle Only" Dummy Door Plates
  • One Mortise Lock
  • One Cylinder Lock


  • Door Plates:  20" tall x 3 ½" wide.
  • Mortise Lock:
    • Lock body measures 5 ½" tall by 3 58" deep.  1316" thickness.
    • Lock face is 1" wide by 7 ½" long.
    • Backset:  2 ½", including the thickness of the face plate.
    • Catch Plate is 4 78" long by 1 78".
    • Distance from the center of the cylinder receiver to the thumb latch stem is 4 ¾".
    • Distance from the center of the bolt throw hole to the center of the door knob spindle hole is 2 ½".

Please see our Lock Cylinder Size Chart to determine the correct cylinder length for your door.

Mounting screws are provided for all pieces of hardware in this set.

To stabilize and secure the dummy (or inactive) side of your double doors, we offer a number of Antique Reproduction Door Security Bolts on our website.
