Single Cylinder Lock, Cylinder Size Selection Charts

Uncertain of what size lock cylinder you need for your entry door?  The following tables should help.

[ Click Chart to enlarge ]

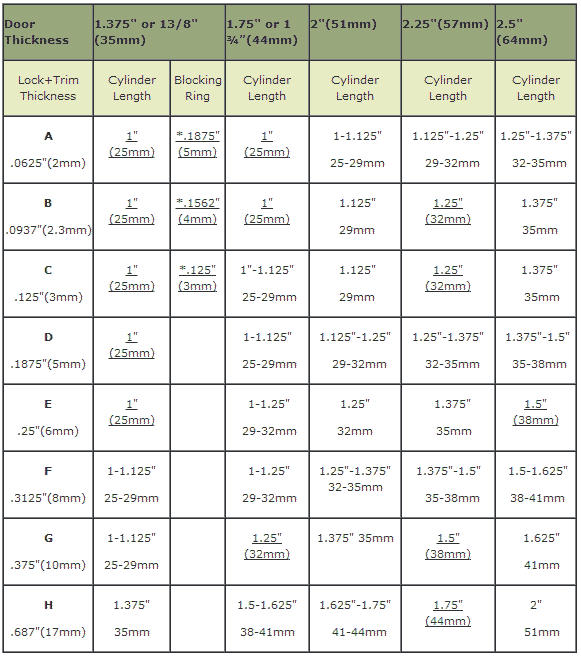

Single Lock Cylinder Size Chart (LOCK CHART)
[ Click Chart to enlarge ]
Single Lock Cylinder Size Chart (LOCK CHART)
Door Thickness Part no. &
Cylinder Length
1 1/4" L-9CC  :  1"
1 1/2" L-9CC  :  1"
1 5/8" L-9CC  :  1"
1 3/4" L-9C4  :  1 1/4"
2" L-9C4   :  1 1/4"
2 1/8" L-150S  :  1 1/2"
2 1/4" L-150S  :  1 1/2"
2 1/2" L-150S  :  1 1/2"
3" to 3 1/2" L-175S  :  1 3/4"

Door Thickness Part no. &
Cylinder Length
1 1/4" L-9CC  :  1"
1 1/2" L-9CC  :  1"
1 5/8" L-9CC  :  1"
1 3/4" L-9C4  :  1 1/4"
2" L-9C4   :  1 1/4"
2 1/8" L-150S  :  1 1/2"
2 1/4" L-150S  :  1 1/2"
2 1/2" L-150S  :  1 1/2"
3" to 3 1/2" L-175S  :  1 3/4"


We also make a cylinder with a decorative turnlatch, L-7500 =  1", L-7525 = 1 1/4", L-7550 = 1 1/2", and L-7575 = 1 3/4".
