Victorian Large Entry Door Set 24" Tall (L42SET)
Price: $646.00
Quantity:
Add to cart
Add to cart

Cylinder Length:
L-9CC 1" Cylinder
L-9C4 1 1/4" Cylinder
L-150S 1 1/2" Cylinder
L-175S 1 3/4" Cylinder
Set Door Handing:
Left Hand
Right Hand
Finish Option:
Polished Unlacquered Brass
Antique Brass Finish
Victorian Large Entry Door Set 24

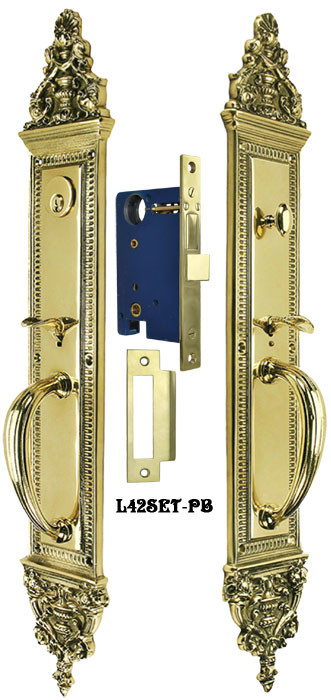

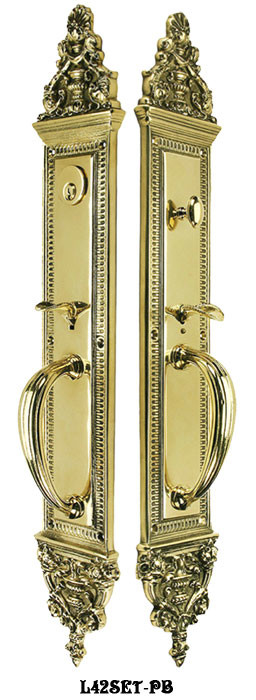

L42SET-PB Victorian Large Entry Door Set in Polished Un-lacquered Brass

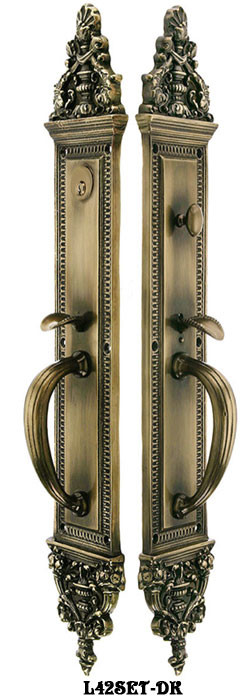

L42SET-DK Victorian Large Entry Door Set in Antiqued Brass



This Complete Entry Door Set ( One Door Only) is available in two finshes, Polished Un-lacquered brass, and Antiqued Brass.

The complete door set includes:

  1. Interior Door Plate
  2. Exterior Door Plate
  3. Mortise Lock
  4. Cylinder Lock. See our Lock Cylinder Size Chart to select the correct cylinder length for your door.

Backplates Measure  4" wide by 24"  long.

The distance from the center of the cylinder receiver to the thumb latch stem is 4 3/4".

Lock body measures 5 1/2" tall by 3 5/8" deep. 13/16" thickness.

Lock face is 1" wide by 7 1/2" long.

Backset is 2 1/2", including the thickness of the face plate.

Distance from the center of the bolt throw hole to the center of the door knob spindle hole is 2 1/2".

Catch plate is 4 7/8" long by 1 7/8".



Customers who bought this item also bought:

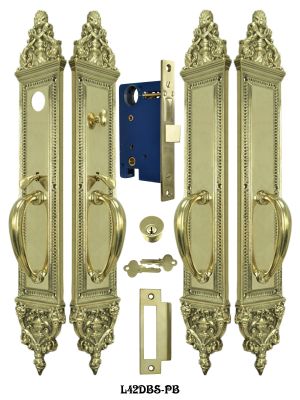

Victorian Large Double Entry Door Set (L42DBS-PB)
