L67SDL2 Polished Unlacquered Brass Vintage Style Complete Screen Door Latch Set

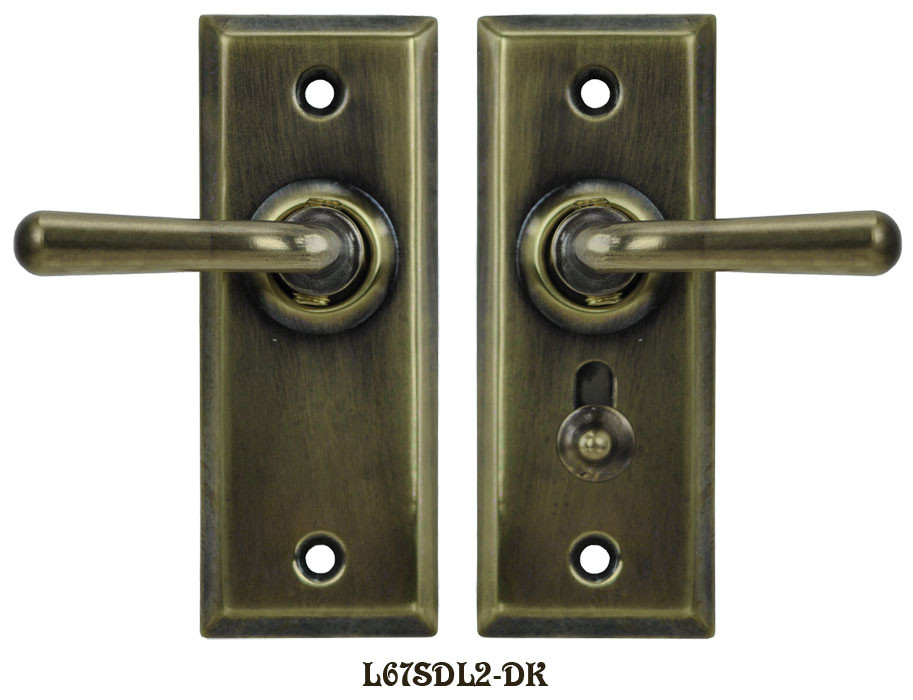

L67SDL2-DK Antique Brass Finish Vintage Style Complete Screen Door Latch Set {PICTURED}
L67SDL2-OB Oil Rubbed Bronze Finish Vintage Style Complete Screen Door Latch Set
All you need for a wooden screen door latch. Set fits doors up to 1 ½" to 2" thick.

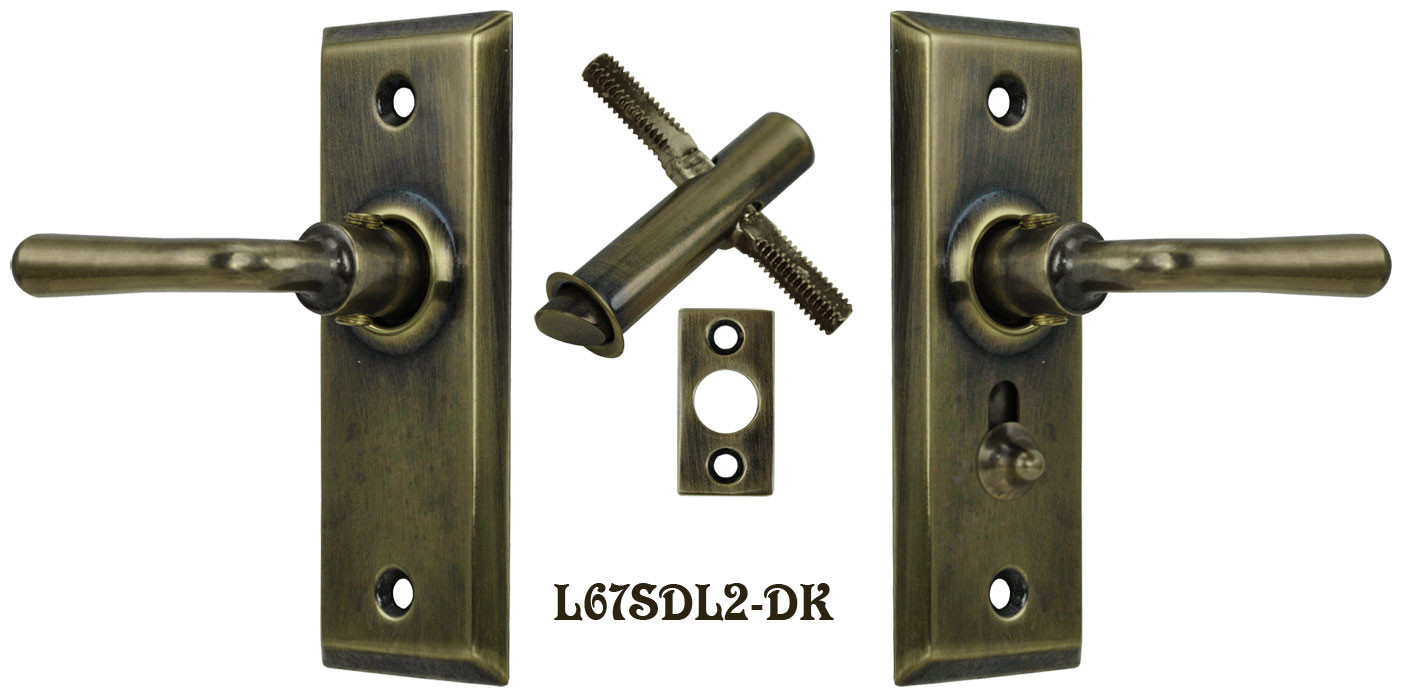

Each Set Includes:
-
Two Lever Handles (L-67SHL)
-
One Locking Screen Door Plate (L-67LP)
-
One Non-Locking Screen Door Plate (L-67PX)
-
One Mortised Screen Door Latch (L-67MB) with Spindle (L-S10)
Measurements:
-
Door Plates: 1 ½" wide x 4" tall.
-
Lever Handles: 1 ¾" long; each protrudes 1 3⁄8".
-
Screen Door Latch:
-
Barrel: 2 11⁄16" long overall.
-
Backset: 1 ¾"
-
Spindle Length: 3"
-
Spindle can be trimmed to fit thinner doors.
Installation: Drill a loose 5⁄8" diameter for the barrel.
