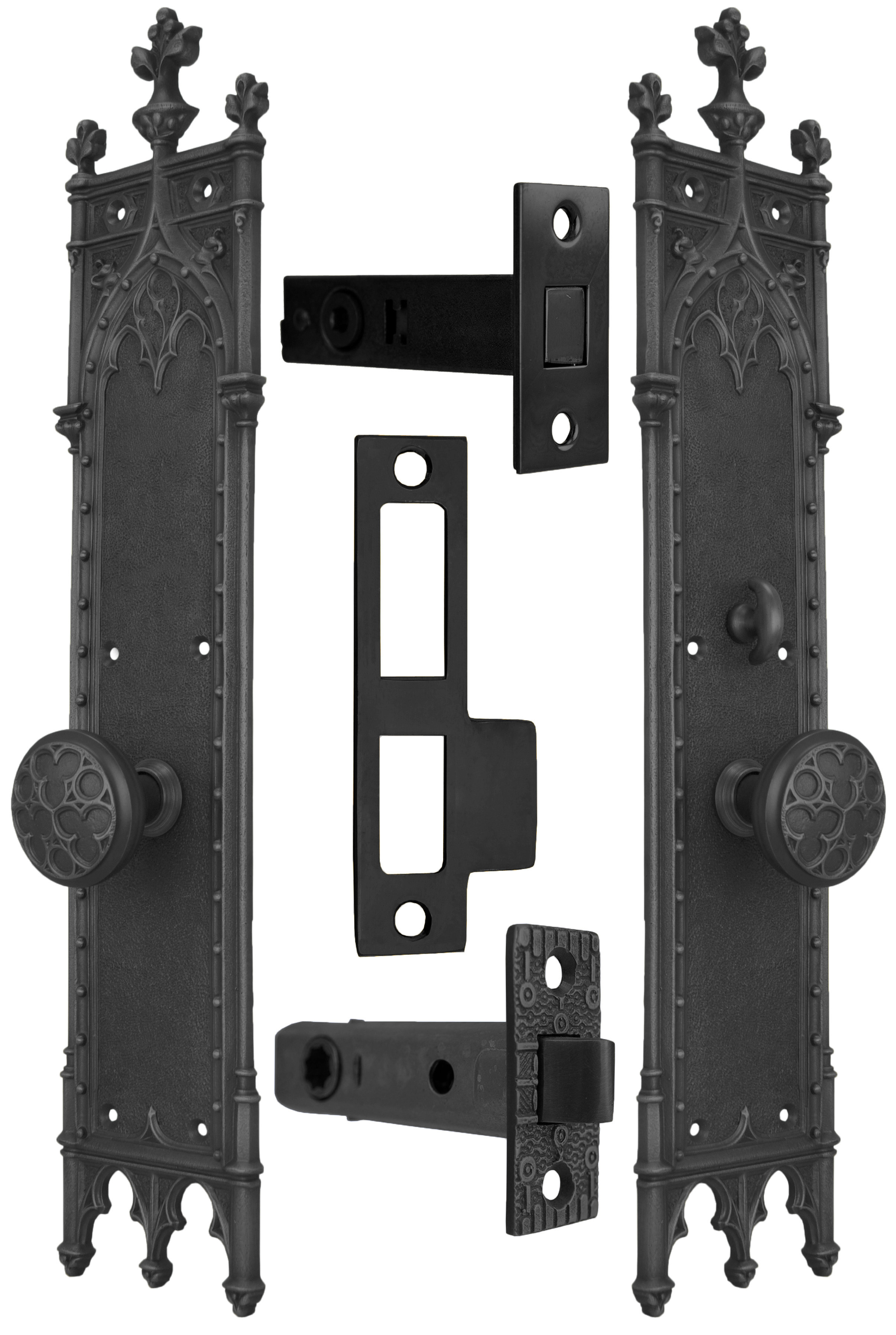

Large Gothic Amiens Interior Passage Set with Locking Turnlatch (Z270PTSET)
Price: $830.94


Antique Brass Finish
Oil Rubbed Bronze Finish

Move mouse over image to Zoom..

18 58" Tall Victorian Gothic Amiens
Tubular Door Set with Locking Privacy Turnlatch - 2 38" Backset

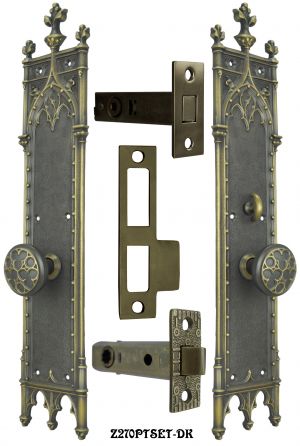

Z270PTSET-DK  Antique Brass Finish Large Gothic Amiens Interior Locking Passage Set

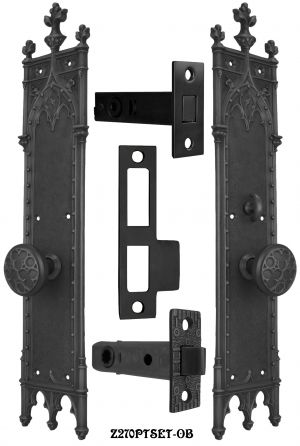

Z270PTSET-OB  Oil Rubbed Bronze Finish Large Gothic Amiens Interior Locking Passage Set

Cast in solid brass, using the Lost Wax casting method to preserve the details of the original. Amiens was a church and town in France famous for its Gothic architecture.

This set is an interior privacy set that locks from one side using a turnlatch.  Ideal for those who don't want to mortise out a door for a full mortise box.  Instead, this set comes with a tubular passage latch and a tubular deadbolt.

This complete door set is available in our hand-finished Antique Brass Finish, or our matte black Oil Rubbed Bronze Finish.

The Set Includes:

  • One Door Plate with Lower Knob Only Function
  • One Door Plate with Knob and Turnlatch Function
  • Two Doorknobs with the Connecting Spindle
  • One Tubular Passage Latch
  • One Tubular Deadbolt Latch
  • One Catchplate for Both Deadbolt and Passage Latch


  • Door Plates:  3 58" wide x 18 58" tall.
  • Doorknobs:  2 18" diameter; each projects 2 ¼".
  • Passage Latch:
    • Face Plate:  1" wide x 2 ¼" tall.
    • Backset:  2 38"
    • Latch can be installed by drilling a 7/8" hole, then recessing the wood for the latch face.
  • Tubular Deadbolt:
    • Face Plate:  1 116" wide x 2 ¼" tall.
    • Case Length:  3 ¼" overall.
    • Backset:  2 38"
  • Catchplate:  4 ½" tall x 1" wide (minus tongue).

Mounting screws are included with all pieces of hardware in this set.
