L67SDL3 Vintage Style Complete Screen Door Latch Set in Polished Brass

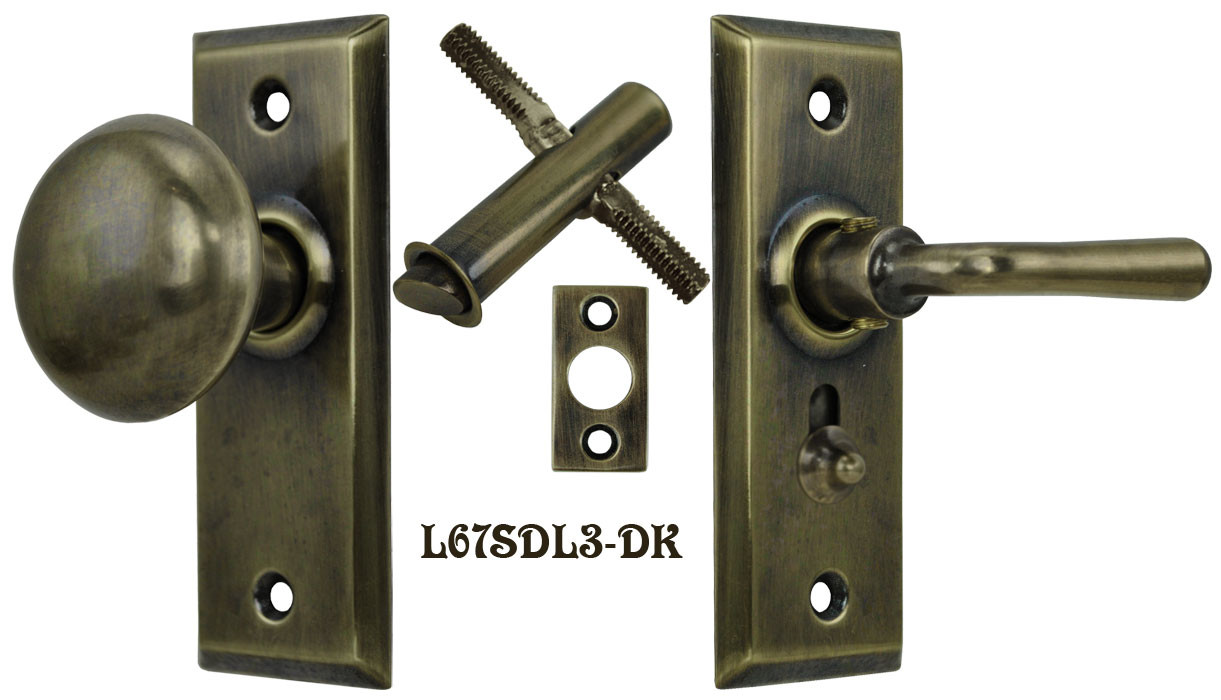

L67SDL3-DK Vintage Style Complete Screen Door Latch Set in Antique Brass Finish (Pictured)

L67SDL3-OB Vintage Style Complete Screen Door Latch Set in Oil Rubbed Bronze Finish

All you need for a wooden screen door latch. This Set Includes:

1. One Screen Doorknob (L-67K)  Knob diameter: 1" diameter by 1 3/4" tall.

2. One Lever Handle (L-67SHL) 1 3/4" long and protrudes 1 3/8".

3. One (L-67LP) Locking Door Plate: 1 1/2" wide x 4" tall.

4. One (L-67PX)Non Locking Door Plate:1 1/2" wide by 4" high

5. One L-67MB Mortised Screen Door Latch: Includes Spindle (L-S10)

To install, drill a loose 5/8" diameter for the barrel. Barrel is 2 11/16" long.

Backset is 1 3/4" for the cam knob or lever spindle

L-S10 - Screen Door Spindle: The L-S10 spindle is 3" long.
