Eastlake Door Plate Set with Locking Keyed Mortise Nickel Plated (L36MKKSET-NP)
Price:$251.50
Quantity:
Add to cart
Add to cart

Options:
Nickel Plated with 2 ¼" Backset
Nickel Plated with 2 ⅝" Backset
Set Door Handing
:
Right Hand

Left Hand

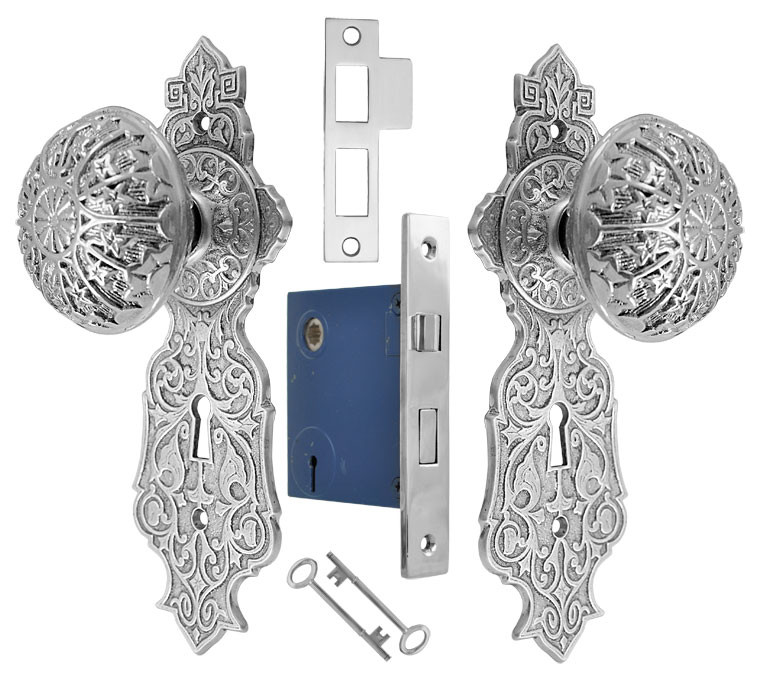

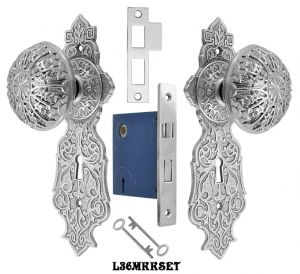

Eastlake Door Plate Set with Locking Keyed Mortise Nickel Plated (L36MKKSET-NP)

Eastlake Victorian Door Set with Skeleton Keyed Mortise Lock - Nickel Plated

L36MKKSET-NP1  Nickel Plated Door Set with 2 ¼" Backset Mortise Lock
L36MKKSET-NP2  Nickel Plated Door Set with 2 58" Backset Mortise Lock

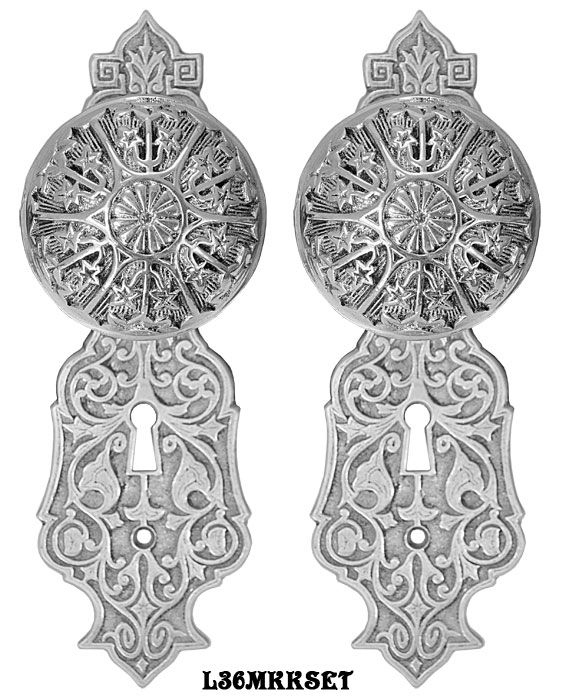

Cast from solid brass Eastlake doorplates, paired with our fabulously designed Eastlake doorknobs.

This is an interior mortise passage set which locks from both sides using a skeleton key.

Each Set Includes:

  • 2 Doorplates with Knob & Keyhole Function
  • 2 Doorknobs with the Connecting Spindle
  • 1 Mortise Lock with 2 Skeleton Keys (choice of 2 ¼" or 2 58" backset)

Measurements:

  • Doorplates:  2 58" wide x 7 ¾" tall.
  • Doorknobs:  2 ½" diameter; each projects 2 ¼".
  • Mortise Locks:
    • 2 ¼" Backset Lock:
      • Lock Body:  3 ¾" tall x 2 78" deep x 58" thick.
      • Faceplate:  1" wide x 6" tall; 316" thick.
      • Strike Plate:  4 ½" tall x 1" wide (plus tongue).
      • Distance from the center of the doorknob receiver to the center of the round keyhole bit is 2 ¼".
    • 2 58" Backset Lock:
      • Lock Body:  3 ¾" tall x 3 316" deep, and 58" thick.
      • Faceplate:  1" wide x 6" tall; 316" thick.
      • Strike Plate:  4 ½" tall x 1" wide (plus tongue).
      • Distance from the center of the doorknob receiver to the center of the round keyhole bit is 2 ¼".

Mounting screws are included with the hardware for this set.
