Art Nouveau Door Plate Set with Locking Keyed Mortise (L63MKSET3)
Price:$624.10
Quantity:
Add to cart
Add to cart

Options:
Antique Brass Finish with 2 ¼" Backset Mortise Lock
Antique Brass Finish with 2 ⅝" Backset Mortise Lock
Oil Rubbed Bronze Finish with 2 ¼" Backset Mortise Lock
Oil Rubbed Bronze Finish with 2 ⅝" Backset Mortise Lock
Two-Tone Black & Brass Finish with 2 ¼" Backset Mortise Lock
Two-Tone Black & Brass Finish with 2 ⅝" Backset Mortise Lock
Set Door Handing
:
Right Hand

Left Hand
Art Nouveau Door Plate Set with Locking Keyed Mortise (L63MKSET3)

Art Nouveau Privacy Door Set
with R&E Victorian Lady Portrait Doorknobs
and Skeleton Key Mortise Lock - Keyhole On One Side Only

L63MKSET3-DK1  Antique Brass Finish Door Set with 2 ¼" Backset Mortise Lock
L63MKSET3-DK2  Antique Brass Finish Door Set with 2 58" Backset Mortise Lock

L63MKSET3-OB1  Oil Rubbed Bronze Finish Door Set with 2 ¼" Backset Mortise Lock
L63MKSET3-OB2  Oil Rubbed Bronze Finish Door Set with 2 58" Backset Mortise Lock

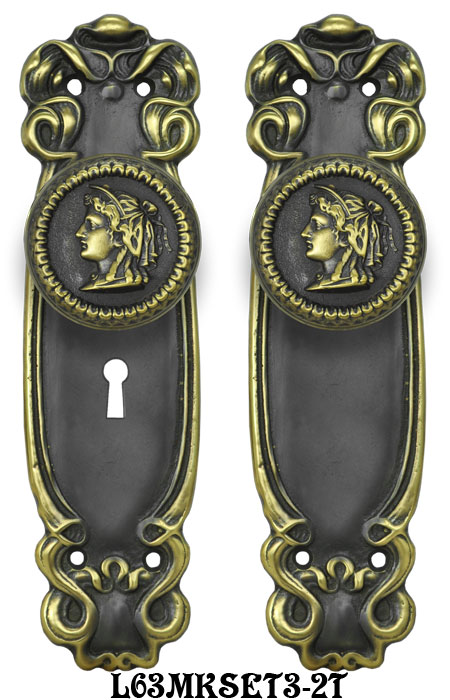

L63MKSET3-2T1  Two-Tone Black & Brass Finish Door Set with 2 ¼" Backset Mortise Lock {PICTURED}
L63MKSET3-2T2  Two-Tone Black & Brass Finish Door Set with 2 58" Backset Mortise Lock {PICTURED}

This lovely Art Nouveau Series is all solid cast brass.  Art Nouveau was popular from the late 1800's through the Edwardian times in the early 1900's.  Graceful, flowing lines that highlighted the beauty of nature distinguish the style.

This set comes complete with a pair of Victorian Lady profile doorknobs, originally designed by MCCC/R&E.  Molded directly from the original, which was one of the first four original patented Kreuzinger knobs (Design Pat: # 4099).

This is an interior mortise privacy set which locks from one side only using a skeleton key.

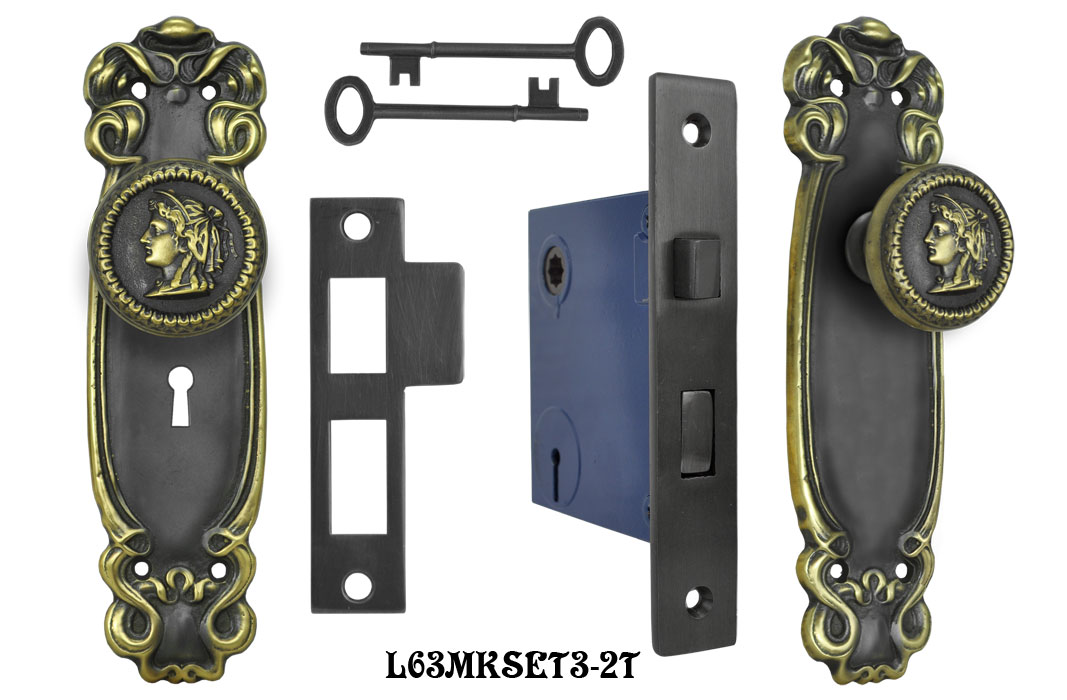

Each Set Includes:

  • 1 Doorplate with Knob & Keyhole Function
  • 1 Doorplate with Knob Only Function
  • 2 Doorknobs with the Connecting Spindle
  • 1 Mortise Lock with 2 Skeleton Keys (choice of 2 ¼" or 2 58" backset)

Measurements:

  • Doorplates:  2 ¾" wide x 10" tall.
  • Doorknobs:  2 38" diameter; each projects 2".
  • Mortise Locks:
    • 2 ¼" Backset Lock:
      • Lock Body:  3 ¾" tall x 2 78" deep x 58" thick.
      • Faceplate:  1" wide x 6" tall; 316" thick.
      • Strike Plate:  4 ½" tall x 1" wide (plus tongue).
      • Distance from the center of the doorknob receiver to the center of the round keyhole bit is 2 ¼".
    • 2 58" Backset Lock:
      • Lock Body:  3 ¾" tall x 3 316" deep, and 58" thick.
      • Faceplate:  1" wide x 6" tall; 316" thick.
      • Strike Plate:  4 ½" tall x 1" wide (plus tongue).
      • Distance from the center of the doorknob receiver to the center of the round keyhole bit is 2 ¼".

Mounting screws are included for each piece of hardware in this set.
