Z260MKSET-DK1  Antique Brass Finish with 2 ¼" Backset Mortise Lock
Z260MKSET-DK2  Antique Brass Finish with 2 ⁵⁄₈" Backset Mortise Lock

Z260MKSET-OB1  Oil Rubbed Bronze Finish with 2 ¼" Backset Mortise Lock
Z260MKSET-OB2  Oil Rubbed Bronze Finish with 2 ⁵⁄₈" Backset Mortise Lock

Amiens was a church and town in France famous for its Gothic Architecture.  Excellent quality lost-wax cast brass door plate set with superb detail!  This set is supplied with our beautiful Amiens design doorknobs for a complete presentation.

This door set is hand finished in a choice of our Antique Brass Finish (pictured) or our matte black Oil Rubbed Bronze Finish.

The interior mortise privacy set locks from one side only using a skeleton key.

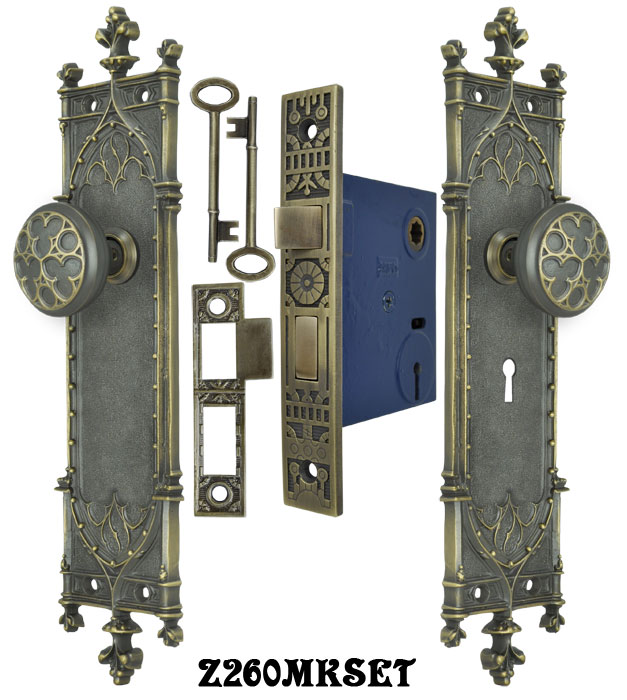

The Complete Set Includes:

• One Door Plate with Doorknob & Keyhole Function
• One Doorplate with Knob Only Function
• Two Doorknobs with the Connecting Spindle
• One Mortise Lock with 2 Skeleton Keys (choice of 2 ¼" or 2 ⁵⁄₈" backset)

Measurements:

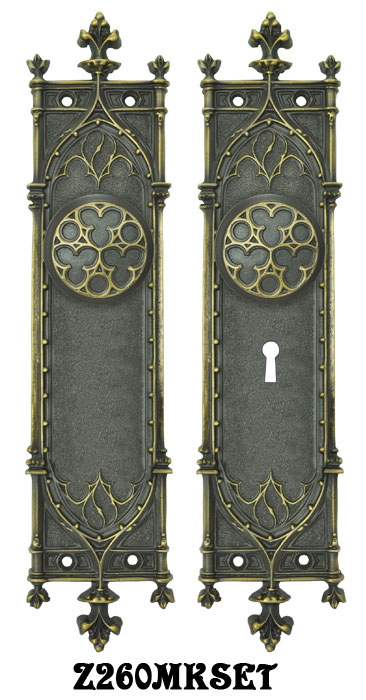

• Door Plates:  3" wide x 13 ⁵⁄₈" tall.
• Doorknobs:  2 ¹⁄₈" diameter; each projects 2 ¼".
• Mortise Locks:
  • 2 ¼" Backset Lock:
    • Lock Body:  3 ¾" tall x 2 ⁷⁄₈" deep x ⁵⁄₈" thick.
    • Faceplate:  1" wide x 6" tall; ³⁄₁₆" thick.
    • Strike Plate:  4 ½" tall x 1" wide (plus tongue).
    • Distance from the center of the doorknob receiver to the center of the round keyhole bit is 2 ¼".
  • 2 ⁵⁄₈" Backset Lock:
    • Lock Body:  3 ¾" tall x 3 ³⁄₁₆" deep, and ⁵⁄₈" thick.
    • Faceplate:  1" wide x 6" tall; ³⁄₁₆" thick.
    • Strike Plate:  4 ½" tall x 1" wide (plus tongue).
    • Distance from the center of the doorknob receiver to the center of the round keyhole bit is 2 ¼".

Mounting screws for the hardware are included with each set.
