Victorian Rococo Yale Pattern with Lever Handle Set with Locking Turnlatch (L15PTSET3)
Price:$300.14
Quantity:
Add to cart
Add to cart

Choose Lever Handle:
L15PTSET3
L15PTSET4
L15PTSET5
Finish:
Polished Unlacquered Brass
Antique Brass Finish
Oil Rubbed Bronze Finish

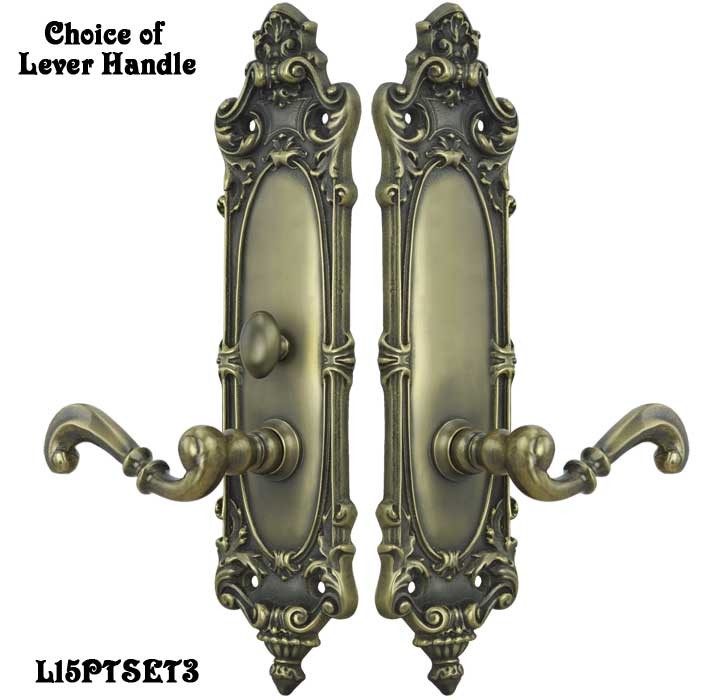

Victorian Rococo Yale Pattern with Lever Handle Set with Locking Turnlatch (L15PTSET3)

Rococo Yale Pattern Lever Handle Tubular Door Set
with Locking Privacy Turnlatch - 2 38" Backset

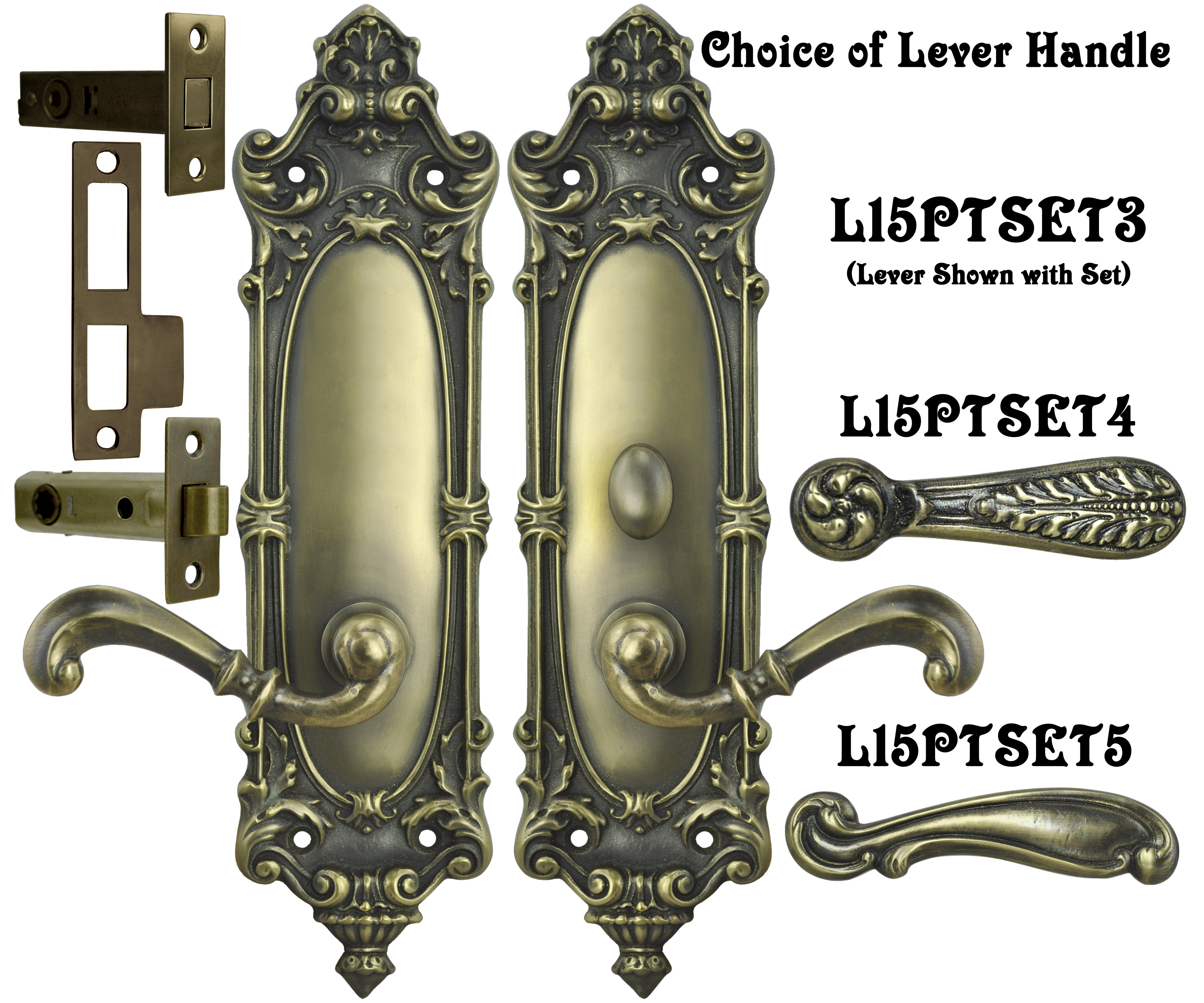

Please See 1st Photo for Lever Handle Options...Make Selection Using the Options Menu Above

Beautiful Yale Pattern of the Rococo Revival Victorian era, paired with well-detailed Gothic doorknobs.  Solid yellow brass with fine details retained through lost wax casting.

This interior privacy set locks from one side using a turnlatch.  This set is ideal for those who don't want to mortise out a door for a full mortise box.  Instead, this set comes with a tubular passage latch and a tubular deadbolt.

This complete door set is available in Polished Unlacquered Brass, or hand-finished in our Antique Brass Finish {Pictured}.  Also available in our matte black Oil Rubbed Bronze Finish.

The Set Includes:

  • One Door Plate with Lower Knob Only Function
  • One Door Plate with Knob and Turnlatch Function
  • Two Doorknobs with the Connecting Spindle
  • One Tubular Passage Latch
  • One Tubular Deadbolt Latch
  • One Catchplate for Both Deadbolt and Passage Latch

Measurements:

  • Door Plates:  3 38" wide by 12 ½" tall.
  • Lever Handles:
    • SET3:  4 38" long; projects 2 38".  Base diameter is ¾".
    • SET4:  3 ¾" handle length x 1" width by 2 ¼" projection.  Base diameter is 58".
    • SET5:  4 38" handle length x 1" width by 2 18" projection.  Base diameter is 58".
  • Passage Latch:
    • Face Plate:  1" wide x 2 ¼" tall.
    • Backset:  2 38"
    • Latch can be installed by drilling a 7/8" hole, then recessing the wood for the latch face.
  • Tubular Deadbolt:
    • Face Plate:  1 116" wide x 2 ¼" tall.
    • Case Length:  3 ¼" overall.
    • Backset:  2 38"
  • Catchplate:  4 ½" tall x 1" wide (minus tongue).

Mounting screws are included with all pieces of hardware in this set.
