Victorian Heraldic Door Plate with Pavia Lion Knob Set and Locking Turnlatch (L26PTSET2)
Price:$973.79
Quantity:
Add to cart
Add to cart

Options:
Antique Brass Finish
Oil Rubbed Bronze Finish
Victorian Heraldic Door Plate with Pavia Lion Knob Set and Locking Turnlatch (L26PTSET2)

Victorian Heraldic Door Plates & Pavia Lion Head Oval Doorknobs
Tubular Door Set with Locking Privacy Turnlatch - 2 38" Backset

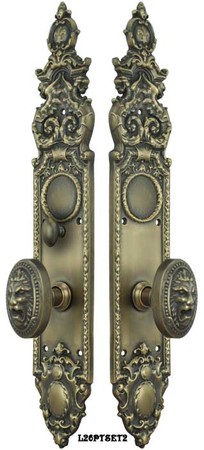

L26PTSET2-DK  Antique Brass Finish Victorian Heraldic Door Set w/ Locking Turnlatch {PICTURED}

L26PTSET2-OB  Oil Rubbed Bronze Finish Victorian Heraldic Pattern Door Set w/ Locking Turnlatch

Victorian style heraldic door plates, paired with roaring lion doorknobs by Corbin from their circa 1900 catalog, called the Pavia Pattern.  Doorplates and doorknobs are lost wax cast in solid brass.

This set is an interior privacy set that locks from one side using a turnlatch.  Ideal for those who don't want to mortise out a door for a full mortise box.  Instead, this set comes with a tubular passage latch and a tubular deadbolt.

This complete door set is available in our hand-finished Antique Brass Finish {Pictured}, or our matte black Oil Rubbed Bronze Finish.

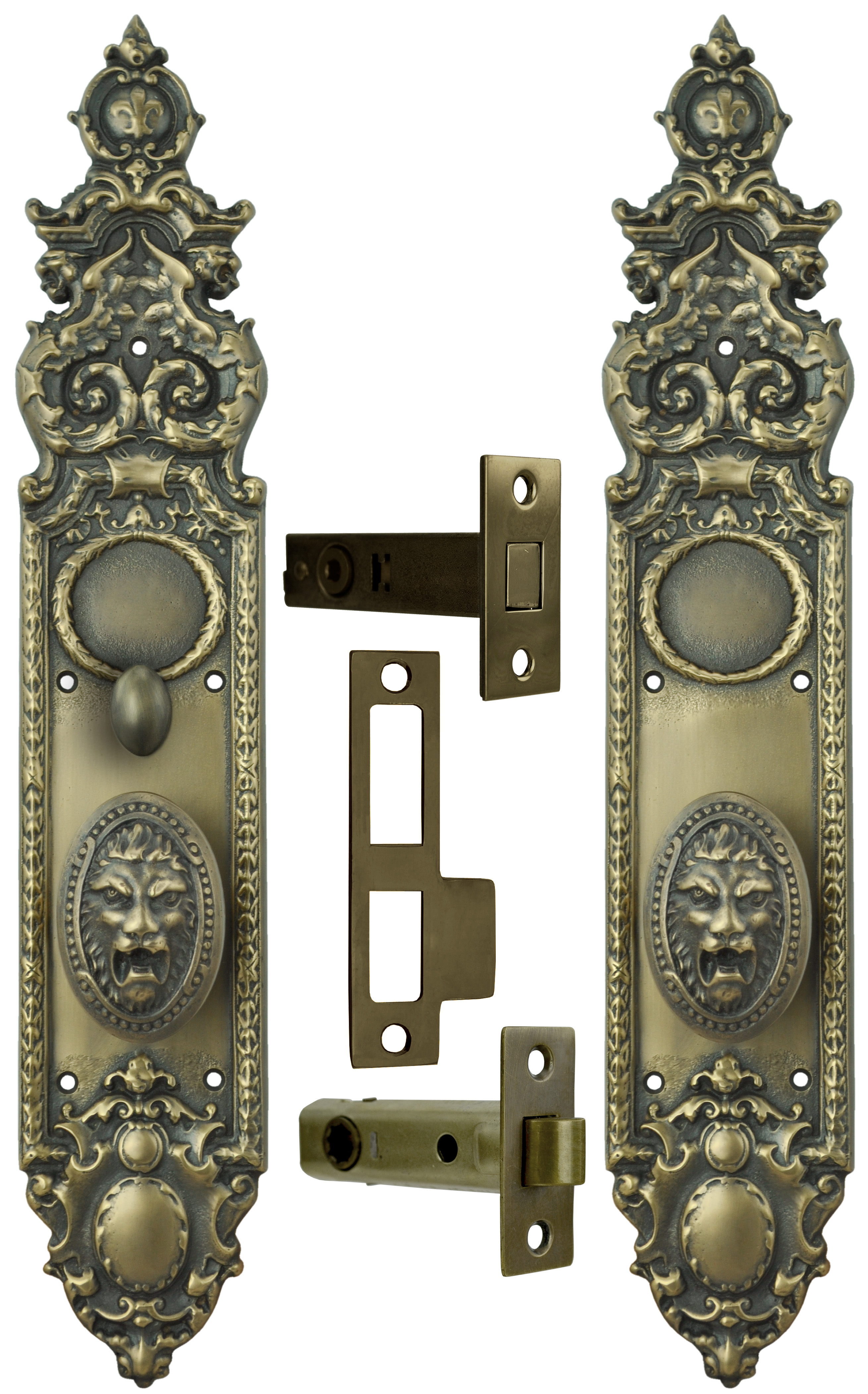

The Set Includes:

  • One Door Plate with Lower Knob Only Function
  • One Door Plate with Knob and Turnlatch Function
  • Two Doorknobs with the Connecting Spindle
  • One Tubular Passage Latch
  • One Tubular Deadbolt Latch
  • One Catchplate for Both Deadbolt and Passage Latch

Measurements:

  • Door Plates:  3 18" wide x 17" tall.
  • Doorknobs:  2" wide x 2 78" tall;  Each projects 2 38".
  • Passage Latch:
    • Face Plate:  1" wide x 2 ¼" tall.
    • Backset:  2 38"
    • Latch can be installed by drilling a 7/8" hole, then recessing the wood for the latch face.
  • Tubular Deadbolt:
    • Face Plate:  1 116" wide x 2 ¼" tall.
    • Case Length:  3 ¼" overall.
    • Backset:  2 38"
  • Catchplate:  4 ½" tall x 1" wide (minus tongue).

Mounting screws are included with all pieces of hardware in this set.
