Art Nouveau 2 Tone Double Door Entry Set (L63DBS4)
Price:$1,294.20
Quantity:
Add to cart
Add to cart

Cylinder Length:
L-9CC 1" Cylinder
L-9C4 1 1/4" Cylinder
L-150S 1 1/2" Cylinder
L-175S 1 3/4" Cylinder
Set Door Handing
:
Right Hand

Left Hand
Art Nouveau 2 Tone Double Door Entry Set (L63DBS4)

L63DBS4 Art Nouveau Double Door Entry set in Two Tone Black and Brass

This lovely Art Nouveau Series is all solid cast brass. Art Nouveau was popular from the late 1800's through Edwardian times of the early 1900's. Graceful, flowing lines that highlighted the beauty of nature distinguish the style.



This is an Exterior Entry with Cylinder Lock set.

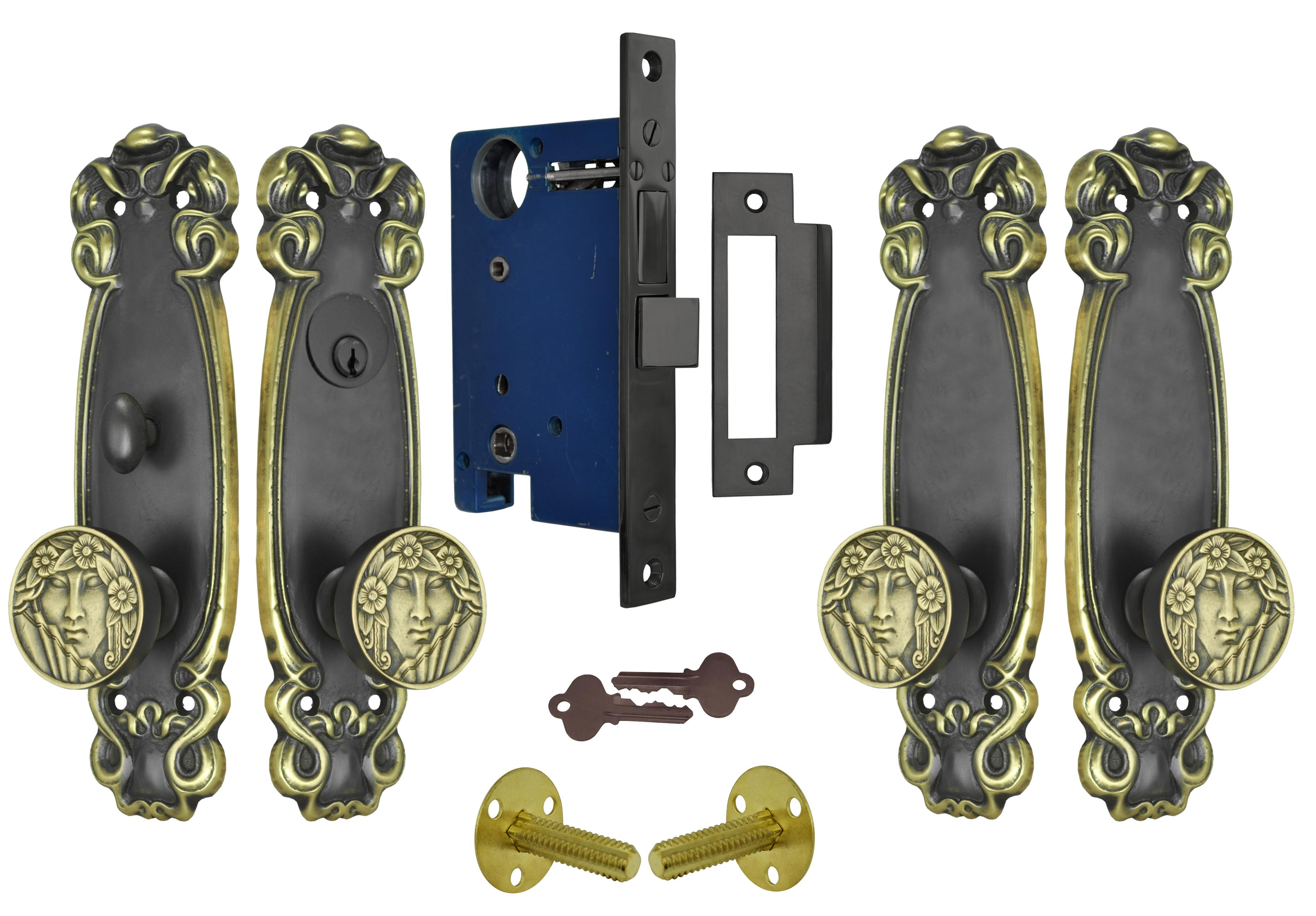

The complete door set includes:

  1. Interior Door Plate
  2. Exterior Door Plate
  3. Two Knob Only Door Plates
  4. Two Dummy Spindles
  5. Mortise Lock with connecting spindle
  6. Four Doorknobs
  7. Cylinder Lock: See our Lock Cylinder Size Chart to select the correct cylinder length for your door.

Measurements:

Door Plates: 2 3/4" wide by 10" tall.

Lock body measures 5 1/2" tall by 3 5/8" deep. 13/16" thickness.

Lock face is 1" wide by 7 1/2" long.

Backset is 2 1/2", including the thickness of the face plate.

Distance from the center of the bolt throw hole to the center of the door knob spindle hole is 2 1/2".

Catch plate is 4 7/8" long by 1 7/8".
